Masterflex L/S PTFE-Diaphragm Pump Heads, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07090-42 | - | MasterFlex MFLX07090-42 PUMP HEAD 800ML/MIN PTFE ea | 재고문의 | ea | 1,430,000원 | - | 1,573,000원 | |
| MFLX07090-62 | - | MasterFlex MFLX07090-62 PUMP HEAD 100ML/MIN PTFE ea | 재고문의 | ea | 0원 | - | 0원 | |

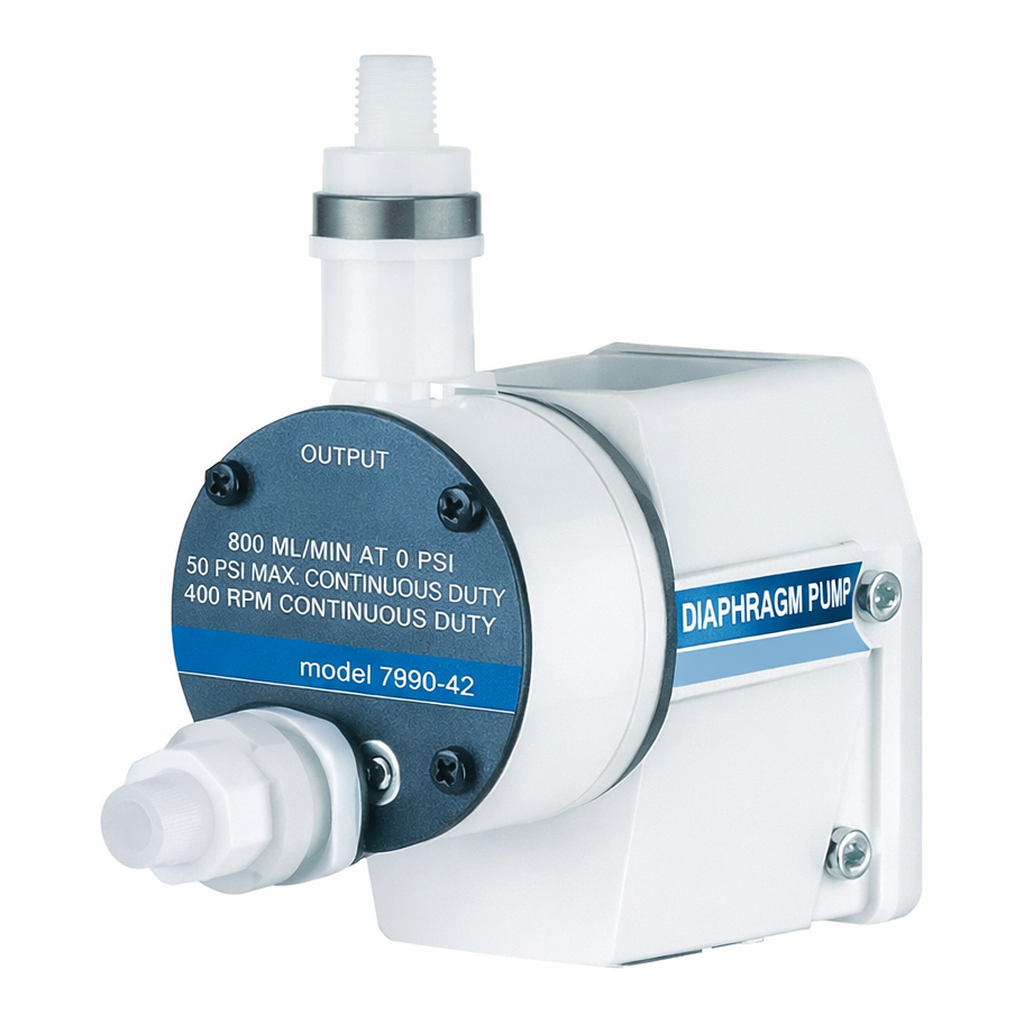

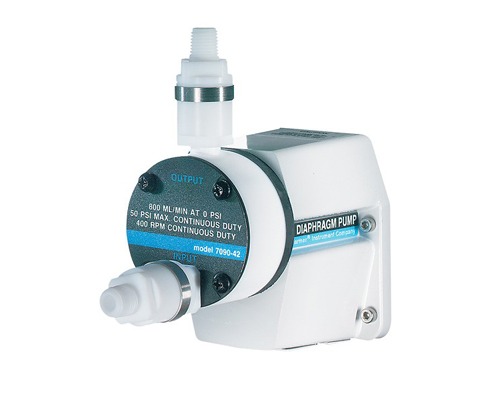

L/S® PTFE-Diaphragm Pump Heads
Ideal for accurate chemical feed/metering and high-purity, high-pressure applications, or both
Features
· Turns a L/S drive into a chemically inert diaphragm pump—PTFE material resists even the most aggressive chemicals
· High metering accuracy—maintain ±2% repeatability
· Self-priming—wet or dry
· Intermittent pressure capabilities:maintains consistent flow performance up to 100 psi (6.9 bar)
· Compatible with L/S drives that accept two or more pumpheads;recommended operating speed range is 40 to 400 rpm
| Specifications |  |
| Repeatability | ±2% |
| Max fluid temperature | 149°F (65°C) |
| Drive requirements | minimum 1⁄10 hp |
| Cracking pressure | <1 psi (68 mbar) |
| Wetted parts | PTFE diaphragm, body, valve seat, and spring; PTFE ball check in 07090-42, borosilicate glass ball check in 07090-62 |
| Dimensions (W x H x D) | 3x 6 x 61⁄2` (7.6 x 15.2 x 16.5 cm) |
| Flow rate at 40 to 400 rpm |
Max pressure, psi (bar) | Metering pressure range |
Max suction lift | Max dead volume |
Intake/discharge ports |
Catalog number |
|||
| mL/min | GPH | Continuous | Intermittent | Dry | Wet | ||||
| 80 to 800 | 1.3 to 12.7 | 50 (3.4) | 75 (5.0) | 3 to 50 psi (0.2 to 3.4 bar) |
24` (61 cm) | 16 ft (4.9 m) | 16 mL | 1⁄4` NPT(M) | GY-07090-42 |
| 10 to 100 | 0.16 to 1.6 | 75 (5.0) | 100 (6.9) | 10` (25.4 cm) | 10 ft (3 m) | 2 mL | 1⁄8` NPT(M) | GY-07090-62 |
Accessories
GY-07090-43 Service kit for 07090-42; includes diaphragm, heck valves, installation tool and instructions
GY-07090-45 Check valve for 07090-42
GY-07090-63 Service kit for 07090-62; includes diaphragm, heck valves, installation tool and instructions
GY-07090-65 Check valve for 07090-62
