Masterflex L/S Multichannel Cartridge Pump Head with 3-Rollers, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX07519-06 | - | MasterFlex MFLX07519-06 PUMPHEAD MFLEX 8-CHANNEL 4ROLL ea | 재고문의 | ea | 1,313,000원 | - | 1,444,300원 | |
| MFLX07519-05 | - | MasterFlex MFLX07519-05 PUMPHEAD MFLEX 8-CHANNEL 3ROLL ea | 재고문의 | ea | 1,219,000원 | - | 1,340,900원 | |
L/S® Multichannel Cartridge Pump Heads
Get synchronous flow rates
Features

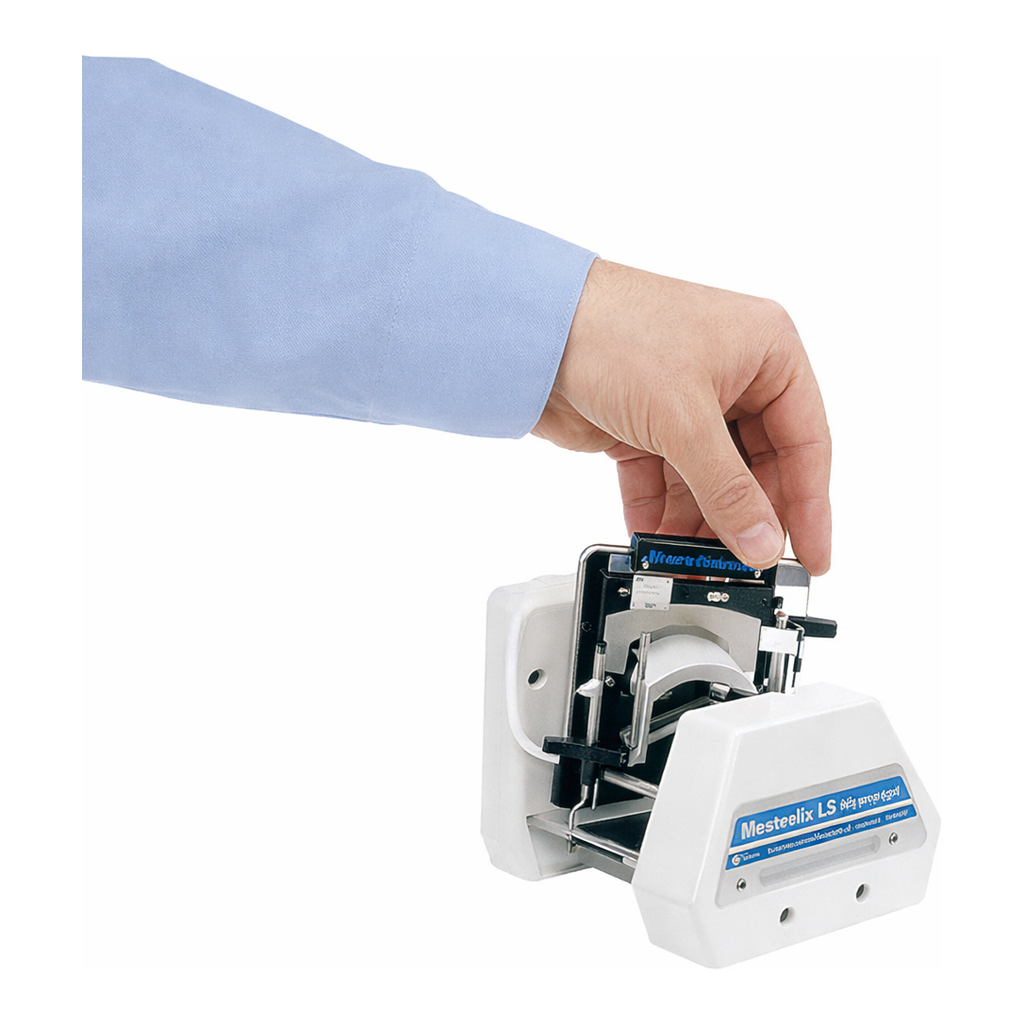

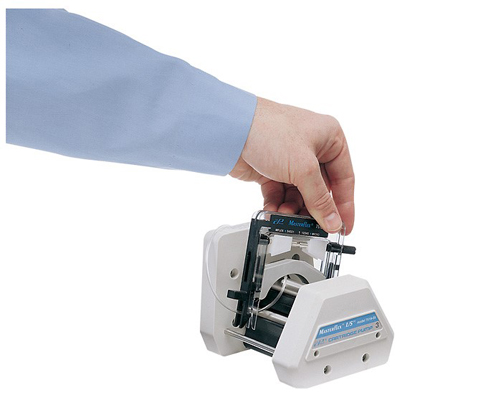

· Cartridges snap in and out for fast tubing changes—no need to remove pump head from the drive
· Load pump heads with 1 to 8 cartridges
· Mix large and small cartridges—one large cartridge occupies the same space as two small ones
· Cartridge heads are available with three or four rollers;the greater the number of rollers, the lower the pulsation in the flow
· Require drives with a minimum of 1⁄10 hp and a maximum of 600 rpm
| A. 8-Channel, 3-Roller Pump Head 07519-05 · Flow rates: 0.050 to 1700 mL/min · Number of cartridges: 1 to 8 small, 1 to 4 large · Drive requirements: 1⁄10 hp min, 600 rpm max B. 8-Channel, 4-Roller Pump Head 07519-06 (not shown) · Flow rates: 0.047 to 1400 mL/min · Number of cartridges: 1 to 8 small, 1 to 4 large · Drive requirements: 1⁄10 hp min, 600 rpm max What`s included: mounting hardware and hex key tool. |
 |
| Flow Rates per Channel (mL/min) with L/S® Precision Pump Tubing |  |
| Key letter |
Pump head model no. |
Number of rollers |
Pump head gear ratio |
Drive rpm |
L/S® precision pump tubing (flow rate per channel) | ||||
| L/S 13 | L/S 14 | L/S 16 | L/S 25 | L/S 17* | |||||
| A | 07519-05 | 3 | 1:1 | 6 to 600 | 0.30 to 30 | 1.3 to 130 | 4.6 to 460 | 10 to 1000 | 17 to 1700 |
| 1 to 100 | 0.050 to 5 | 0.21 to 21 | 0.76 to 76 | 1.7 to 170 | 2.8 to 280 | ||||
| B | 07519-06 | 4 | 1:1 | 6 to 600 | 0.28 to 28 | 1.2 to 120 | 3.8 to 380 | 8.3 to 830 | 14 to 1400 |
| 1 to 100 | 0.047 to 4.7 | 0.20 to 20 | 0.63 to 63 | 1.4 to 140 | 2.3 to 230 |
*Only silicone and C-Flex® tubing formulations are recommended for L/S 17.
Flow Rates per Channel in mL/min with Two-Stop Microbore Pump Tube Sets
| Key letter |
Pump head model no. |
Number of rollers |
Pump head gear ratio |
Drive rpm |
Two-stop microbore tube sets (flow rate per channel) | |||
| 0.89 mm ID | 1.42 mm ID | 2.06 mm ID | 2.79 mm ID | |||||
| A | 07519-05 | 3 | 1:1 | 6 to 600 | 0.44 to 44 | 1.0 to 100 | 2.2 to 220 | 3.8 to 380 |
| 1 to 100 | 0.074 to 7.4 | 0.17 to 17 | 0.37 to 37 | 0.63 to 63 | ||||
| B | 07519-06 | 4 | 1:1 | 6 to 600 | 0.44 to 44 | 1.0 to 100 | 2.2 to 220 | 3.8 to 380 |
| 1 to 100 | 0.074 to 7.4 | 0.17 to 18 | 0.37 to 37 | 0.63 to 63 |
| Pump heads | Cartridges | |||||
| Key letter |
Number of rollers |
Pump head gear ratio |
Max no. of cartridges‡ | Small | Large | |
| Small | Large | |||||
| A | 3 | 1:1 | 8 | 4 | GY-07519-80 (fits microbore two-stop tube sets >0.44 mm ID & L/S 13, L/S 14) |
GY-07519-70 (fits L/S 14, L/S 16, L/S 25, L/S 17†) |
| B | 4 | 1:1 | 8 | 4 |
†Only silicone and C-Flex® tubing formulations are recommended for L/S® 17.
‡For pump heads that accept both sizes, small and large cartridges can be mixed; 2 small = 1 large.
