Masterflex L/S Standard Pump Heads for Precision Tubing, Avantor

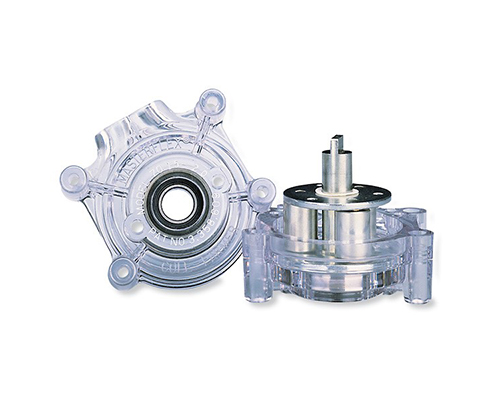

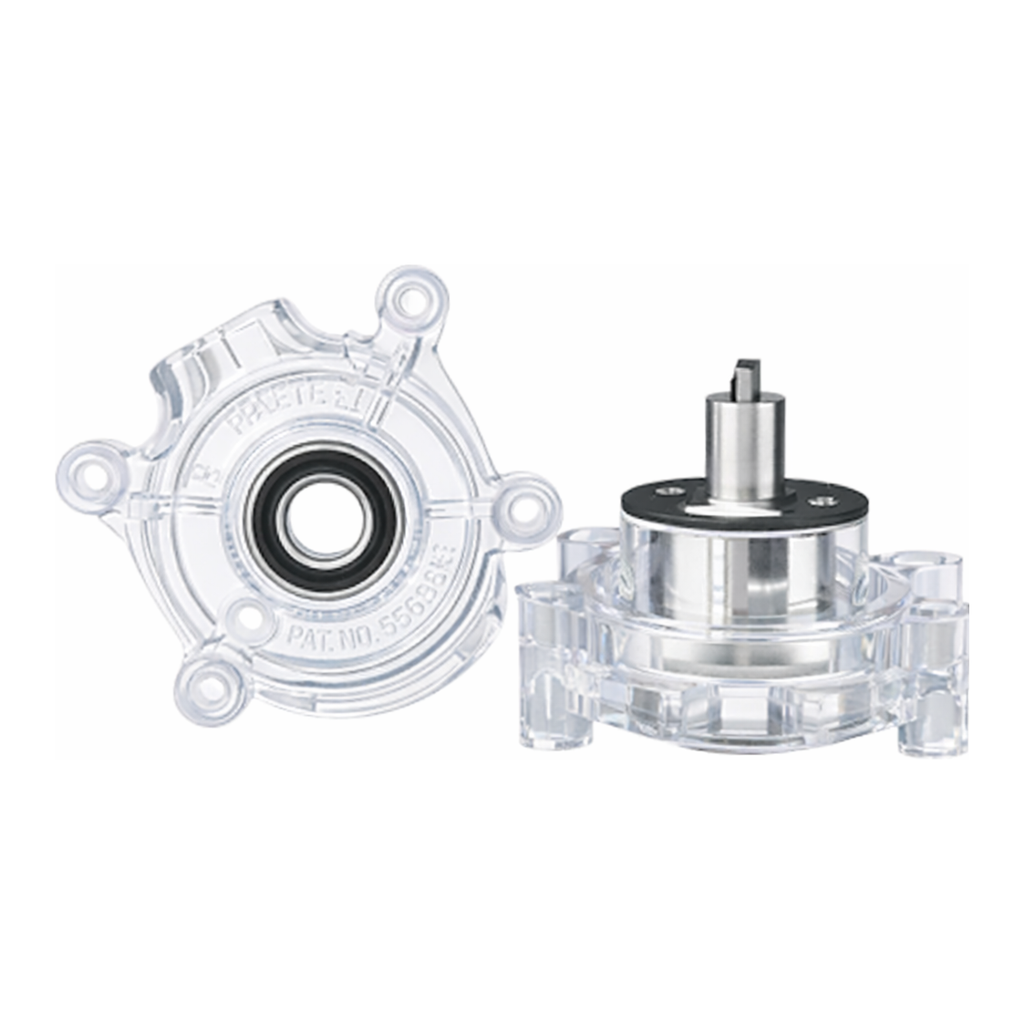

L/S® Standard Pump Heads
Ideal for accurate and repeatable fluid transfer applications

**
Features**

· Available with PC housing with CRS or SS rotor, or PPS housing with SS rotor
· PC housing allows you to see pump in operation; PPS housing and SS rotors have excellent chemical resistance

A. Standard Pump Heads for Precision Tubing
· Flow rates: 0.001 to 2300 mL/min
· Perfect for common fluid transfer applications
· Select a pump head for one of the following precision tubing sizes: L/S 13, L/S 14, L/S 16, L/S 17, L/S 18

B. Standard Pump Heads for High-Performance Precision Tubing
· Flow rates: 0.033 to 2900 mL/min
· Accepts our high-performance precision tubing—choose these pump heads for better pressure generation, suction lift, viscous fluid transfer, and longer tubing life
· Select a pump head for one of the following high-performance tubing sizes:L/S 15, L/S 24, L/S 35, L/S 36

†PC = polycarbonate PPS = polyphenylene sulfide CRS = cold-rolled steel SS = stainless steel
‡Maximum system pressure = L/S 13, L/S 14, L/S 15, L/S 16, L/S 24: 40 psi (2.7 bar); L/S 17, L/S 36: 20 psi (1.4 bar); L/S 18: 15 psi (1.0 bar); L/S 35: 35 psi (2.4 bar)

​

​Mounting Hardware
Stack up to four L/S Standard pump heads on one drive
(see drive specifications for recommended number of heads). Hardware is stainless steel.​
