■ More Quiet(70dB), Clean & Remote Controlled(option) 고성능 균질기
■ 본체만의 가격이며, Tool 및 기타 Accessories는 별도
■ 본체만 구매 시 분해툴킷 미포함이며 별도 구매해야함
■ Dispersing Tool 구매 시 분해툴킷 포함(S25D-10G-KS 및 S25D-14G-KS에는 미포함)
■ T25 Easy Clean Digital Package : T25 Easy Clean Digital, R182, R1822, RH3, S25N-25G
■ T25 Easy Clean Control Package : T25 Easy Clean Control, R182, R1822, RH3, S25N-25G
■ Motor Protection 기능 : 모터 과부하 방지
■ Quick-Connect Coupling 채용으로 Tool 교체에 용이
■ Rotating Knob을 통한 속도 조절
■ 다양한 범위의 Dispersing Tool 제공
■ LED Digital Display : Speed & Timer
■ 230V, 50/60 Hz
■ T25 Easy Clean Control : Integrated Temperature Measurment
- S25EC-T-C18G-ST Tool에 내장된 RFID 통해 실시간 온도측정과 시간 검측이 가능함
■ IKA
| | | | |
| --- | --- | --- | --- |중형 균질기
| Cat. No | Model | Type | 사용 가능 용량 |
| --- | --- | --- | --- |
| H01-05-141 | 25002560 | T25 Easy Clean Digital | 1 ~ 2000 ml |
| H01-05-143 | 25002500 | T25 Easy Clean Control |
|
|
|
| Type |

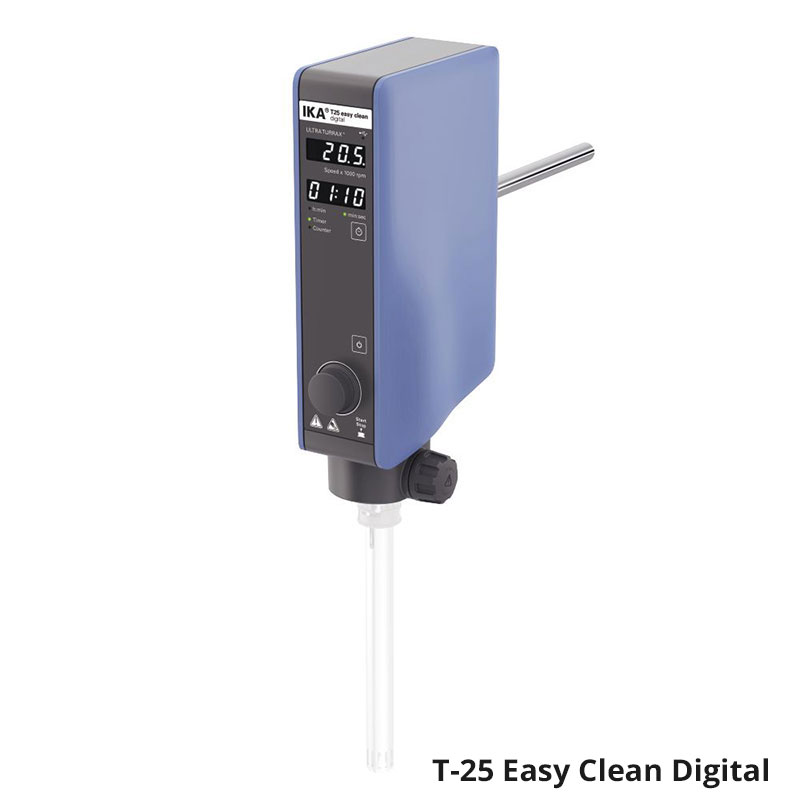

T25 Easy Clean Digital |
T25 Easy Clean Control |
| --- |
--- |
--- |
| Motor Rating in/out |
500W / 400W |
|
| --- |
--- |
--- |
| Volume Range |
1 ~ 2000 ml (H2O) |
|
| Max. Viscosity |
5000 mPas |
|
| Speed Range |
3000 ~ 25000 rpm |
|
| Speed Control |
Stepless |
|
| Speed display |
LED |
|
| Protection Class |
IP30 |
|
| Extension Arm |
od13×L160 mm |
|
| Size |
W89×D161×H270 mm |
|
● Easy Clean : 툴 분해 없이 툴을 청소할 수 있음
Tool/Dispersing Element for T25 easy clean
| Cat. No. |
H01-05-662 |
H01-05-663 |
H01-05-665 |
H01-05-666 |
H01-05-667 |
H01-05-668 |
| Model |
25007399 |
25007398 |
25002590 |
25007215 |
25002595 |
25007199 |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Type |
S 25 EC-C-18G-ST |
S 25 EC-T-C-18G ST |
S25EC-C-25G-ST |
S25EC-C-25F |
S25EC-T-C-25G-ST |
S25EC-T-C-25F |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Working Range |
10 ~ 1500 ml |
|
50 ~ 2000ml |
100 ~ 2000ml |
50 ~ 2000ml |
10 ~ 2000ml |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Sator Diameter |
18 mm |
|
25 mm |
|
|
|
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Rotor Diameter |
13.4 mm |
|
20 mm |
18 mm |
20 mm |
18 mm |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Immersion min/max |
35 / 150 mm |
50 / 150 mm |
35 / 150 mm |
|
45 / 150 mm |
|
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Shaft Length |
191 mm |
|
|
|
|
|
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Ultimate Suspension |
10 - 50 µm |
|
15 - 50 um |
5 - 25 um |
15 - 50 um |
5 - 25 um |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Ultimate Emulsion |
1 - 10 um |
|
|
1 - 5 um |
1 - 10 um |
1 - 5 um |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Max. Temperature |
180 ℃ |
120 ℃ |
180 ℃ |
|
120 ℃ |
|
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| 재질 |
AISI 316L, Ceramic |
|
|
|
|
|
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Cat. No. |
H01-05-661 |
| Model |
25006310 |
| --- |
--- |
| Type |
WICO T25 Easy Clean Control |
| --- |
--- |
| Working Time |
15 h |
| --- |
--- |
| Charging Time |
4.5 h |
| --- |
--- |
| Speed / Timer Display |
TFT |
| --- |
--- |
| Timer setting range |
0.02 ~ 6000 min |
| --- |
--- |
| Battery Type |
Lithium-Polymer |
| --- |
--- |
| Size |
W71xD74xH151 mm |
| --- |
--- |
| Protection Class |
IP 40 |
| --- |
--- |
Optional Clamp for T25
| Cat. No |
Model |
Type |
Stand Rod |
Extension Arm |
| H01-05-925 |
3008600 |
RH3 |
Strap |
봉 Φ8 ~ 16 mm, Φ40 ~ 300 mm용 |
| H01-05-930 |
3159000 |
RH5 |
Clamp |
봉 Φ25 ~ 36 mm, Φ40 ~ 300mm용 |
| H01-05-940 |
2657700 |
R182 |
Φ6 ~ 16 mm |
Φ6 ~ 16 mm |
Optional Accessory
| Cat. No |
Model |
Type |
사용 가능 용량 |
| H01-05-690 |
25001829 |
Tool Kit |
Flat key P |
| H01-05-692 |
25001830 |
Shaft key |
|
Tool kit for T10, T25 Digital Homogenizer
| Cat. No |
Model |
Type |
| H01-05-656 |
3754000 |
Silentstream |
| H01-05-657 |
20003013 |
TS 25-3 Cleaning Tool |
| H01-05-854 |
3452500 |
S 18/25-ET50 Disposable Tube |
Optional Stand for T25
| Cat. No |
Model |
Type |
Rod Size |
Plate Size |
Height |
| H01-05-968 |
1163100S |
R1822 |
Φ16 mm |
W200×D315 mm |
800 mm |
| H01-05-970 |
3160100 |
R1826 |
Ø16 mm |
W200×D316 mm |
800 mm |
