■ Aggressive Reagents 용
■ Completely Autoclavable at 121℃
■ 내부에 Sealing Ring이 없어 유지 보수 및 세척이 간단함
■ For Concentrated acids such as H3PO4, H2SO4, bases like NaOH,
KOH, saline solutions, as well as many organic solvents용
■ For such reagents as concentrated HCl and HNO3, for trifluoroacetic
acid (TFA), tetrahydrofuran (THF), dichloromethane and peroxides,
we recommend the Dispensette®S Organic.
■ IS09001과 GLP에 따른 보정 작업이 가능
■ 공통 구성품 : Dispenser with GL45 Thread, Conformity Certified,
Performance Certificate, Discherging Tube, Mounting Tool,
Adapter (1 ~ 10 ml : GL24-25, GL28/S28, GL32-33, GL38,
S40. 25 ~ 100 ml : GL32-33, GL38, S40), Filling Tube
(1 ~ 10 ml : 125 ~ 240 mm, 25 ~ 100 ml : 170 ~ 330 mm)
■ without Recirculation Valve는 Recirculation Tube 미포함
■ 기타 자세한 사항은 324 ~ 325 Page 참조
■ Brand GmBH

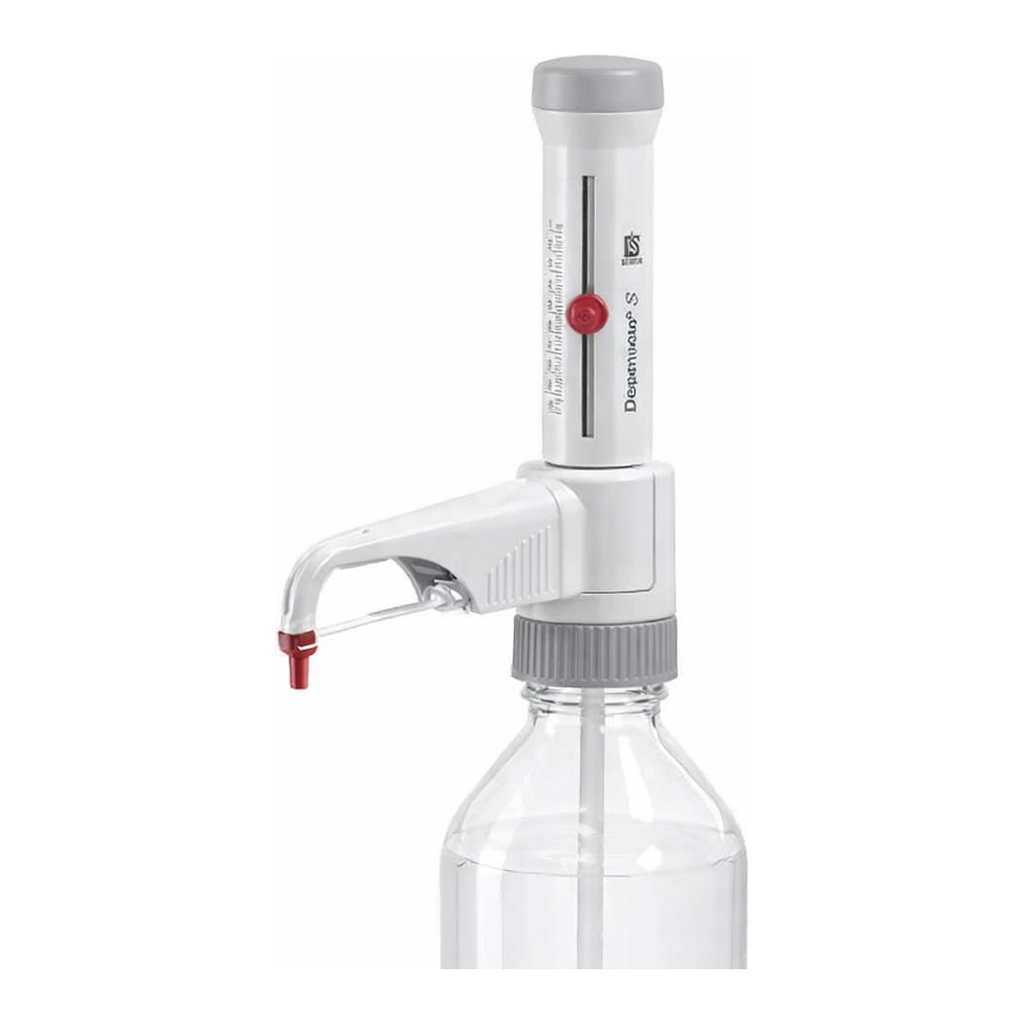

- Analog-Adjustment, 아날로그 조절식
without Recirculation Valve & Tube
| Cat. No |
Model |
용량 (ml) |
눈금 (ml) |
Accuracy |
Coefficient of
variation |
| D03-59-202 |
4600100 |
0.1 ~ 1 |
0.02 |
≤±1.0%(5 ul) |
≤±0.2%(1 ul) |
| D03-59-206 |
4600120 |
0.2 ~ 2 |
0.05 |
≤±0.5%(10 ul) |
≤±0.1%(2 ul) |
| D03-59-210 |
4600130 |
0.5 ~ 5 |
0.1 |
≤±0.5%(25 ul) |
≤±0.1%(5 ul) |
| D03-59-214 |
4600140 |
1 ~ 10 |
0.2 |
≤±0.5%(50 ul) |
≤±0.1%(10 ul) |
| D03-59-218 |
4600150 |
2.5 ~ 25 |
0.5 |
≤±0.5%(125 ul) |
≤±0.1%(25 ul) |
| D03-59-222 |
4600160 |
5 ~ 50 |
1.0 |
≤±0.5%(250 ul) |
≤±0.1%(50 ul) |
| D03-59-226 |
4600170 |
10 ~ 100 |
1.0 |
≤±0.5%(500 ul) |
≤±0.1%(100 ul) |

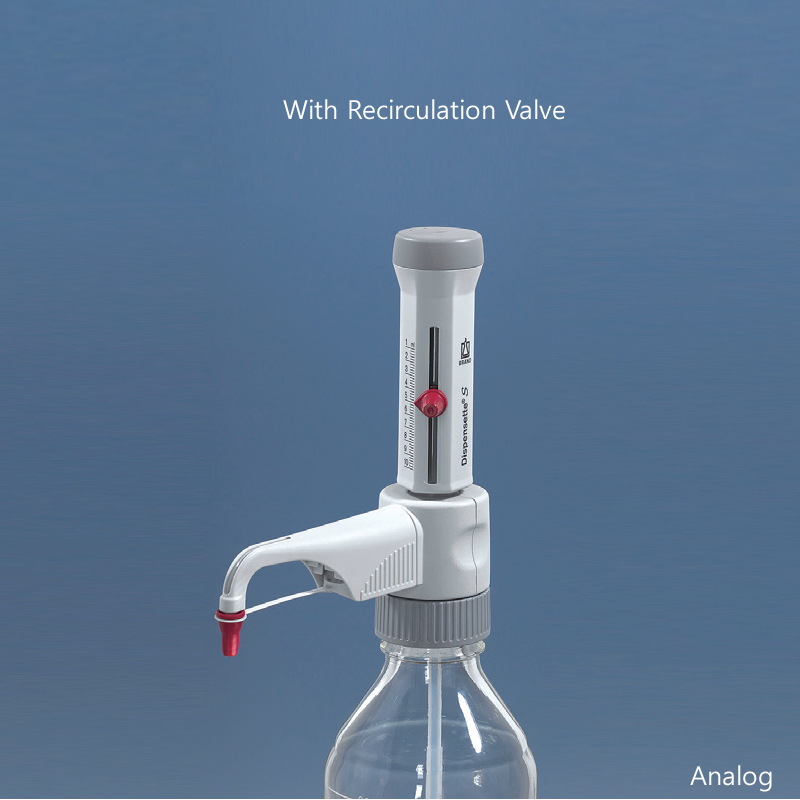

with Recirculation Valve & Tube
| Cat. No |
Model |
용량 (ml) |
눈금 (ml) |
Accuracy |
Coefficient of
variation |
| D03-59-252 |
4600101 |
0.1 ~ 1 |
0.02 |
≤±1.0%(5 ul) |
≤±0.2%(1 ul) |
| D03-59-256 |
4600121 |
0.2 ~ 2 |
0.05 |
≤±0.5%(10 ul) |
≤±0.1%(2 ul) |
| D03-59-260 |
4600131 |
0.5 ~ 5 |
0.1 |
≤±0.5%(25 ul) |
≤±0.1%(5 ul) |
| D03-59-264 |
4600141 |
1 ~ 10 |
0.2 |
≤±0.5%(50 ul) |
≤±0.1%(10 ul) |
| D03-59-268 |
4600151 |
2.5 ~ 25 |
0.5 |
≤±0.5%(125 ul) |
≤±0.1%(25 ul) |
| D03-59-272 |
4600161 |
5 ~ 50 |
1.0 |
≤±0.5%(250 ul) |
≤±0.1%(50 ul) |
| D03-59-276 |
4600171 |
10 ~ 100 |
1.0 |
≤±0.5%(500 ul) |
≤±0.1%(100 ul) |
