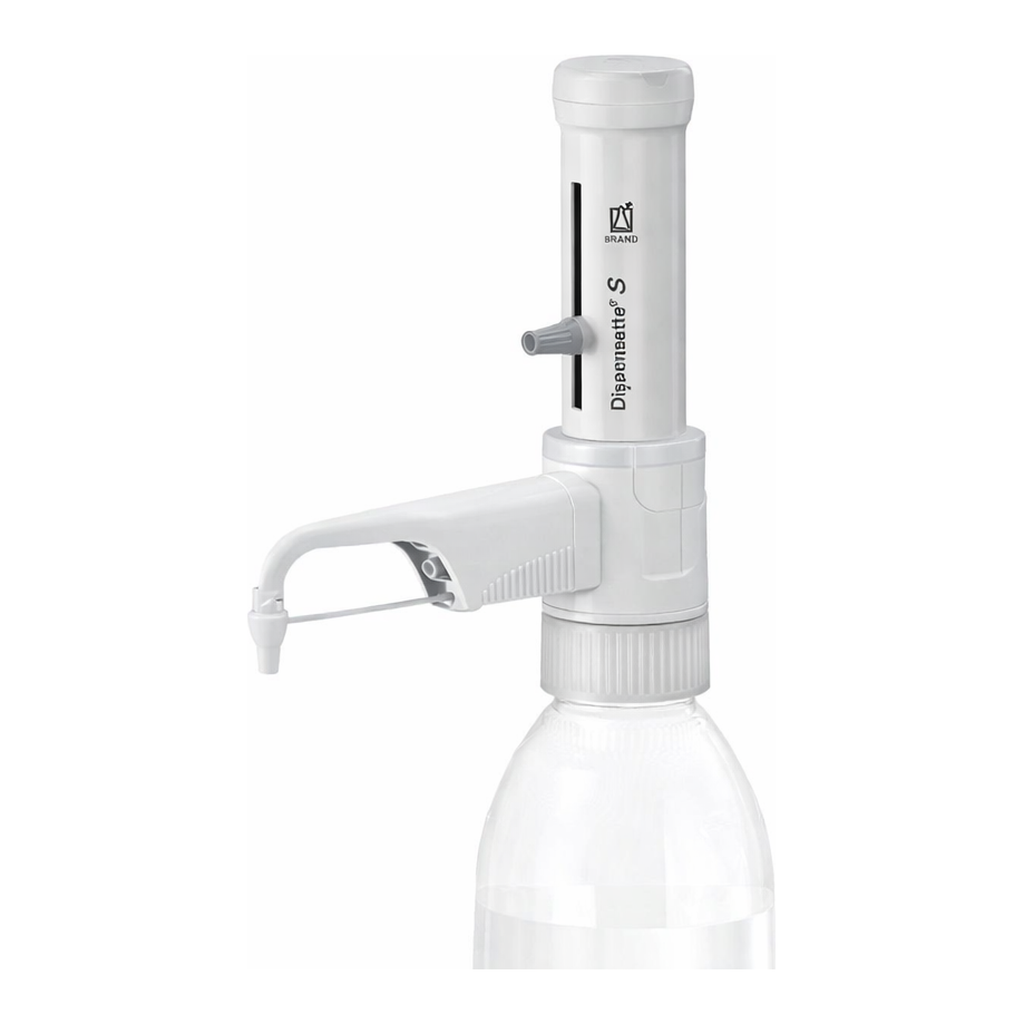

DispensetteS TA Bottle Top Dispenser 불산 및 고순도용 바틀 탑 디스펜서

■ Trace Analysis를 위한 High-Purity Acids, Alcalis or Hydrogen Peroxide 용

■ Hydrofluorid acid (HF) 용으로 사용 (Platinum-Iridium Valve Spring)
■ Analog Adjustment
■ 내부에 Sealing Ring이 없어 유지 보수 및 세척이 간단함
■ IS09001과 GLP에 따른 보정 작업이 가능
■ 2가지 Valve Spring
- Platinum-Iridium : Not Suitable Hydrogen Peroxide
- Tantal : Not Suitable Hydrofluoric Acid and Sodium hydroxide.30%
■ 공통 구성품 : Dispenser with GL45 Thread, Conformity Certified,
Performance Certificate, Discherging Tube,
Telescoping Fillting Tube, Mounting Tool,
Adapter (GL25, GL28, GL32, GL38, S40 용)
■ Not Autoclavable, Not Suitable for Organic Solvent
■ Brand GmBH

Without Recirculation Valve

Cat. No	Model	용량	Valve spring	눈금	Accuracy	Coefficient of variation

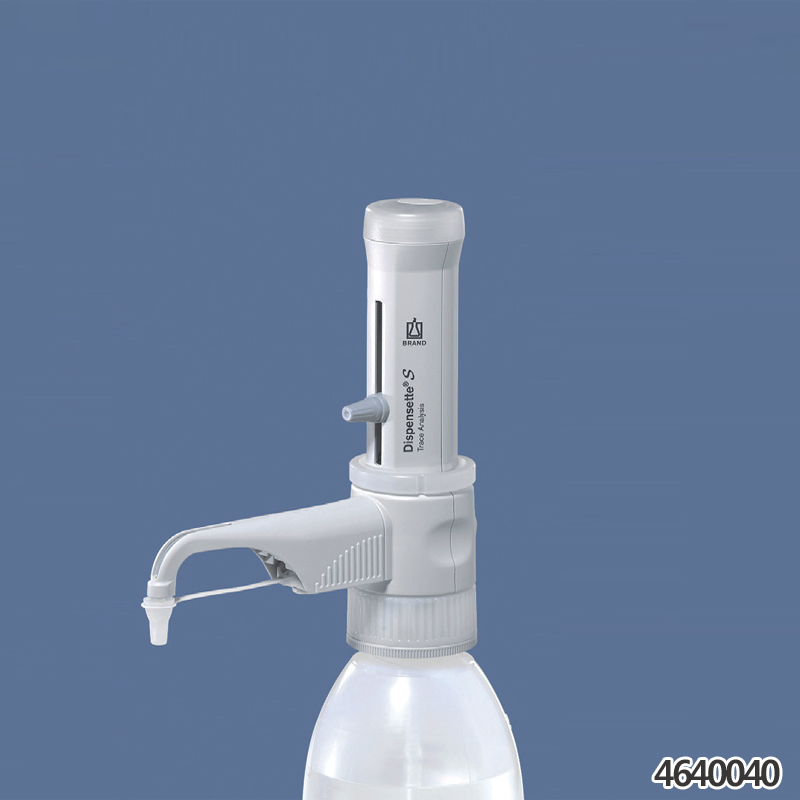

D03-59-600	4640040	1 ~ 10 ml	Platin-Iridium	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)
D03-59-604	4640240	1 ~ 10 ml	Tantal	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)

With Recirculation Valve

Cat. No	Model	용량	Valve spring	눈금	Accuracy	Coefficient of variation
D03-59-650	4640041	1 ~ 10 ml	Platin-Iridium	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)
D03-59-654	4640241	1 ~ 10 ml	Tantal	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)

Dispensing Cartridge with Safety Ring ①

Cat. No	Model	용량	보증서
D03-59-660	708035	10 ml	포함

● Discharge Tube
with Recirculation Valve ②

Cat. No	Model	Valve Spring	Length
D03-59-664	708122	Platinum-iridium	105 mm
D03-59-668	708124	Tantalum

without Recirculation Valve ③

Cat. No	Model	Valve Spring	Length
D03-59-672	708022	Platinum-iridium	105 mm
D03-59-676	708024	Tantalum

Flexible Discharge Tube with Recirculation Valve ④

Cat. No	Model	용량	Tube Size
D03-59-949	708132	10 ml	od3×id2 mm

● PTFE Coiled, Lenght Approx. 800 mm, with Safety Handle

PTFE Threaded Adapter for GL45

Cat. No	Model	Bottle Thread	Top Thread
D03-460-200	H978-30 ⑤	GL32	GL45
D03-460-205	H978-40 ⑥	GL40/S40
