■ Aggressive Reagents 용
■ Completely Autoclavable at 121℃
■ 내부에 Sealing Ring이 없어 유지 보수 및 세척이 간단함
■ For Concentrated acids such as H3PO4, H2SO4, bases like NaOH,
KOH, saline solutions, as well as many organic solvents용
■ For such reagents as concentrated HCl and HNO3, for trifluoroacetic
acid (TFA), tetrahydrofuran (THF), dichloromethane and peroxides,

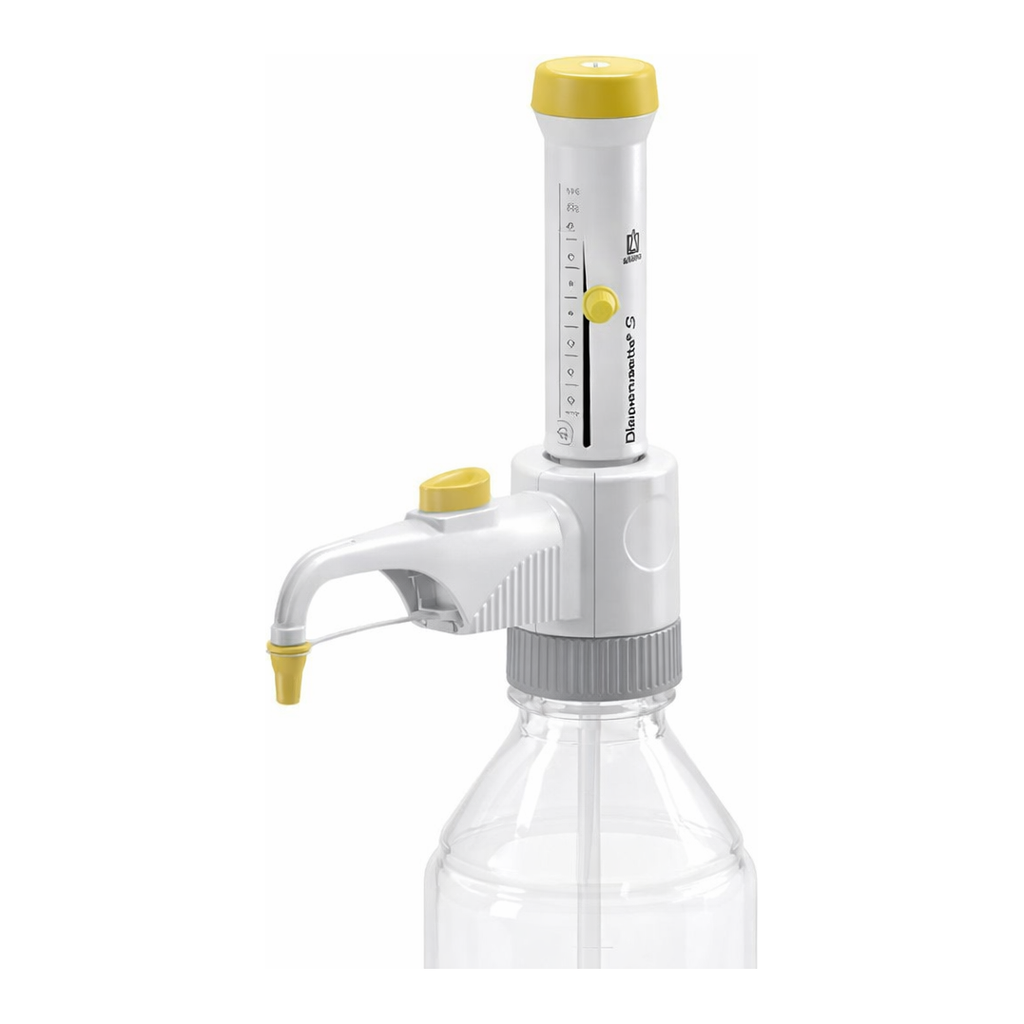

we recommend the Dispensette®S Organic.
■ IS09001과 GLP에 따른 보정 작업이 가능
■ 공통 구성품 : Dispenser with GL45 Thread, Conformity Certified,
Performance Certificate, Discherging Tube, Mounting Tool,
Adapter (1 ~ 10 ml : GL24-25, GL28/S28, GL32-33, GL38,
S40. 25 ~ 100 ml : GL32-33, GL38, S40), Filling Tube
(1 ~ 10 ml : 125 ~ 240 mm, 25 ~ 100 ml : 170 ~ 330 mm)
■ without Recirculation Valve는 Recirculation Tube 미포함
■ 기타 자세한 사항은 324 ~ 325 Page 참조
■ Brand GmBH

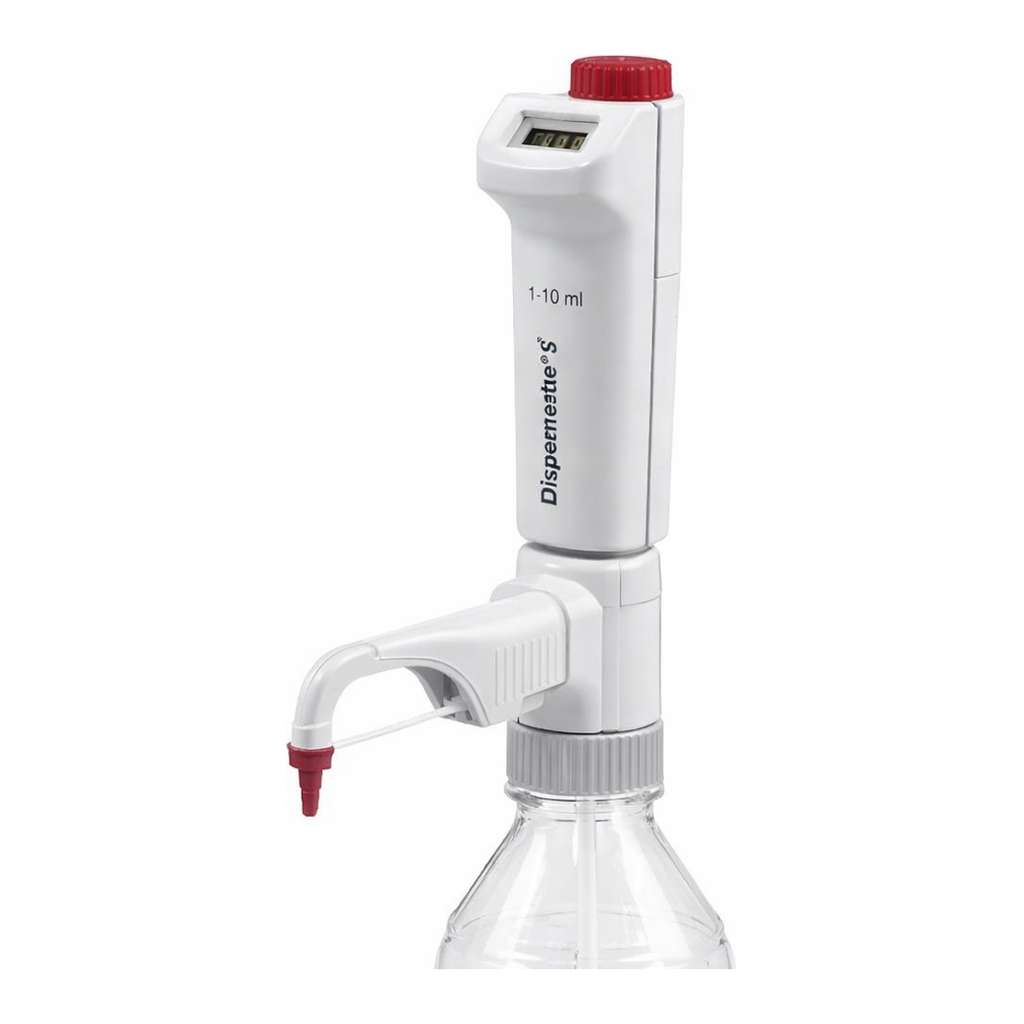

- Digital, Easy Calibration, 디지털 조절식
● 분주용량을 정밀하고 정확하게 조절할 수 있음

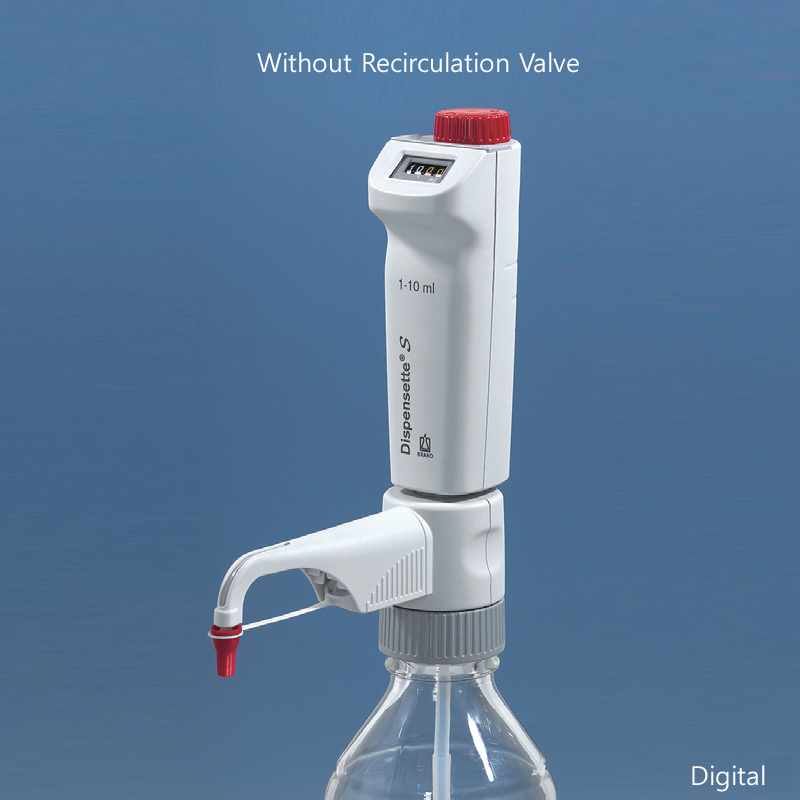

without Recirculation Valve & Tube
| Cat. No |
Model |
용량 (ml) |
눈금 (ml) |
Accuracy |
Coefficient of
variation |
| D03-59-096 |
4600310 |
0.1 ~ 1 |
0.005 |
≤±0.6%(6 ul) |
≤±0.2%(2 ul) |
| D03-59-102 |
4600320 |
0.2 ~ 2 |
0.01 |
≤±0.5%(10 ul) |
≤±0.1%(2 ul) |
| D03-59-106 |
4600330 |
0.5 ~ 5 |
0.02 |
≤±0.5%(25 ul) |
≤±0.1%(5 ul) |
| D03-59-110 |
4600340 |
1 ~ 10 |
0.05 |
≤±0.5%(50 ul) |
≤±0.1%(10 ul) |
| D03-59-114 |
4600350 |
2.5 ~ 25 |
0.1 |
≤±0.5%(125 ul) |
≤±0.1%(25 ul) |
| D03-59-118 |
4600360 |
5 ~ 50 |
0.2 |
≤±0.5%(250 ul) |
≤±0.1%(50 ul) |
with Recirculation Valve & Tube
| Cat. No |
Model |
용량 (ml) |
눈금 (ml) |
Accuracy |
Coefficient of
variation |
| D03-59-146 |
4600311 |
0.1 ~ 1 |
0.005 |
≤±0.6%(6 ul) |
≤±0.2%(2 ul) |
| D03-59-152 |
4600321 |
0.2 ~ 2 |
0.01 |
≤±0.5%(10 ul) |
≤±0.1%(2 ul) |
| D03-59-156 |
4600331 |
0.5 ~ 5 |
0.02 |
≤±0.5%(25 ul) |
≤±0.1%(5 ul) |
| D03-59-160 |
4600341 |
1 ~ 10 |
0.05 |
≤±0.5%(50 ul) |
≤±0.1%(10 ul) |
| D03-59-164 |
4600351 |
2.5 ~ 25 |
0.1 |
≤±0.5%(125 ul) |
≤±0.1%(25 ul) |
| D03-59-168 |
4600361 |
5 ~ 50 |
0.2 |
≤±0.5%(250 ul) |
≤±0.1%(50 ul) |
