Thermo Scientific™

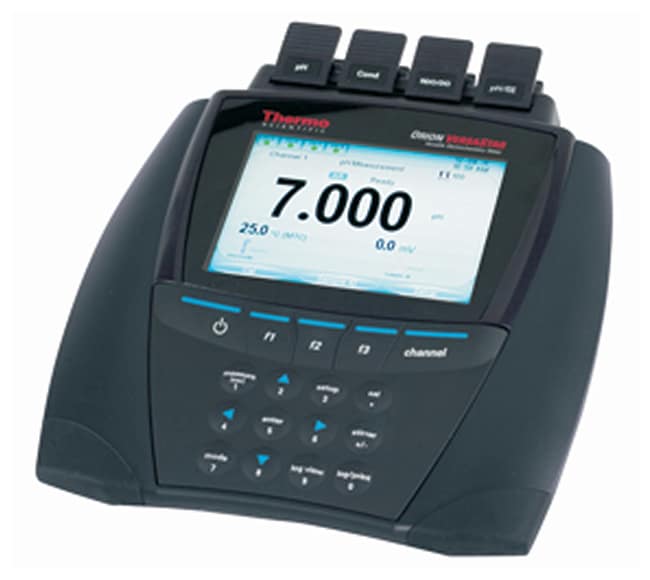

Orion™ Versa Star Pro™ pH/LogR™ Benchtop Meter

Get premium performance and ultimate flexibility with our benchtop meter with pH/LogR module for pH, mV, ORP and LogR temperature technology.

Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Pro™ pH/LogR™ Benchtop Meter. Meet your most challenging applications for pH, mV, ORP and LogR temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Use LogR technology to measure both pH and temperature using the glass-bulb of most pH electrodes. Log up to 2000 data point sets with time/date stamp and easily transfer calibration and data logs via USB or RS232 to a printer or computer.

사양

정확도(온도)±0.1°C

정확도(mV)±0.2 or ±0.05%, whichever is greater

정확도(pH)±0.002

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

설명Orion Versa Star Pro pH/LogR benchtop meter with stand

출력USB, RS-232

포함Versa Star Pro meter with pH/LogR module, electrode stand, 100-240V universal power adapter, computer cable

Measurement ModespH with LogR Temperature, mV, Relative mV, ORP with Temperature

보정pH with calibration editing option, relative mV, ORP, LogR temperature and temperature

범위(pH)-2 to 20

분해능(pH)0.001, 0.01, 0.1

범위(mV)±2000.0

범위(ORP)±2000.0mV

분해능(mV)0.1mV

Calibration Points1 to 6

온도 범위(미터법)-5°C to +105°C

온도 범위(영국식 단위)22.0°F to 221.0°F

분해능(온도)0.1°C, 0.1°F

온도 선택Manual or automatic with ATC temperature probe, automatic with pH electrode using LogR mode

온도 프로브 보정1 point temperature offset calibration, 3 point LogR temperature calibration

디스플레이 유형LCD, Color Graphic with User-Customizable Options

Backlight OptionYes

메모리Non-volatile memory preserves data log, calibration log and meter settings

데이터 포인트2000 with Date and Time Stamp

로그 기능 유형Automatic with Auto-Read, Timed and Single Shot Measure Modes; Manual

알람 출력Set point alarm, high/low limit alarm, calibration due alarm

입력BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), two stirrer inputs (stirrer probe)

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP-54

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR)

치수(길이 x 폭 x 높이)28 cm x 24 cm x 10 cm (11 in. x 9.5 in. x 3.9 in.), modules add ≤ 2 cm (0.8 in.) L & H

중량(미터법)1.2 kg, modules add 0.2 kg each

중량(영국식 단위)2.5 lb., modules add 0.5 lb. each

워런티3 Year Meter and Module Warranty

키패드Numeric with menu-specific function keys and dual purpose scroll/shortcut keys

방법10 per channel

전력 정격DC input: 9VDC, 1A

전원 공급 장치Universal AC adapter (included)

프로브 유형pH electrode, ORP electrode, reference half-cell electrode, ATC temperature probe, stirrer probe (purchase separately)

언어English, Spanish, French, Italian, German, Chinese, Portuguese and Korean

범위(상대 mV)±2000.0mV

상대 습도 범위5 to 85%, non-condensing

등전위 지점7.000pH (adjustable)

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

채널4 - customizable with modules

Unit SizeEach
