Thermo Scientific™

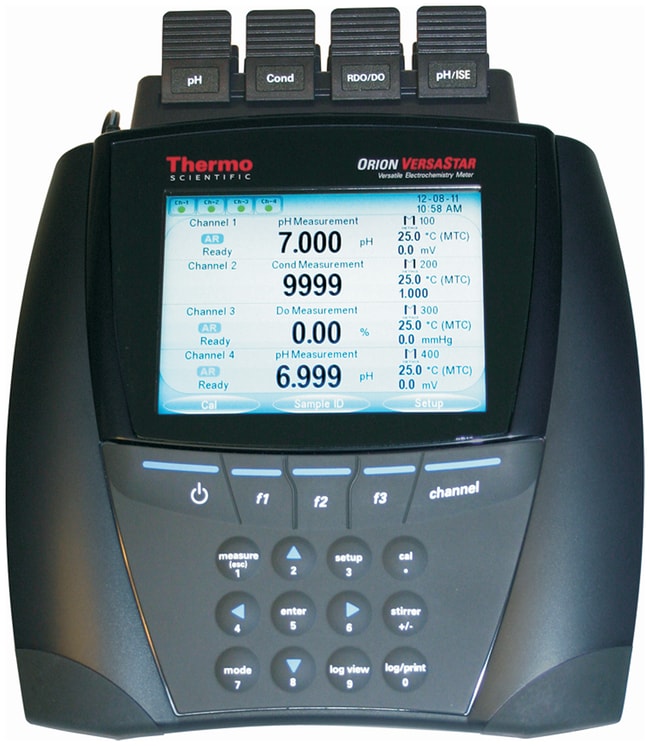

Orion™ Versa Star Pro™ pH/ISE Benchtop Multiparameter Meter

Get premium performance and ultimate flexibility with our benchtop meter with pH/ISE module for pH, ion concentration, and temperature.

Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Pro™ pH/ISE Benchtop Multiparameter Meter. Meet your most challenging applications for pH, ion concentration, mV, ORP and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Perform up to 6 point pH and ISE calibrations, log up to 2000 data point sets with time/date stamp and transfer calibration and data logs via USB or RS232 to a printer or computer. Select systems with one or two pH/ISE modules.

사양

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR)

출력USB (2), RS232

정확도(ISE)±0.2 mV or ±0.05% of reading whichever is greater

정확도(mV)±0.2 mV or ±0.05% of reading whichever is greater

정확도(pH)±0.002

고급 ISE 기능Segmented (point-to-point) slope, non-linear selectable auto-blank, low concentration range stabilit

알람 출력Set point alarm, high/low limit alarm, calibration due alarm

백라이트 옵션Yes

보정pH with calibration editing option, ion concentration (ISE) with calibration editing option, relativ

보정 지점1 point relative mV (RmV) mode, 1 point ORP mode

보정 지점(ISE)1 to 6

보정 지점(pH)1 to 6

인증/적합성CE, TUV 3-1, FCC Class A

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

데이터 포인트2000 with date and time stamp

설명Orion Versa Star Pro benchtop meter with pH/ISE/mV module and stand

채널4 - customizable with modules

디스플레이 유형Color graphic LCD with user-customizable options

IP 등급IP 54

Measurement ModespH, mV, Relative mV, ORP, Ion Concentration (ISE) with Temperature

범위(mV)±2000.0 mV

범위(pH)-2.000 to 20.000

분해능(ISE)0.0001 minimum, 1 to 4 significant digits (user selectable)

분해능(pH)0.1/0.01/0.001

온도 범위(미터법)-5.0°C to +105.0°C

포함Versa Star Pro meter, VSTAR-ISE pH/ISE module, electrode stand, universal power adapter, literature CD, printed quick start guide, computer interface cable and meter test certificate

입력BNC (pH, ORP or ion selective electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), two stirrer inputs (stirrer probe)

등전위 지점7.000pH (adjustable), 1.000 ISE (adjustable)

키패드Numeric with menu-specific function keys and dual purpose scroll/shortcut keys

언어English, Spanish, French, Italian, German, Chinese, Portuguese and Korean

로그 기능 유형Automatic data logging with Auto-Read, Timed and Single Shot measure modes; manual data logging with

메모리Non-volatile memory preserves data log, calibration log and meter settings

방법10 per channel

전력 정격DC input: 9VDC, 1A

전원 공급 장치Universal AC adapter (included)

프로브 유형pH electrode, ORP electrode, ion selective electrode (ISE), reference half-cell electrode, ATC temperature probe, stirrer probe (purchase separately)

범위(ISE)0.0001 to 19990 with selectable units of ppm, Molar, mg/L, %, ppb or none

범위(ORP)±2000.0 mV

범위(상대 mV)±2000.0 mV

상대 습도 범위5 to 85 %, non-condensing

분해능(mV)0.1mV

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

온도 정확도±0.1°C

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

온도 프로브 보정1 point temperature offset calibration

온도 범위(영국식 단위)22.0°F to 221.0° F

온도 분해능0.1°C, 0.1°F

온도 선택Manual or automatic with ATC temperature probe

워런티3 year meter and module warranty

치수(길이 x 폭 x 높이)28cm x 24cm x 10cm (11 in. x 9.5 in. x 3.9 in.), modules add ≤ 2cm (0.8 in.) L & H

중량(영국식 단위)2.5 lb., modules add 0.5 lb. each

중량(미터법)1.2 kg, modules add 0.2 kg each

Unit SizeEach
