Thermo Scientific™

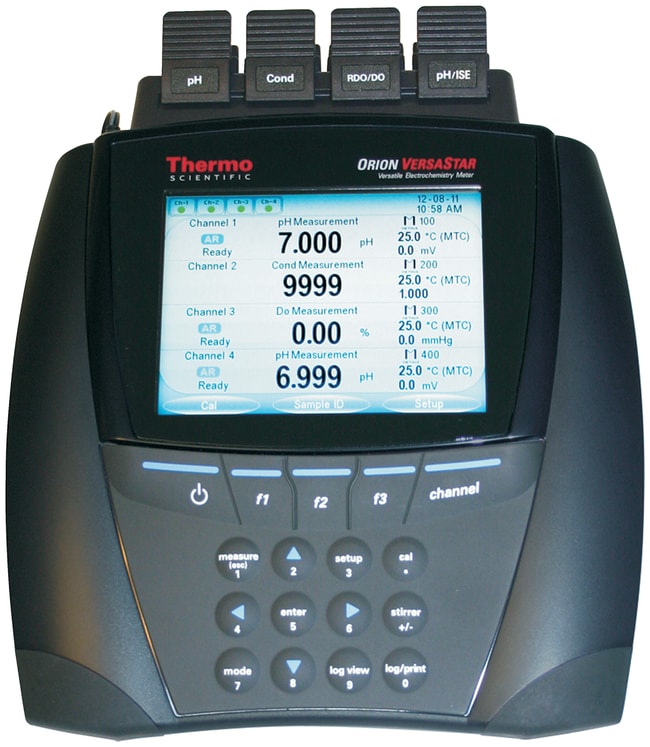

Orion™ Versa Star Pro™ DO Benchtop Meter

Get premium performance and flexibility with this benchtop meter with module for dissolved oxygen (optical/polarographic) and temperature.

Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Pro™ Benchtop Meter with Dissolved Oxygen/RDO Module. Meet your most challenging applications for dissolved oxygen and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Use an RDO optical or polarographic DO probe and calibrate using water-saturated air, air-saturated water, custom value (Winkler) or zero point. Log up to 2000 data point sets with time/date stamp and transfer to a printer or computer.

사양

대기압 보정400 to 850mmHg, automatic using built-in barometer or manual entry

설명Orion Versa Star Pro benchtop meter with RDO/DO module and stand

출력USB (2), RS232

포함Versa Star Pro meter, VSTAR-RD RDO/DO module, electrode stand, universal power adapter, literature CD, printed quick start guide, computer interface cable and meter test certificate

Measurement ModesDissolved Oxygen (% Saturation), Dissolved Oxygen (mg/L with Temperature and Barometric Pressure)

센서 유형RDO optical dissolved oxygen sensor or polarographic dissolved oxygen sensor

범위(폴라로그래픽 DO)0.00 to 90.00 mg/L

Percent Saturation Range (Polarographic DO)0.0 to 600.0 % saturation

분해능(폴라로그래픽 DO)0.01, 0.1mg/L

정확도(폴라로그래픽 DO)±0.2mg/L or ±2% of reading, whichever is greater

압력 범위400 to 850mmHg

보정 모드Water-saturated air, air-saturated water, manual (Winkler titration), zero point

온도(미터법) 범위-5.0°C to +105.0°C

분해능(온도)0.1°C (0.1°F)

정확도(온도)±0.1°C

온도 선택Automatic with ATC temperature probe

온도 프로브 보정1 point temperature offset calibration

디스플레이 유형Color graphic LCD with user-customizable options

백라이트 옵션Yes

메모리Non-volatile memory preserves data log, calibration log and meter settings

데이터 포인트2000 with date and time stamp

로그 기능 유형Automatic data logging with Auto-Read, Timed and Single Shot measure modes; manual data logging with

데이터 관리 세부 정보Transfer single, range or all data points to printer or computer

알람 출력Set point alarm, high/low limit alarm, calibration due alarm

입력9 pin MiniDIN (RDO optical or polarographic DO sensor with built-in temperature), two stirrer inputs (stirrer probe)

인증/적합성CE, TUV 3-1, FCC Class A

IP 등급IP-54

AC 어댑터Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. STARA-PWR)

치수(길이 x 폭 x 높이)28 cm x 24 cm x 10 cm (11 in. x 9.5 in. x 3.9 in.), modules add ≤ 2 cm (0.8 in.) L & H

중량(미터법)1.2 kg, modules add 0.2 kg each

중량(영국식 단위)2.5 lb., modules add 0.5 lb. each

상대 습도 범위5 to 85 %, non-condensing

워런티3 year meter and module warranty

Percent Saturation Range Polarographic DO0.0 to 600.0 % saturation

키패드Numeric with menu-specific function keys and dual purpose scroll/shortcut keys

언어English, Spanish, French, Italian, German, Chinese, Portuguese and Korean

정확도(RDO)±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, ±10% of reading up to 50mg/L

범위(RDO)0.00 to 50.00 mg/L

방법10 per channel

Percent Saturation Relative Accuracy (RDO)±2 % saturation ≤ 200 % saturation, ±10 % saturation > 200 % saturation

Percent Saturation Resolution (Polarographic DO)0.1, 1 % saturation

백분율 포화도 범위(RDO)0.0 to 500.0 % saturation

Percent Saturation Relative Accuracy (Polarographic DO)±2 % saturation or ±2% of reading whichever is greater

백분율 포화 분해능(RDO)0.1, 1 % saturation

전력 정격DC input: 9VDC, 1A

전원 공급 장치Universal AC adapter (included)

압력 분해능0.1mmHg

프로브 유형RDO optical dissolved oxygen probe, polarographic dissolved oxygen probe, stirrer probe (purchase separately)

채널4 - customizable with modules

분해능(RDO)0.01, 0.1mg/L

염도 계수0.0 to 45.0 ppt, automatic correction using manual entry of sample salinity

안정성Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting

온도(영국식 단위) 작동41°F to 113°F (ambient)

작동 온도(미터법) 작동5°C to 45°C (ambient)

정확도(바로미터)±6mmHg

Unit SizeEach
