Norgen Parvo B19 TaqMan PCR Kit Dx

상품 한눈에 보기

Parvovirus B19 검출용 TaqMan PCR 키트로, CE-IVDD 인증을 받은 체외진단용 제품입니다. 24회 반응용으로 구성되어 있으며, PCR 억제 모니터링 및 품질 검증용 내부 컨트롤을 포함합니다. -20°C 보관이 필요하며, 빠르고 정확한 진단을 위한 Ready-to-use 포맷을 제공합니다.

브랜드: Norgen
카테고리: PCR Kits
판매단위: pk

#Norgen #PCR Reagents #Electrophoresis

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Norgen Parvo B19 TaqMan PCR Kit Dx판매 단위 pk ·

재고 확인 필요재고 확인 필요

531,000원VAT 포함 584,100원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Norgen · Norgen Parvo B19 TaqMan PCR Kit Dx

Norgen Parvo B19 TaqMan PCR Kit Dx

SKU: DxTM39600

Features and Benefits

Detection kits for Parvovirus B19
CE-IVDD marked in accordance with European Commission Directive 98/79/EC
Research version available
Available in TaqMan format for analysis

Product Description

Parvovirus B19 was the first known human virus in the family of Parvoviruses. It is a non-enveloped, icosahedral virus containing a single-stranded linear DNA genome. Classified as an erythrovirus, it invades red blood cell precursors in bone marrow.
B19 causes a childhood rash called fifth disease (erythema infectiosum), commonly known as “slapped cheek” syndrome. Transmission occurs primarily via respiratory droplets, with some blood-borne cases reported.
In pregnant women, infection may cause hydrops fetalis and fetal anemia, sometimes leading to miscarriage or stillbirth. Rapid diagnostic methods are essential due to the severity of infection.

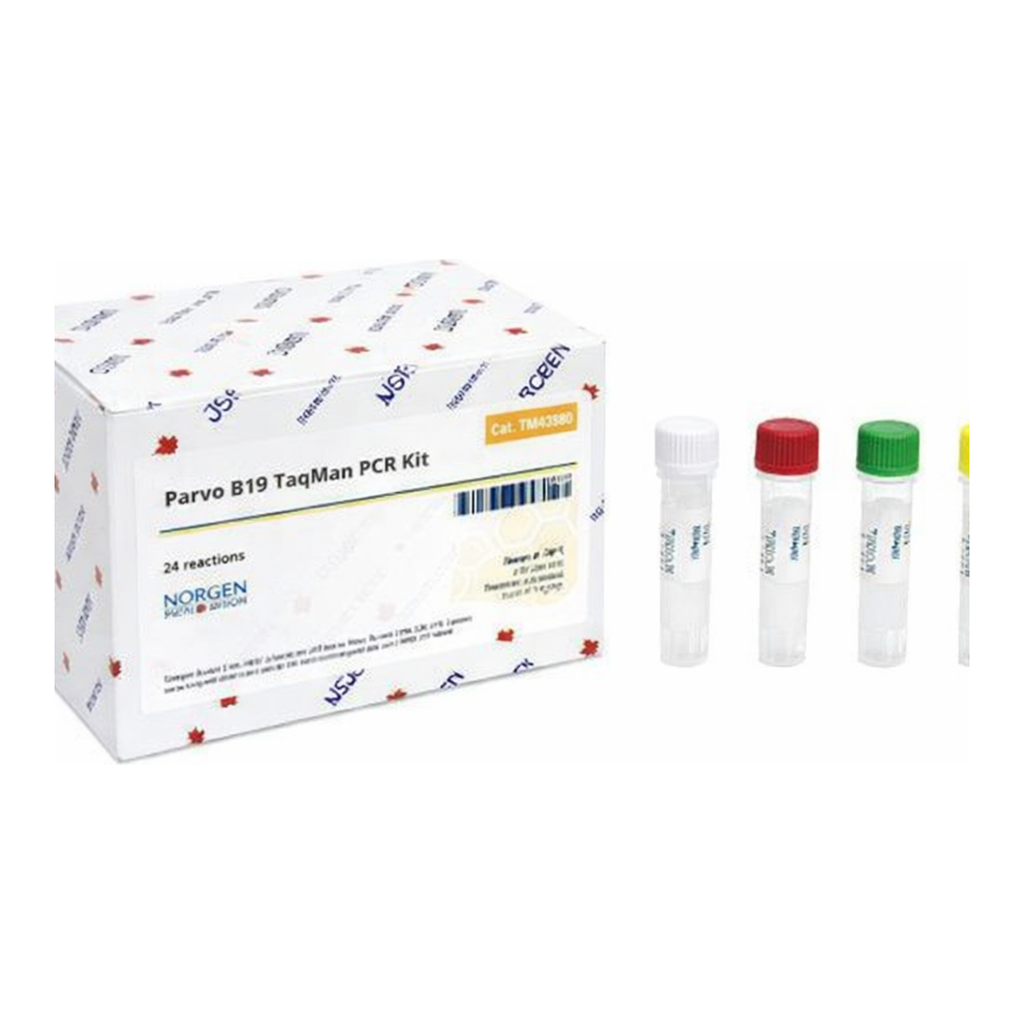

Kit Format

Parvo B19 TaqMan PCR Kit, 24 reactions

Ready-to-use format including Master Mix and PCR control
Specific Primer and Probe mix for pathogen detection
Positive and negative controls included
Validates quality and monitors PCR inhibition

Supporting Data

Figure 1: Example of TaqMan PCR Positive Result

Both PCR signals above the baseline from FAM and HEX channels indicate successful PCR amplification.

Amplification Graphs (OCR extracted):
| 그래프 위치 | 제목 | 채널명 | X축 | Y축 |
|--------------|--------|-----------|------|------|
| 상단 | Amplification | FAM channel | Cycles (10~40) | RFU (-100~500) |
| 하단 | Amplification | HEX channel | Cycles (10~40) | RFU (0~900) |

Figure 2: Example of TaqMan PCR Negative Result

No target DNA detected in FAM channel; HEX amplification confirms successful PCR control.

Amplification Graphs (OCR extracted):
| 그래프 위치 | 제목 | 채널명 | X축 | Y축 |
|--------------|--------|-----------|------|------|
| 상단 | Amplification | FAM channel | Cycles (0~40) | RFU (-100~400) |
| 하단 | Amplification | HEX channel | Cycles (0~40) | RFU (-100~900) |

Figure 3: Example of TaqMan PCR Inhibition Result

No signal detected from both FAM and HEX channels. Repeat sample preparation using recommended DNA purification kit.

Amplification Graphs (OCR extracted):
| 그래프 위치 | 제목 | 채널명 | X축 | Y축 |
|--------------|--------|-----------|------|------|
| 상단 | Amplification | FAM channel | Cycles (0~40) | RFU (-100~900) |
| 하단 | Amplification | HEX channel | Cycles (0~40) | RFU (-100~900) |

Storage Conditions

Shipped on dry ice
Store all components at -20°C upon arrival
Avoid repeated thawing/freezing (>3x) of Master Mix and Positive Control
For intermittent use, freeze reagents in aliquots

Kit Components

Component	Cat. DxTM39600 (24 rxns)
MDx TaqMan 2X PCR Master Mix Dx	550 µL
Parvo B19 Primer & Probe Mix Dx	2 × 70 µL
Parvo B19 Positive Control Dx (200,000 copies/μL)	50 µL
Nuclease-Free Water	1.25 mL
Product Insert	1
