Atlas Log-TH Temperature Humidity Data Logger

Temperature range: -40℃~+85℃

Humidity accuracy: ±3％RH

Suitable for food, vaccines

Single use/multi use, parameters configurable

Flexible ultra thin cable

Up to 6 alarm points

Mark and pause function

Temporary reports

Battery replaceable

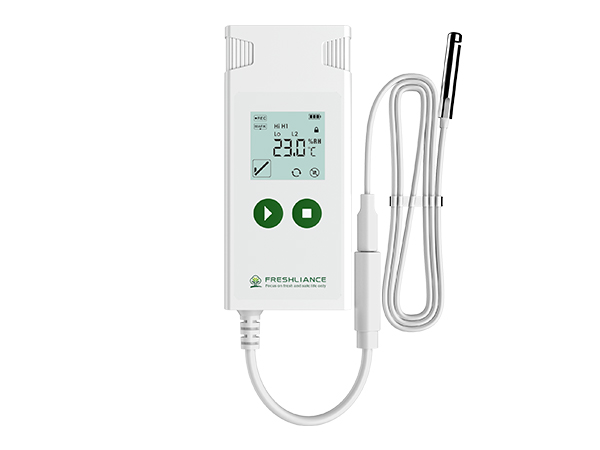

Atlas Log-TH is a Single use/multi use temperature and humidity data logger with an external probe. The USB thermograph features a high-resolution temperature range of -40℃~ 85°C. It comes with up to 35,000 readings with a real-time temperature and humidity display on the screen. Parameters can be freely configured on configuration software provided by our company. The built-in PDF/CSV file generation function enables this temperature and humidity data logger to directly generate irreversible PDF/CSV reports on one computer, with no software required. This logger can be used for temperature and humidity monitoring in wide applications such as shipping containers, sea or air freight, distribution, storage and freezing of pharmaceuticals, frozen foods, etc.

Features

Online software configuration

Parameters can be freely configured on the configuration software.

Alarm points and Mark function

Users can set up to 6 alarm points as needed, and make a mark in case of any key event. Up to 9 marks can be made.

Password protection

Passwords can be set to prevent others from unauthorized operations on the device.

Intuitive LCD display

LCD screen displays, running status, current temperature and humidity, alarm status, battery level, alarm points, Max, Min, and Average temperature and humidity value, etc.

Temporary report available

The temporary mode allows this temperature and humidity data logger to continue working after users have exported and read the temporary report. Current configuration information can be viewed using the configuration software.

Automatic PDF/CSV data report

With USB connection to one computer, the temperature and humidity data logger will automatically generate PDF/CSV/PDF&CSV reports with graph and table, no software or reader required.

Multiple probe types optional

The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.

Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.

Specifications

Model	Atlas Log-TH	Type of Use	Single use/multi use
Protection Grade	IP65	Memory Capacity	PDF: Max. 35,000 readings; PDF&CSV: Max. 2,0000 readings each
Temperature Range	-40℃~+85℃	Temperature Accuracy	±0.5℃ F.S.
Humidity Range	0~100%RH	Humidity Accuracy	±3％ RH
Alarm Type	LCD screen display	Battery	CR2450
Resolution	0.1℃	Logging Interval	1 minute~24 hours
Start Delay	0 minute~24 hours	Report Format	Automatic PDF/CSV report
Connection	USB, NFC (optional)	Compatible OS	Windows, Mac
Certifications	CE, RoHS, EN12830	Dimensions	96mm*44mm*15mm

Applications

Atlas Log-TH single use/multi use Temperature and Humidity Data Logger with External Probe can be used for in-transit temperature and humidity records of biopharmaceuticals, life sciences, biological samples, blood cold chain, diagnostic reagents, including biological reagents, molecular reagents, and cell biology agents and other products during the low-temperature environment.

Atlas Log-TH temperature data logger with an external probe is an ideal temperature and humidity monitoring solution for shipments that requires frequent temperature sampling intervals.

Freshliance Tools-ETH

Freshliance Tools-ETH is a desktop software specially designed for users to use Atlas Log-TH data logger. It consists of three pages: Summary, Graph and History. On the Summary page, the software will first automatically identify ID, model, recording type, sensor type, battery level, status and other information of the device plugged in. And then users can configure the data logger as needed, including start mode, start delay, time zone, time format, logging interval, report format, PDF/software password, high and low alarm, etc. During or after data recording, user can also check statistical information of the device after plugging it in. Besides, the graph page provides a simple X–Y plot of time versus temperature/humidity which can be save as PNG format file, a list and a summary of all data recorded, as well as an option to export the report in PDF, CSV, TXT format; and the history page provides a list of all the devices whose report was read by this software.
