ZPure™ Glass Indicating Purifier, Visual Indicator 안전 유리 가스 지시관

■ High-sensitivity Visual Indicator for Oxygen & Moisture

■ 다른 ZPure™ Gas Purifier와 함께 End-Point Detection으로 사용하기에 알맞음
■ 재질 : Glass Inner Tube, Polycarbonate Outer Tube
■ PC Outer Tube : 내부 유리관 보호 및 내부 유리관의 파손시 Gas의 외부 유출 방지
■ Particle Removal을 위한 Integrated Stainless Steel Frit(Screen)
■ 불활성의 Fluoroelastomer Seal
■ Individually Hellum Leak-tested

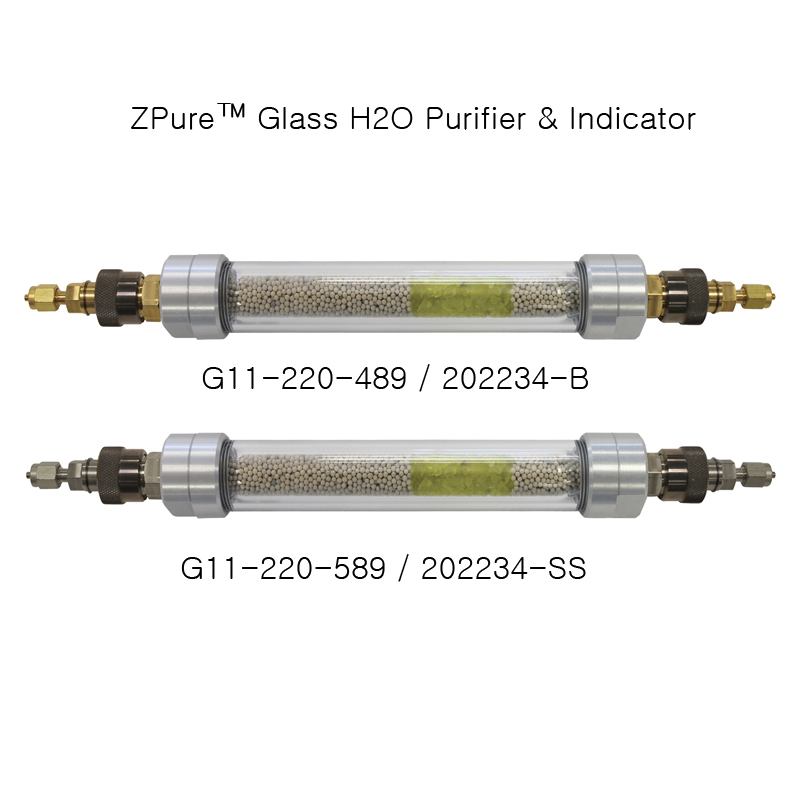

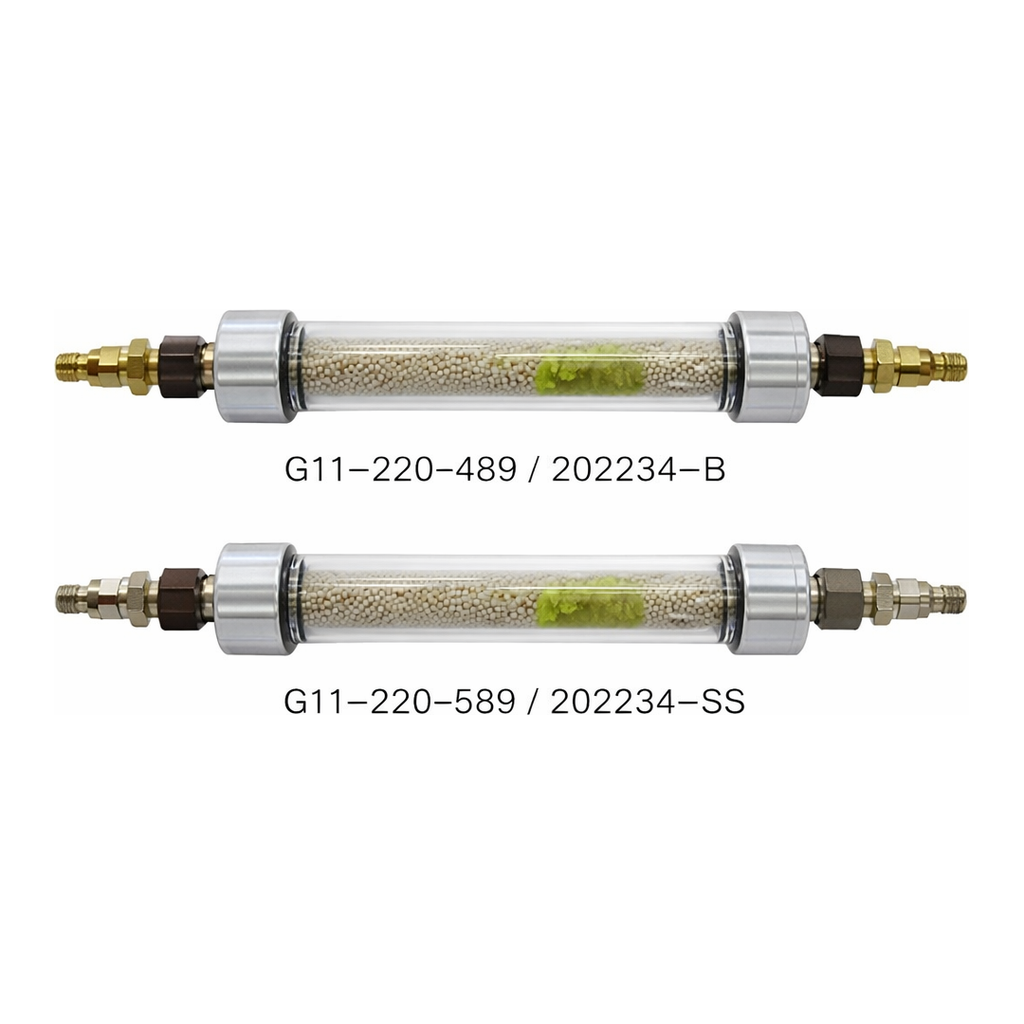

■ Chromres ZPure™ Glass H2O Purifier & Indicator, Green to Blue (Moisture)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-489	202234-B	46 cc	H2O : 6 g	H2O : < 20 ppb	1/8” Brass
G11-220-495	202235-B	1/4” Brass
G11-220-589	202234-SS	1/8” SS
G11-220-595	202235-SS	1/4” SS

● Low ppb Level의 Moisture가 필요한 경우
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar, Air

ZPure™ Glass H2O HSMI Purifier & Indicator, Blue to Brown(at 1ppm Water)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-943	202283-B	45 cc	H2O : 6 g	H2O : < 20 ppb	1/8” Brass
G11-220-947	202284-B	1/4” Brass
G11-220-953	202283-SS	1/8” SS
G11-220-957	202284-SS	1/4” SS

● 고효율의 Moisture Removal가 필요한 Application 의 경우에 사용
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar, Air

ZPure™ Glass O2 Purifier & Indicator, Green to Gray(O2)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-878	202236-B	10 cc	O2 : 45 cc	O2 : < 5 ppb	1/8” Brass
G11-220-886	202237-B	1/4” Brass
G11-220-889	202236-SS	1/8” SS
G11-220-893	202237-SS	1/4” SS

● He, Ar, N2 , or Methane에서 Oxygen을 Low ppb Level로 제거
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar

ZPure™ Glass Polygas I Purifier & Indicator, Green to Gray(O2), Blue to Brown(Moisture)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-903	202314-B	38 cc	O2 : 80cc H2O : 1.4g HC : 1.0g	O2 : < 5 ppb H2 O : < 20 ppb HC : < 5 ppb	1/8” Brass
G11-220-907	202315-B	1/4” Brass
G11-220-913	202314-SS	1/8” SS
G11-220-917	202315-SS	1/4” SS

● O2 , H2 O, CO2 , CO, Halogenated Compounds, Siloxanes, Hydrocarbons heavier than Butane, Sulfur-containing Molecules, and Ammonia 등의 제거
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar

ZPure™ Glass Polygas II Purifier & Indicator, Blue to Brown(Moisture)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-923	202318-B	38 cc	H2O : 1.9 g HC : 1.8 g	H2O : < 20 ppb HC : < 5 ppb	1/8” Brass
G11-220-927	202319-B	1/4” Brass
G11-220-933	202318-SS	1/8” SS
G11-220-937	202319-SS	1/4” SS

● H2O, CO2, Halogenated Compounds, Siloxanes, Hhydrocarbons heavier than Butane, Sulfur-containing Molecules, and Ammonia
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar, Air

ZPure™ Glass H2O / HC Purifier & Indicator, Green to Blue (Moisture)

Cat. No	Model	용량	Trap 용량	Efficiency	Fitting
G11-220-060	202256-B	46 cc	H2O : 3 g HC : 2 g	H2O : < 20 ppb HC : < 5 ppb	1/8” Brass
G11-220-068	202257-B	1/4” Brass
G11-220-070	202256-SS	1/8” SS
G11-220-078	202257-SS	1/4” SS

● Dry Air or Inert Gas로부터 Moisture and Hydrocarbon 의 제거
● Gases to be Purified : Inert Carrier Gas, He, N2 , H2 , Ar, Air

Wide Filter Mounting Kit, 벽면용 필터 홀더

Cat. No	Model	Description
G11-220-100	205705	Mounting Kit for 1 Purifier, 2 x Clip

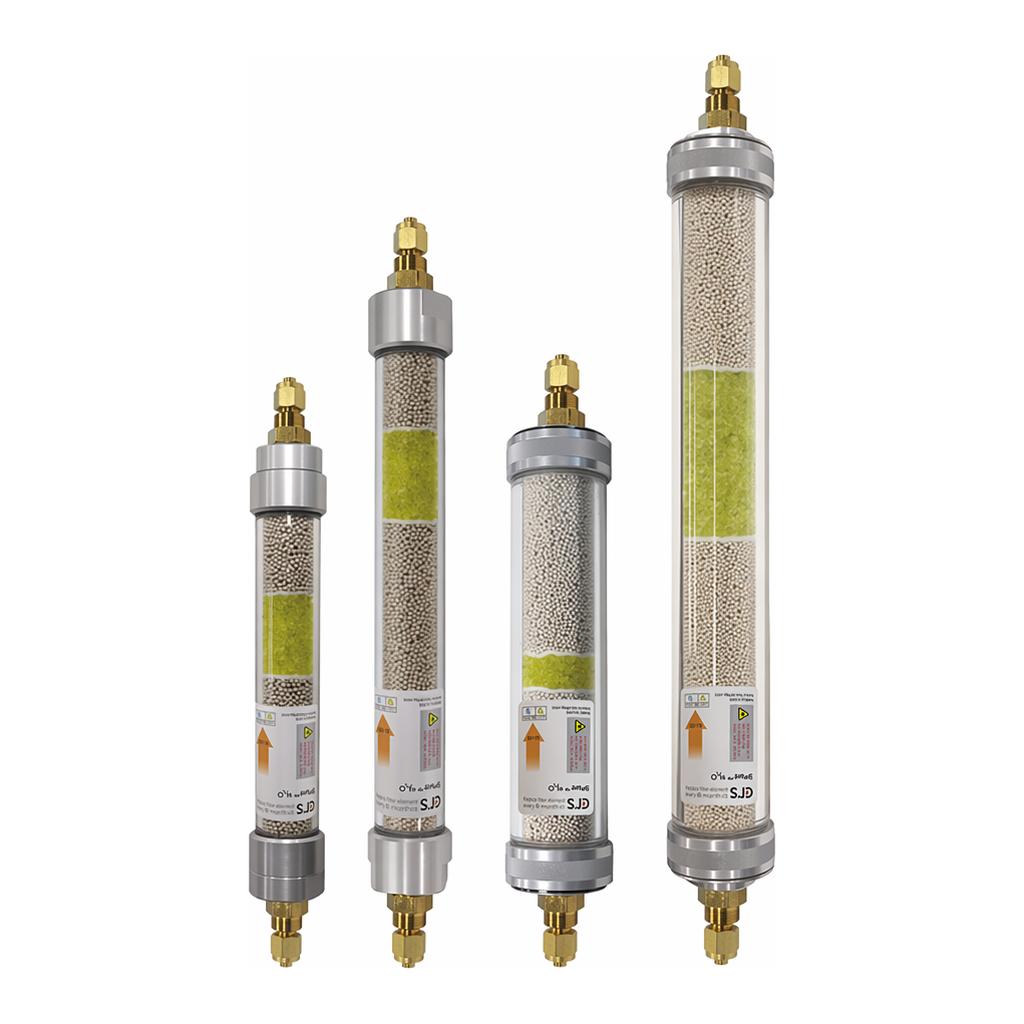

● 130cc SS ZPure Filter, ZPure Glass Indicating Filter, and 88cc or 116cc SPure Plastic Filter용
● 구성 : 2 Clips, Aassociated Hardware for Mounting (for 1 Gas Filter)

| | | | | | | |
| --- | --- | --- | --- | --- | --- | --- | thead>
| Type | Polygas I | Polygas II | O2 | H2O HSMI | H2O | H2O/HC |
| Norminal Flow Rate | 200 ml/miin | | | | | |
| Max. Flow Rate | 400 ml/min | | 2 SLPM | | | |
| Max. Pressure | 68.9 bar / 1000 psi | | | | | |
| Size | Φ38 x h263 mm | | | | | |
