ZPure™ Inline Gas Filter, Stainless Steel 고효율 가스 정제관

상품 옵션 정보
카탈로그 번호CAS 번호설명상태단위판매가할인가가격(VAT포함)수량 / 장바구니 / 찜
G11-220-749-G11-220-749 ZPure™ CO2 Purifier/3.8L/CO2: 300 g ( Max. 564 g ) / < 5 ppb, 1/EA재고문의ea11,783,300-12,961,630
G11-220-799-G11-220-799 ZPure™ H₂O + O₂ Purifier/3.8L/, 1/EA재고문의ea7,659,200-8,425,120
G11-220-793-G11-220-793 ZPure™ H₂O + O₂ Purifier/3.8L/, 1/EA재고문의ea7,311,100-8,042,210
G11-220-750-G11-220-750 ZPure™ H2O Purifier/3.8L/H2O: 369 g ( Max. 640 g ) / < 5 ppb, 1/EA재고문의ea6,498,700-7,148,570
G11-220-758-G11-220-758 ZPure™ HC Purifier/3.8L/HC: 327 g ( Max. 1060 g ) / < 5 ppb, 1/EA재고문의ea6,498,700-7,148,570
G11-220-745-G11-220-745 ZPure™ H2O Purifier/3.8L/H2O: 369 g ( Max. 640 g ) / < 5 ppb, 1/EA재고문의ea6,150,600-6,765,660
G11-220-751-G11-220-751 ZPure™ HC Purifier/3.8L/HC: 327 g ( Max. 1060 g ) / < 5 ppb, 1/EA재고문의ea6,150,600-6,765,660
G11-220-733-G11-220-733 ZPure™ CO2 Purifier/750cc/CO2: 60 g ( Max. 110 g ) / < 5 ppb, 1/EA재고문의ea1,300,800-1,430,880
G11-220-739-G11-220-739 ZPure™ CO2 Purifier/750cc/CO2: 60 g ( Max. 110 g ) / < 5 ppb, 1/EA재고문의ea1,300,800-1,430,880
G11-220-713-G11-220-713 ZPure™ CO2 Purifier/475cc/CO2: 47 g ( Max. 69 g ) / < 5 ppbb, 1/EA재고문의ea1,158,100-1,273,910
G11-220-719-G11-220-719 ZPure™ CO2 Purifier/475cc/, 1/EA재고문의ea1,158,100-1,273,910
G11-220-723-G11-220-723 ZPure™ CO2 Purifier/500cc/CO2: 50 g ( Max. 73 g ) / < 5 ppb, 1/EA재고문의ea1,158,100-1,273,910
G11-220-729-G11-220-729 ZPure™ CO2 Purifier/500cc/CO2: 50 g ( Max. 73 g ) / < 5 ppb, 1/EA재고문의ea1,158,100-1,273,910
G11-220-783-G11-220-783 ZPure™ H₂O + O₂ Purifier/750cc/, 1/EA재고문의ea1,008,000-1,108,800
G11-220-789-G11-220-789 ZPure™ H₂O + O₂ Purifier/750cc/, 1/EA재고문의ea1,008,000-1,108,800
G11-220-831-G11-220-831 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/750cc/1/8", 1/EA재고문의ea891,900-981,090
G11-220-838-G11-220-838 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/750cc/1/4", 1/EA재고문의ea891,900-981,090
G11-220-871-G11-220-871 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/750cc/1/8", 1/EA재고문의ea868,800-955,680
G11-220-879-G11-220-879 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/750cc/1/4", 1/EA재고문의ea868,800-955,680
G11-220-763-G11-220-763 ZPure™ H₂O + O₂ Purifier/475cc/, 1/EA재고문의ea845,500-930,050
G11-220-769-G11-220-769 ZPure™ H₂O + O₂ Purifier/475cc/, 1/EA재고문의ea845,500-930,050
G11-220-773-G11-220-773 ZPure™ H₂O + O₂ Purifier/500cc/, 1/EA재고문의ea845,500-930,050
G11-220-778-G11-220-778 ZPure™ H₂O + O₂ Purifier/500cc/, 1/EA재고문의ea845,500-930,050
G11-220-811-G11-220-811 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/475cc/1/8", 1/EA재고문의ea799,200-879,120
G11-220-818-G11-220-818 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/475cc/1/4", 1/EA재고문의ea799,200-879,120
G11-220-821-G11-220-821 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/500cc/1/8", 1/EA재고문의ea799,200-879,120
G11-220-828-G11-220-828 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/500cc/1/4", 1/EA재고문의ea799,200-879,120
G11-220-851-G11-220-851 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/475cc/1/8", 1/EA재고문의ea752,800-828,080
G11-220-858-G11-220-858 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/475cc/1/4", 1/EA재고문의ea752,800-828,080
G11-220-861-G11-220-861 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/500cc/1/8", 1/EA재고문의ea752,800-828,080
G11-220-869-G11-220-869 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/500cc/1/4", 1/EA재고문의ea752,800-828,080
G11-220-711-G11-220-711 Zpure Purifier/O₂/1/8inch, 1/EA재고문의ea709,300-780,230
G11-220-717-G11-220-717 Zpure Purifier/O₂/1/4inch, 1/EA재고문의ea709,300-780,230
G11-220-703-G11-220-703 ZPure™ CO2 Purifier/130cc/, 1/EA재고문의ea659,900-725,890
G11-220-709-G11-220-709 ZPure™ CO2 Purifier/130cc/CO2: 13 g ( Max. 19 g ) / < 5 ppb, 1/EA재고문의ea659,900-725,890
G11-220-735-G11-220-735 ZPure™ H2O Purifier/750cc/H2O: 72 g ( Max. 124 g ) / < 20 ppb, 1/EA재고문의ea581,100-639,210
G11-220-740-G11-220-740 ZPure™ H2O Purifier/750cc/H2O: 72 g ( Max. 124 g ) / < 20 ppb, 1/EA재고문의ea581,100-639,210
G11-220-741-G11-220-741 ZPure™ HC Purifier/750cc/HC: 63 g ( Max. 206 g ) / < 5 ppb, 1/EA재고문의ea581,100-639,210
G11-220-748-G11-220-748 ZPure™ HC Purifier/750cc/HC: 63 g ( Max. 206 g ) / < 5 ppb, 1/EA재고문의ea581,100-639,210
G11-220-779-G11-220-779 Zpure Purifier/H2O + O2/1/8inch, 1/EA재고문의ea542,700-596,970
G11-220-785-G11-220-785 Zpure Purifier/H2O + O2/1/4inch, 1/EA재고문의ea542,700-596,970
G11-220-715-G11-220-715 ZPure™ H2O Purifier/475cc/, 1/EA재고문의ea520,700-572,770
G11-220-720-G11-220-720 ZPure™ H2O Purifier/475cc/, 1/EA재고문의ea520,700-572,770
G11-220-721-G11-220-721 ZPure™ HC Purifier/475cc/, 1/EA재고문의ea520,700-572,770
G11-220-725-G11-220-725 ZPure™ H2O Purifier/500cc/H2O: 48 g ( Max. 83 g ) / < 20 ppb, 1/EA재고문의ea520,700-572,770
G11-220-728-G11-220-728 ZPure™ HC Purifier/475cc/HC: 40 g ( Max. 131 g ) / < 5 ppb, 1/EA재고문의ea520,700-572,770
G11-220-730-G11-220-730 ZPure™ H2O Purifier/500cc/H2O: 48 g ( Max. 83 g ) / < 20 ppb, 1/EA재고문의ea520,700-572,770
G11-220-731-G11-220-731 ZPure™ HC Purifier/500cc/HC: 42 g ( Max. 137 g ) / < 5 ppb, 1/EA재고문의ea520,700-572,770
G11-220-737-G11-220-737 ZPure™ HC Purifier/500cc/HC: 42 g ( Max. 137 g ) / < 5 ppb, 1/EA재고문의ea520,700-572,770
G11-220-753-G11-220-753 ZPure™ H₂O + O₂ Purifier/130cc/, 1/EA재고문의ea497,500-547,250
G11-220-759-G11-220-759 ZPure™ H₂O + O₂ Purifier/130cc/, 1/EA재고문의ea497,500-547,250
G11-220-801-G11-220-801 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/130cc/1/8", 1/EA재고문의ea462,700-508,970
G11-220-808-G11-220-808 ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line/130cc/1/4", 1/EA재고문의ea462,700-508,970
G11-220-841-G11-220-841 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/130cc/1/8", 1/EA재고문의ea439,400-483,340
G11-220-848-G11-220-848 ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector/130cc/1/4", 1/EA재고문의ea439,400-483,340
G11-220-701-G11-220-701 Zpure Purifier/HC/1/8inch, 1/EA재고문의ea352,700-387,970
G11-220-708-G11-220-708 Zpure Purifier/HC/1/4inch, 1/EA재고문의ea352,700-387,970
G11-220-755-G11-220-755 Zpure Purifier/H2O/1/8inch, 1/EA재고문의ea352,700-387,970
G11-220-761-G11-220-761 Zpure Purifier/H2O/1/4inch, 1/EA재고문의ea352,700-387,970

■ 고성능 Activated Absorbent와 Long Purifier Life

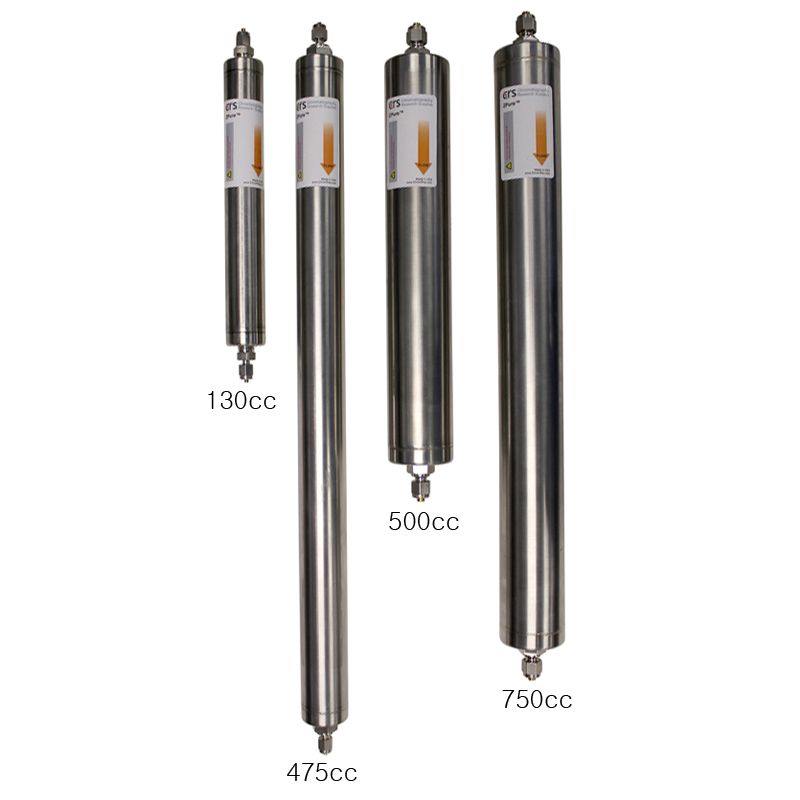

■ 다양한 필터 용량 : 130cc, 475cc, 500cc, 750cc, 3.8L
■ All Stainless Steel Body 와 Compression Fitting
■ Optional Fitting Configuration : 요청에의해 공급 가능
1) Compression Fitting : Max. 1000psi, Brass (1/4or 1/8)
2) Quick Connect Fitting : Max.200psi, SS or Brass (1/4or 1/8)
3) Push-to-Connect Fitting : Max.150psi, Brass ( 1/4` or 6mm )
■ Chromres

Capacity 130cc 475cc 500cc 750cc 3.8L
--- --- --- --- --- ---
Size, mm Φ32 x h280 Φ38 x h570 Φ50 x h350 Φ50 x h500 Φ100 x h640
Max. Pressure 68.9 bar / 1000 psi 13.8 bar / 200 psi 150 psi for Air, N2
80 psi for H2, O2

ZPure™ H2O Purifier ①

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-755 202230-SS 130cc H2O: 12 g ( Max. 22 g ) / < 20 ppb 1/8`
G11-220-761 202231-SS 1/4`
G11-220-715 202230L-SS 475cc H2O: 45 g ( Max. 79 g ) / < 20 ppb 1/8`
G11-220-720 202231L-SS 1/4`
G11-220-725 202230D-SS 500cc H2O: 48 g ( Max. 83 g ) / < 20 ppb 1/8`
G11-220-730 202231D-SS 1/4`
G11-220-735 202230XL-SS 750cc H2O: 72 g ( Max. 124 g ) / < 20 ppb 1/8`
G11-220-740 202231XL-SS 1/4`
G11-220-745 202231M-SS 3.8L H2O: 369 g ( Max. 640 g ) / < 5 ppb 1/4”
G11-220-750 202230M-V 1/2” VCR
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 1 SLPM 3.7 SLPM 3.8 SLPM 5.8 SLPM 30 SLPM
Max. Flow Rate 10 SLPM 36 SLPM 38 SLPM 57 SLPM 200 SLPM

Zpure O2 Purifier ②

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-711 202216-SS 130cc O₂ 2500 cc / < 5 ppb 1/8”
G11-220-717 202217-SS 1/4”

● Nominal Flow Rate : 1 SLPM, Max. Flow Rate : 1 SLPM

ZPure™ HC Purifier ③

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-701 202232-SS 130cc HC: 11 g ( Max. 36 g ) / < 5 ppb 1/8`
G11-220-708 202233-SS 1/4`
G11-220-721 202232L-SS 475cc HC: 40 g ( Max. 131 g ) / < 5 ppb 1/8`
G11-220-728 202233L-SS 1/4`
G11-220-731 202232D-SS 500cc HC: 42 g ( Max. 137 g ) / < 5 ppb 1/8`
G11-220-737 202233D-SS 1/4`
G11-220-741 202232XL-SS 750cc HC: 63 g ( Max. 206 g ) / < 5 ppb 1/8`
G11-220-748 202233XL-SS 1/4`
G11-220-751 202233M-SS 3.8L HC: 327 g ( Max. 1060 g ) / < 5 ppb 1/4”
G11-220-758 202232M-V 1/2” VCR
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 1 SLPM 3.7 SLPM 3.8 SLPM 5.8 SLPM 30 SLPM
Max. Flow Rate 10 SLPM 36 SLPM 38 SLPM 57 SLPM 200 SLPM

ZPure™ CO2 Purifier ④

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-703 202212-SS 130cc CO2: 13 g ( Max. 19 g ) / < 5 ppb 1/8`
G11-220-709 202213-SS 1/4`
G11-220-713 202212L-SS 475cc CO2: 47 g ( Max. 69 g ) / < 5 ppbb 1/8`
G11-220-719 202213L-SS 1/4`
G11-220-723 202212D-SS 500cc CO2: 50 g ( Max. 73 g ) / < 5 ppb 1/8`
G11-220-729 202213D-SS 1/4`
G11-220-733 202212XL-SS 750cc CO2: 60 g ( Max. 110 g ) / < 5 ppb 1/8`
G11-220-739 202213XL-SS 1/4`
G11-220-749 202212M-V 3.8L CO2: 300 g ( Max. 564 g ) / < 5 ppb 1/2” VCR
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 650 cc/min 2.5 SLPM 2.5 SLPM 4 SLPM < 20 SLPM

ZPure™ H₂O + O₂ Purifier ⑤

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-753 202295-SS 130cc O₂: 275cc ( Max. 463cc ), H₂O : 4.3 g ( Max. 6.6 g ) / O₂: < 5 ppb, H₂O : < 20 ppb 1/8`
G11-220-759 202296-SS 1/4`
G11-220-763 202295L-SS 475cc O₂: 1020cc ( Max. 1691cc ), H₂O : 15.9 g ( Max. 24.1 g ) / O₂: < 5 ppb, H₂O : < 20 ppb 1/8`
G11-220-769 202296L-SS 1/4`
G11-220-773 202295D-SS 500cc O₂: 1060cc ( Max. 1780cc ), H₂O : 16.7 g ( Max. 25.3 g ) / O₂: < 5 ppb, H₂O : < 20 ppb 1/8`
G11-220-778 202296D-SS 1/4`
G11-220-783 202295XL-SS 750cc O₂: 1500cc ( Max. 2671cc ), H₂O : 25 g ( Max. 38 g ) / O₂: < 5 ppb, H₂O : < 20 ppb 1/8`
G11-220-789 202296XL-SS 1/4`
G11-220-793 202296M-SS 3.8L O₂: 8100cc ( Max. 13658cc ), H₂O : 129 g ( Max. 196 g ) / O₂: < 5 ppb, H₂O : < 20 ppb 1/4”
G11-220-799 202295M-V 1/2” VCR
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 430 cc/min 1.3 SLPM 1.6 SLPM 2.5 SLPM 14 SLPM
Max. Flow Rate 1.4 SLPM 4.9 SLPM 5.2 SLPM 7.7 SLPM 40 SLPM

Zpure Dual Purifier, H₂O + O₂ 제거용 ⑥

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-779 202206-SS 130cc O₂: 600cc, H2O : 6.0g /
O₂: < 5 ppb, H2O: < 20 ppb
1/8”
G11-220-785 202207-SS 1/4”

● Nominal Flow Rate : 1 SLPM, Max. Flow Rate : 1 SLPM

ZPure™ PolyGas I Purifier, Triple Filter for GC & GC/MS Carrier Gas Line ⑦

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-801 202285-SS 130cc O₂: 178cc (Max. 301cc), H₂O : 2.8g (Max. 4.3g), HC : 3.75g (Max. 12.5g) / O₂: < 5 ppb, H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-808 202286-SS 1/4`
G11-220-811 202285L-SS 475cc O₂: 649cc (Max. 1100cc), H₂O : 10.3g (Max. 15.7g), HC : 13.7g (Max. 45.7g) / O₂: < 5 ppb, H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-818 202286L-SS 1/4`
G11-220-821 202285D-SS 500cc O₂: 683cc (Max. 1158cc), H₂O : 10.9g (Max. 16.5g), HC : 14.4g (Max. 48.1g) / O₂: < 5 ppb, H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-828 202286D-SS 1/4`
G11-220-831 202285XL-SS 750cc O₂: 1024cc (Max. 1737cc), H₂O : 16.3g (Max. 24.8g), HC : 21.6g (Max. 72.1g) / O₂: < 5 ppb, H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-838 202286XL-SS 1/4`
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 320 cc/min 1 SLPM 1.2 SLPM 1.9 SLPM -
Max. Flow Rate 1 SLPM 3.7 SLPM 3.9 SLPM 5.8 SLPM -

● Removes a Wide Range of Contaminants Including O2, H2O, CO2, CO, Halogenated Compounds, Siloxanes,

Hydrocarbons Heavier than Butane, Sulfur-containing Molecules, Ammonia and Other Gases

ZPure™ PolyGas II Purifier, for GC Flame Ionization Detector

Cat. No Model 용량 Trap 용량 / Efficiency Fitting
G11-220-841 202287-SS 130cc H₂O : 6.2g (Max. 9.45g), HC : 5.4g (Max. 17.86g) / H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-848 202288-SS 1/4`
G11-220-851 202287L-SS 475cc H₂O : 22.7g (Max. 34.5g), HC : 19.6g (Max. 65.3g) / H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-858 202288L-SS 1/4`
G11-220-861 202287D-SS 500cc H₂O : 23.9g (Max. 36.3g), HC : 20.6g (Max. 68.7g) / H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-869 202288D-SS 1/4`
G11-220-871 202287XL-SS 750cc H₂O : 35.9g (Max. 54.5g), HC : 30.9g (Max. 103g) / H₂O : < 20 ppb, HC : < 5 ppb 1/8`
G11-220-879 202288XL-SS 1/4`
Capacity 130cc 475cc 500cc 750cc 3.8L
Nominal Flow Rate 320 cc/min 1 SLPM 1.2 SLPM 1.9 SLPM -
Max. Flow Rate 1 SLPM 3.7 SLPM 3.9 SLPM 5.8 SLPM -

● Removes H2O, CO2, Halogenated Compounds, Siloxanes, Hydrocarbons Heavier than Butane,

Sulfur-containing Molecules, Ammonia and Other Gases
