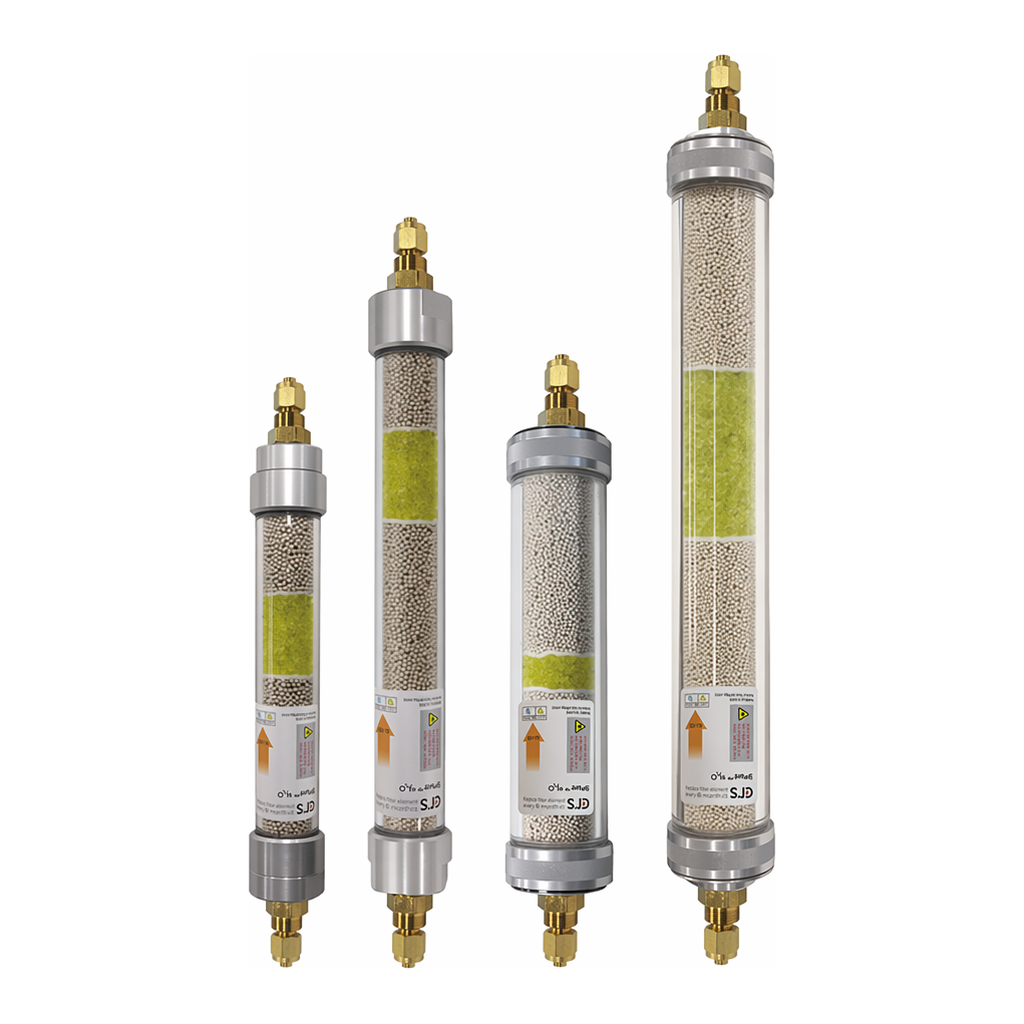

SPure™ Inline Gas Filter, Plastic Body 플라스틱 케이스 가스 정제관
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
■ General Purpose용 Moisture, Oil, Dust & Hydrocarbon 트렙
■ 재질 : PC or Acrylic(400cc only) Body, Aluminum Endcap
■ Compressed Fitting : Brass or SS(Option), Push-to-connect Fitting
■ 고압의 Compressed Air Line이나 GC Carrier Gas와 같이 사용에 적당하지 않음
■ Hazardous, Flammable, or Reactive Gas와 같이 사용에 적당하지 않음
■ Cobalt-free Moisture Indicator Signal : Green to Blue, at 5% Relative Humidity
■ Chromres

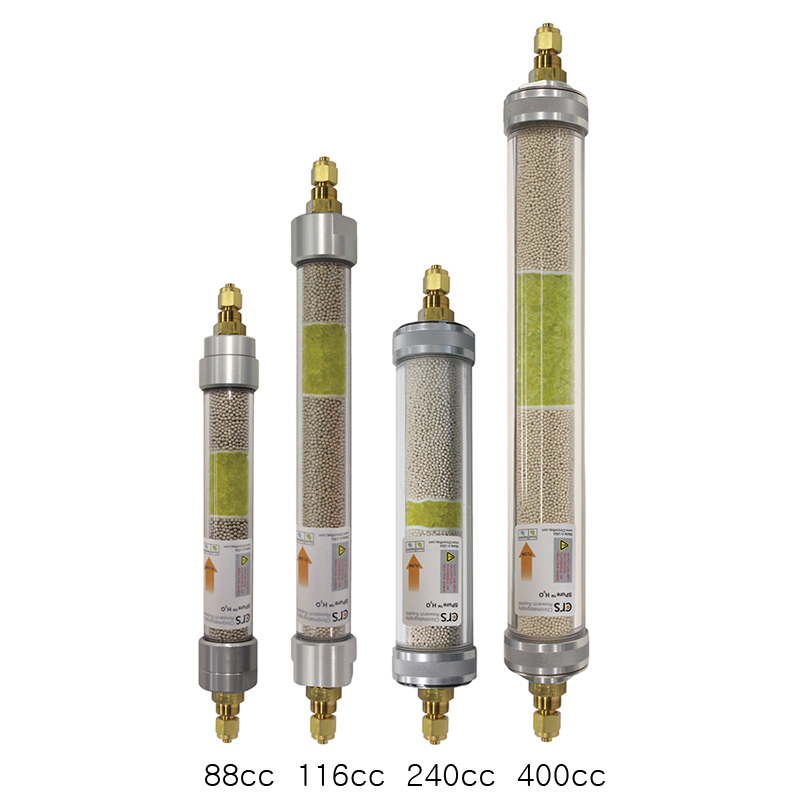

| Capacity | 88cc | 116cc | 240cc | 400cc |
| --- | --- | --- | --- | --- |
| Housing Material | Polycarbonate | Acrylic | ||
| Size, Compression Fitting | Φ38 x h263 mm | Φ38 x h318 mm | Φ56 x h285 mm | Φ56 x h419 mm |
| Size, Push-to-connect Fitting | Φ38 x h243 mm | Φ38 x h298 mm | Φ56 x h265 mm | Φ56 x h399 mm |
| Max. Pressure | 6.89 bar / 100 psi |
SPure™ H2O Purifier ①, 플라스틱 케이스 수분 트랩
Indicator : Green to Blue (at 5% Relative Humidity)
| Cat. No | Model | 용량 | Trap 용량 | Fitting |
|---|---|---|---|---|
| G11-220-535 | 202238-B | 88 cc | H2O: 6.3 g ( Max. 11.0 g ) | 1/8` Brass Compression |
| G11-220-541 | 202239-B | 1/4` Brass Compression | ||
| G11-220-502 | 202238-4-PC | 1/4` Push-to-connect | ||
| G11-220-506 | 202238-6-PC | 6mm Push-to-connect | ||
| G11-220-510 | 202238L-B | 116 cc | H2O: 8.3 g ( Max. 14.4 g ) | 1/8` Brass Compression |
| G11-220-514 | 202239L-B | 1/4` Brass Compression | ||
| G11-220-518 | 202238L-4-PC | 1/4` Push-to-connect | ||
| G11-220-522 | 202238L-6-PC | 6mm Push-to-connect | ||
| G11-220-526 | 202238D-B | 240 cc | H2O: 17.2 g ( Max. 29.9 g ) | 1/8` Brass Compression |
| G11-220-530 | 202239D-B | 1/4` Brass Compression | ||
| G11-220-534 | 202238D-4-PC | 1/4` Push-to-connect | ||
| G11-220-538 | 202238D-6-PC | 6mm Push-to-connect | ||
| G11-220-547 | 202238XL-B | 400 cc | H2O: 28.6 g ( Max. 49.8 g ) | 1/8` Brass Compression |
| G11-220-563 | 202239XL-B | 1/4` Brass Compression | ||
| G11-220-550 | 202238XL-4-PC | 1/4` Push-to-connect | ||
| G11-220-554 | 202238XL-6-PC | 6mm Push-to-connect |
| Capacity | 88 cc | 116 cc | 240 cc | 400 cc |
| Nominal Flow Rate | 0.68 SLPM | 0.9 SLPM | 1.85 SLPM | 3.0 SLPM |
| Max. Flow Rate | 6.8 SLPM | 9.0 SLPM | 18.5 SLPM | 30.0 SLPM |
SPure™ HC Purifier ②, 플라스틱 케이스 탄화수소 트랩
| Cat. No | Model | 용량 | Trap 용량 | Fitting |
|---|---|---|---|---|
| G11-220-600 | 202326-B | 88 cc | HC: 7.3 g ( Max. 24.2 g ) | 1/8` Brass Compression |
| G11-220-603 | 202327-B | 1/4` Brass Compression | ||
| G11-220-608 | 202326-4-PC | 1/4` Push-to-connect | ||
| G11-220-611 | 202326-6-PC | 6mm Push-to-connect | ||
| G11-220-616 | 202326L-B | 116 cc | HC: 9.6 g ( Max. 31.9 g ) | 1/8` Brass Compression |
| G11-220-621 | 202327L-B | 1/4` Brass Compression | ||
| G11-220-624 | 202326L-4-PC | 1/4` Push-to-connect | ||
| G11-220-628 | 202326L-6-PC | 6mm Push-to-connect | ||
| G11-220-632 | 202326D-B | 240 cc | HC: 19.8 g ( Max. 66.0 g ) | 1/8` Brass Compression |
| G11-220-636 | 202327D-B | 1/4` Brass Compression | ||
| G11-220-641 | 202326D-4-PC | 1/4` Push-to-connect | ||
| G11-220-644 | 202326D-6-PC | 6mm Push-to-connect | ||
| G11-220-648 | 202326XL-B | 400 cc | HC: 33.0 g ( Max. 110.0 g ) | 1/8` Brass Compression |
| G11-220-652 | 202327XL-B | 1/4` Brass Compression | ||
| G11-220-656 | 202326XL-4-PC | 1/4` Push-to-connect | ||
| G11-220-660 | 202326XL-6-PC | 6mm Push-to-connect |
| Capacity | 88 cc | 116 cc | 240 cc | 400 cc |
| Nominal Flow Rate | 0.68 SLPM | 0.9 SLPM | 1.85 SLPM | 3.0 SLPM |
| Max. Flow Rate | 3.4 SLPM | 4.5 SLPM | 9.25 SLPM | 15.0 SLPM |
SPure™ H2O / HC Purifier ③, 플라스틱 케이스 수분 / 탄화수소 트랩
Indicator : Green to Blue (at 5% Relative Humidity)
| Cat. No | Model | 용량 | Trap 용량 | Fitting |
|---|---|---|---|---|
| G11-220-664 | 202324-B | 88 cc | H2O: 4.2 g ( Max. 7.3 g ) / HC: 2.9 g ( Max. 9.7 g ) |
1/8` Brass Compression |
| G11-220-668 | 202325-B | 1/4` Brass Compression | ||
| G11-220-671 | 202324-4-PC | 1/4` Push-to-connect | ||
| G11-220-674 | 202324-6-PC | 6mm Push-to-connect | ||
| G11-220-679 | 202324L-B | 116 cc | H2O: 5.5 g ( Max. 9.6 g ) / HC: 3.8 g ( Max. 12.8 g ) |
1/8` Brass Compression |
| G11-220-684 | 202325L-B | 1/4` Brass Compression | ||
| G11-220-688 | 202324L-4-PC | 1/4` Push-to-connect | ||
| G11-220-672 | 202324L-6-PC | 6mm Push-to-connect | ||
| G11-220-676 | 202324D-B | 240 cc | H2O: 11.5 g ( Max. 19.9 g ) / HC: 7.9 g ( Max. 26.5 g ) |
1/8` Brass Compression |
| G11-220-680 | 202325D-B | 1/4` Brass Compression | ||
| G11-220-683 | 202324D-4-PC | 1/4` Push-to-connect | ||
| G11-220-687 | 202324D-6-PC | 6mm Push-to-connect | ||
| G11-220-692 | 202324XL-B | 400 cc | H2O: 19.1 g ( Max. 33.2 g ) / HC: 13.2 g ( Max. 44.1 g ) |
1/8` Brass Compression |
| G11-220-696 | 202325XL-B | 1/4` Brass Compression | ||
| G11-220-705 | 202324XL-4-PC | 1/4` Push-to-connect | ||
| G11-220-710 | 202324XL-6-PC | 6mm Push-to-connect |
| Capacity | 88 cc | 116 cc | 240 cc | 400 cc |
| Nominal Flow Rate | 0.68 SLPM | 0.9 SLPM | 1.85 SLPM | 3.0 SLPM |
| Max. Flow Rate | 3.4 SLPM | 4.5 SLPM | 9.25 SLPM | 15.0 SLPM |
🏷️Lklab Korea 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Lklab Korea
ZPure™ Glass Indicating Purifier, Visual Indicator 안전 유리 가스 지시관
35,300원
Lklab Korea
ZPure™ Inline Gas Filter, Stainless Steel 고효율 가스 정제관
377,300원
Lklab Korea
SPure™ Inline Gas Filter, Plastic Body 플라스틱 케이스 가스 정제관
275,800원
Lklab Korea
Vertical Air Crimper 버티칼 에어 크림퍼
439,900원
Lklab Korea

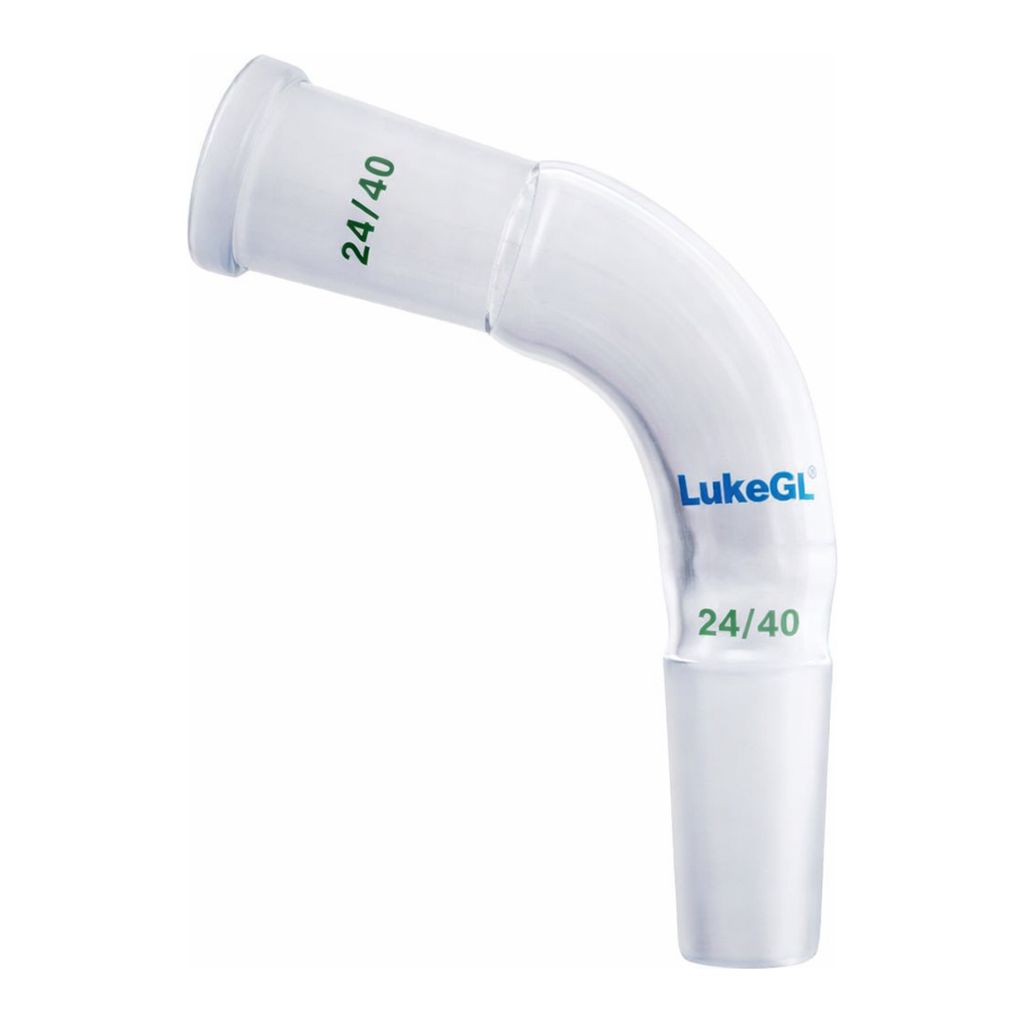

Adapter, 105˚ or 90˚ or 75˚ Bent 곡형 어댑터, LukeGL
