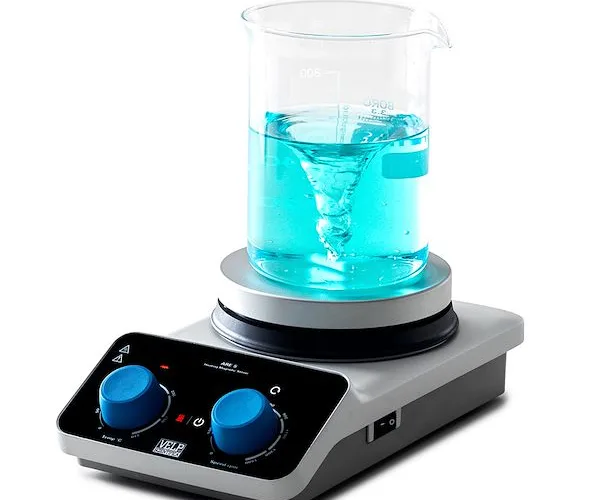

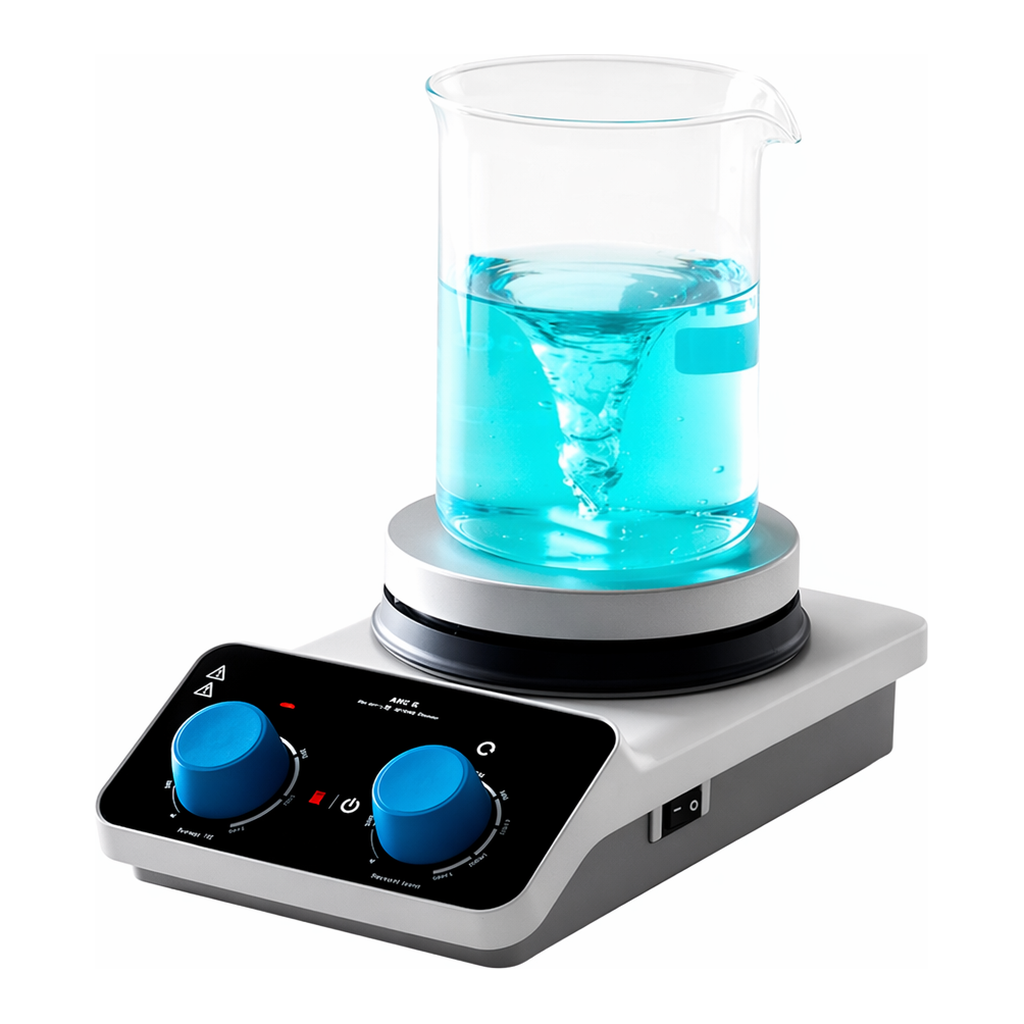

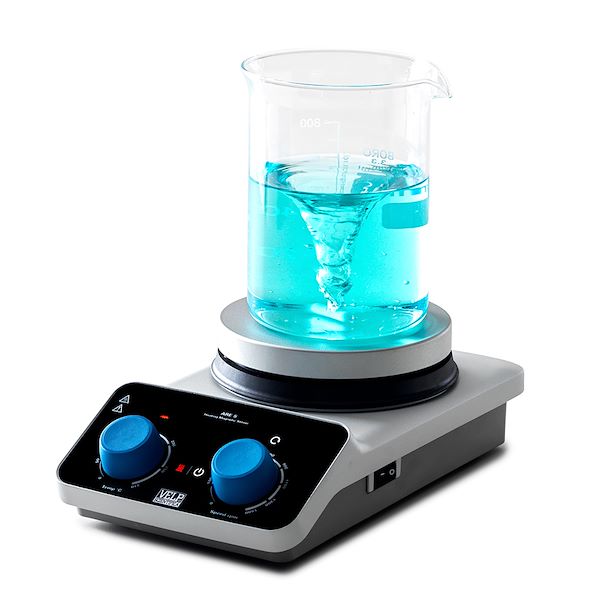

VELP ARE 5 Hot Plate Stirrer

Easy-to-use, Safe and Designed to Last

The ARE 5 Hotplate Stirrer is the product of choice since 1983 for basic heating and stirring laboratory requirements. A reference for many laboratories around the world ranging from universities and research centers to industrial laboratories.

The 135 mm diameter aluminum alloy top plate ensures great temperature homogeneity and optimum heat transfer across the entire surface.

Two illuminated indicators always inform the operator when the heating is on. Furthermore, the icon stays on when the temperature of the plate is above 50°C even if the instrument is switched off.

The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the ARE 5 to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).

In addition, the ARE 5 hotplate stirrer is IP42 certified and it is backed up by a 3-year warranty (online product registration required).

Consistent stirring and heating performance for general lab applications

You can rely on the robust ARE 5 and its powerful brushless motor for everyday laboratory applications stirring volumes up to 15 liters (H2O).

By turning the left knob of the ARE 5 it is possible to adjust the temperature up to 310 °C, whilst the right one allows setting the stirring speed from 100 up to 1500 rpm.

The ARE 5 is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.

TECHNICAL DATA

USER INTERFACE	Analog
HOUSING MATERIAL:	Epoxy painted aluminum structure
PLATE MATERIAL:	Aluminum alloy
PLATE DIAMETER:	135 mm
STIRRING VOLUME	15 L
STIRRING SPEED RANGE	100 - 1500 rpm
SPEED CONTROL	Analog
MOTOR	Brushless
TORQUE COMPENSATION	SpeedServo™
TEMPERATURE RANGE	Room temp - 310 °C
HEATING CONTROL	Analog
HOT PLATE WARNING SYSTEM	Illuminated Icon (when the temperature is above 50 °C)
PROTECTION CLASS	IP 42
POWER INPUT	630 W
WEIGHT:	1,7 kg (3,7 lb)
DIMENSIONS (WXHXD):	160x270x85 mm (6,3x10,6x3,3 in)

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

ARE/AREX 5 Hot Plate Stirrers - Brochure [EN]
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use

ARE 5, AREX 5, RC 5 instruction manual

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Heating Magnetic Stirrers ARE-AREX 5 Comparison Table

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica Hotplate Stirrers Aluminum

CB Certificate VELP Scientifica ARE 5

cNEMKOus VELP Scientifica Round Top Hot Plate Stirrers
