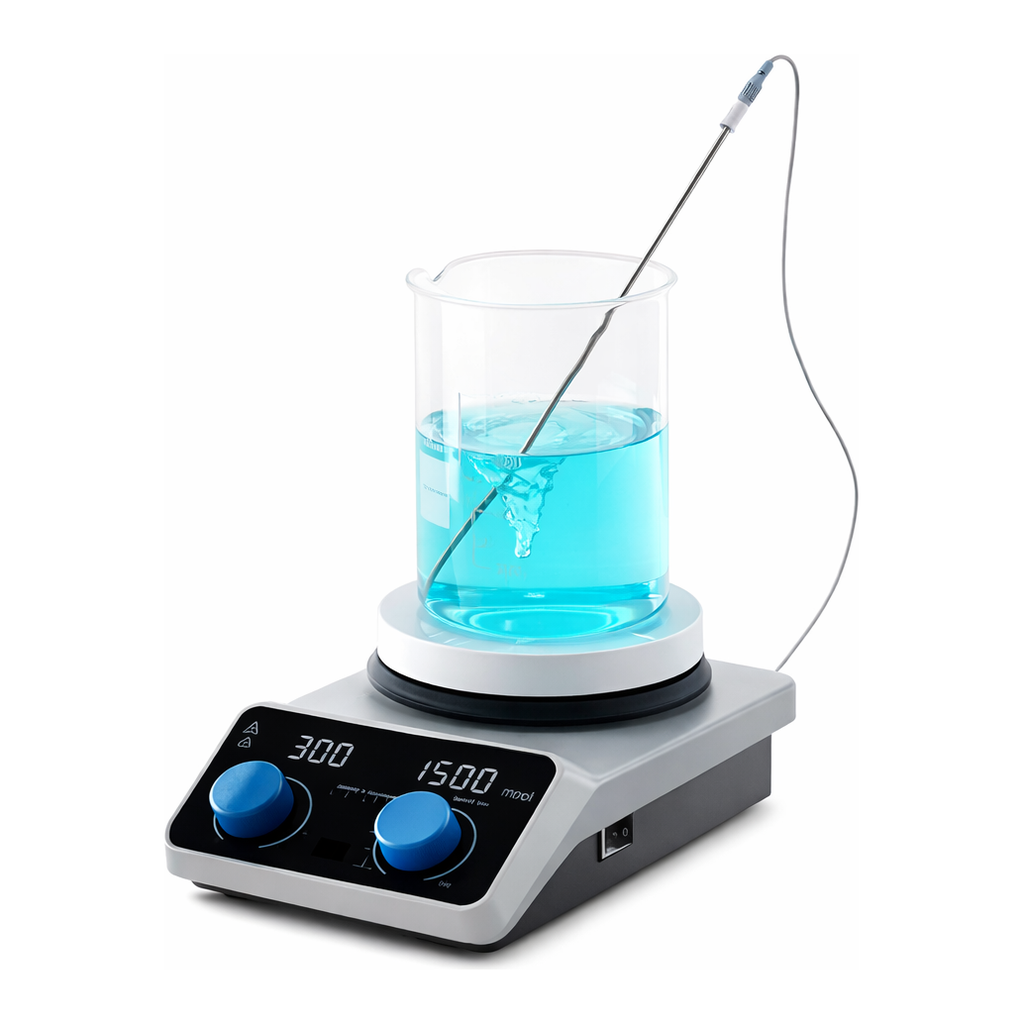

F20500580VELP F20500580 AREX 5, Digital Hot Plate Stirrer, 디지털 가열 마그네틱 교반기 set재고문의set950,000-1,045,000


Precise thermoregulation for a high reproducibility

The AREX 5 Digital is the perfect solution for temperature-sensitive laboratory applications where precise and accurate thermoregulation of the sample is required to ensure maximum reproducibility.

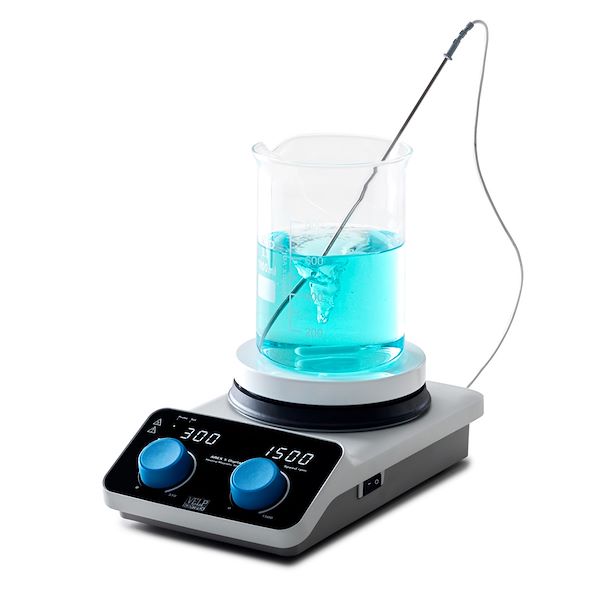

The AREX 5 Digital can be connected to** external probes Pt100 and Pt1000** or to the VTF for precise temperature control of the medium

The CerAlTopTM plate reaches a maximum temperature of 310°C; when connected with the temperature probe (Pt100 and Pt1000) the AREX 5 Digital is able to heat up the medium up to 310°C with an accuracy of ± 1.0 °C while with the VTF the AREX 5 Digital is able to heat up the medium up to 300°C with an accuracy of ± 0.5 °C.

When the hotplate stirrer is connected to a temperature probe, it is possible to choose 2 different thermoregulation modes to match all requirements:

  • FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
  • FINE: slower temperature set point reaching with an optimized overshoot

Choose the most suitable AREX 5 Digital configuration in the MODEL section of the page.

Powerful stirring for all lab applications

You can rely on the powerful brushless motor of the AREX 5 Digital for all of your laboratory reactions as it stirs volumes up to 20 L (H2O).

Speed setting is precise ranging from 50 to 1500 rpm making the AREX 5 Digital suitable for both low and high-speed applications.

The AREX 5 Digital is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.

The strong magnetic coupling supports reactions with multiple vials ensuring constant speed in all positions, visit our accessories section for more details.


A Safe Hotplate Stirrer Designed to Last

The AREX 5 Digital hotplate stirrer ensures a high level of safety and protection for laboratory operators.

The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the AREX 5 Digital to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).

The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CerAlTop™ ceramic coating.

Various safety functions protect users in their daily operations, such as safety circuits, over-temperature protection and probe detection alarm. It is also possible to limit the maximum operating temperature to meet the highest safety needs.

A security message "Hot" is displayed when the temperature of the plate is above 50°C and the heating function is not active.

The AREX 5 Digital is designed for the most extended lifespan (IP 42 protection) and guaranteed by a 3-year warranty (online product registration required).


A smart user interface for incredible ease of use

Thanks to the extremely bright and easy-to-read digital display you can constantly monitor the temperature and the stirring speed and set them with the highest precision.

The inclination of the front panel has been carefully designed to optimize the user experience for all the lab users and to clearly read the values shown on the digital displays.

To set the temperature and stirring speed it is required to turn and push the knobs for maximum safety.

The hot plate magnetic stirrer AREX 5 Digital offers a highly compact and low-profile design for outstanding comfort over the bench and inside the laboratory hood.

TECHNICAL DATA

USER INTERFACE Digital
HOUSING MATERIAL Epoxy painted aluminum structure
PLATE MATERIAL CerAlTop™ (ceramic coated aluminum alloy)
PLATE DIAMETER 135 mm
STIRRING VOLUME 20 L
STIRRING SPEED RANGE 50 - 1500 rpm
SPEED CONTROL Digital
MOTOR Brushless
TORQUE COMPENSATION SpeedServo™
TEMPERATURE RANGE Room temp - 310 °C
HEATING CONTROL Digital
TEMPERATURE SETTING RESOLUTION 1 °C
EXTERNAL TEMPERATURE SENSOR CONNECTION Pt100
Pt1000
VTF
THERMOREGULATION ACCURACY ± 0.5 °C (VTF)
± 1.0 °C (Pt100, Pt100)
HOT PLATE WARNING SYSTEM On Display (when the temperature is above 50 °C)
PROTECTION CLASS IP 42
POWER INPUT 630 W
WEIGHT 1,7 kg (3,7 lb)

Brochures & Leaflets

VELP Scientifica invites you to download brochures and leaflets in order to explore our premium quality solutions and to have all the major key arguments, features and specifications of a product in your hands, in any place, and at any time.

ARE/AREX 5 Hot Plate Stirrers - Brochure [EN]
Laboratory Equipment - Line Brochure [EN]
Product Portfolio - Brochure [EN]

Instruction manuals

Download the instruction manual that contains all the main technical specifications of the instrument and the necessary information for its correct use

ARE 5, AREX 5, RC 5 instruction manual

Comparison tables

Select the category of products you are interested in and this tool will give you an easy overview of what is available at VELP in order to find the product that is perfect for you. These comparison tables provide a brief description with side by side features from basic equipment to the most advanced analytical solutions.

VELP Heating Magnetic Stirrers ARE-AREX 5 Comparison Table

Certifications

Our compliance to statutory rules and regulations worldwide.
With the CE mark, VELP Scientifica declares that the products are designed and manufactured in compliance with the essential safety requirements of the European Directive on Safety.
The Certification Body (CB) Certificate is an international program created by the IECEE for the acceptance of product safety test results among participating laboratories and certification organizations around the world.
The cNEMKOus mark ensures this product is designed and manufactured in compliance with the International Directive on Safety IEC/EN 61010-1. The cNEMKOus mark has the same legal status as any other NRTL/SCC accredited marks, for U.S. and Canada.

CE Declaration of Conformity VELP Scientifica Hotplate Stirrers Aluminum

CB Certificate VELP Scientifica ARE 5

cNEMKOus VELP Scientifica Round Top Hot Plate Stirrers
