Servicebio

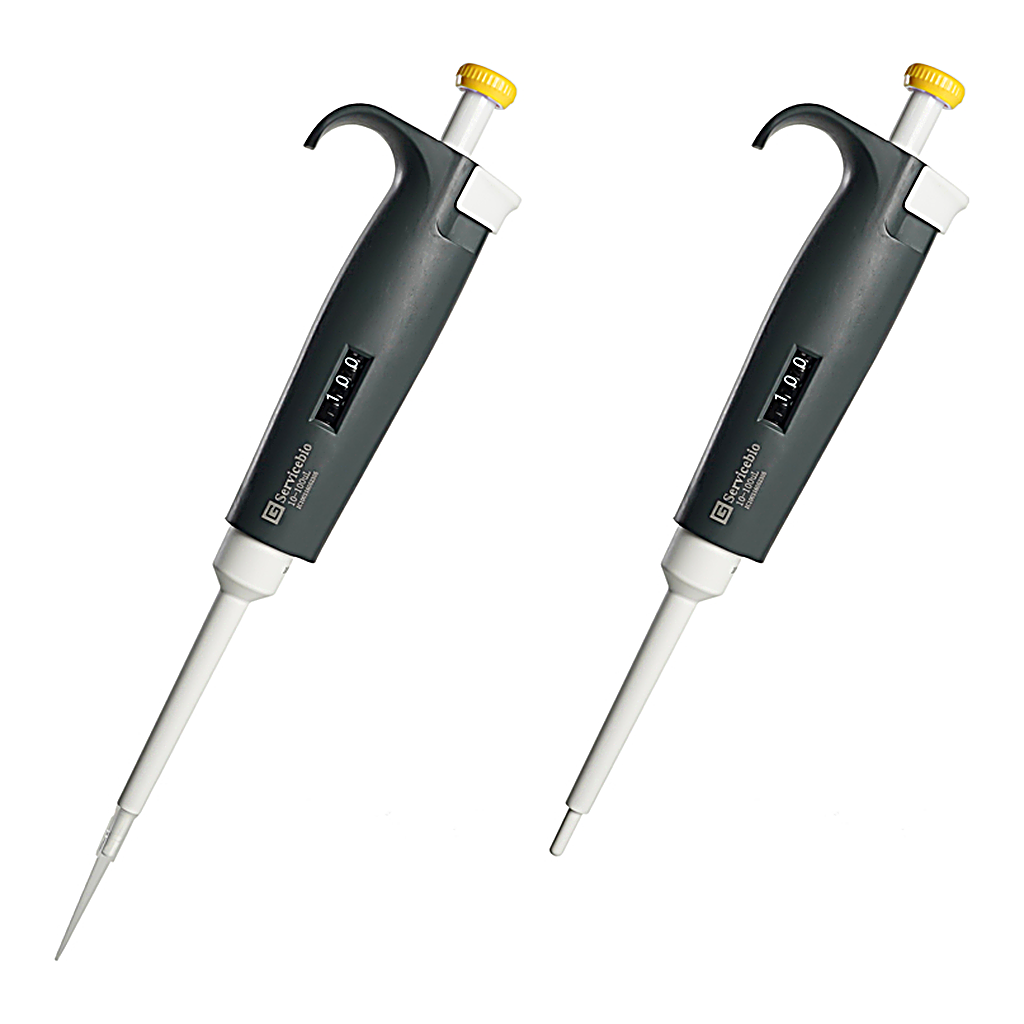

Servicebio Pipette

상품 한눈에 보기

다양한 용량 범위와 멀티컬러 표시로 구분이 쉬운 Servicebio 피펫은 단일 및 다채널 옵션을 제공합니다. 인체공학적 설계로 피로를 줄이고, ISO 8655-2:2022 기준에 따라 정밀하게 교정되어 높은 정확도를 보장합니다. 대부분의 팁과 호환되며 CE 인증을 획득했습니다.

브랜드
Servicebio
카테고리
Manual Pipettes
판매단위
pk
#Pipettes#Manual Pipettes

카탈로그

1개 옵션
회원가입 없이 바로 구매하세요
가입하지 않아도 비회원가로 구매하실 수 있습니다.

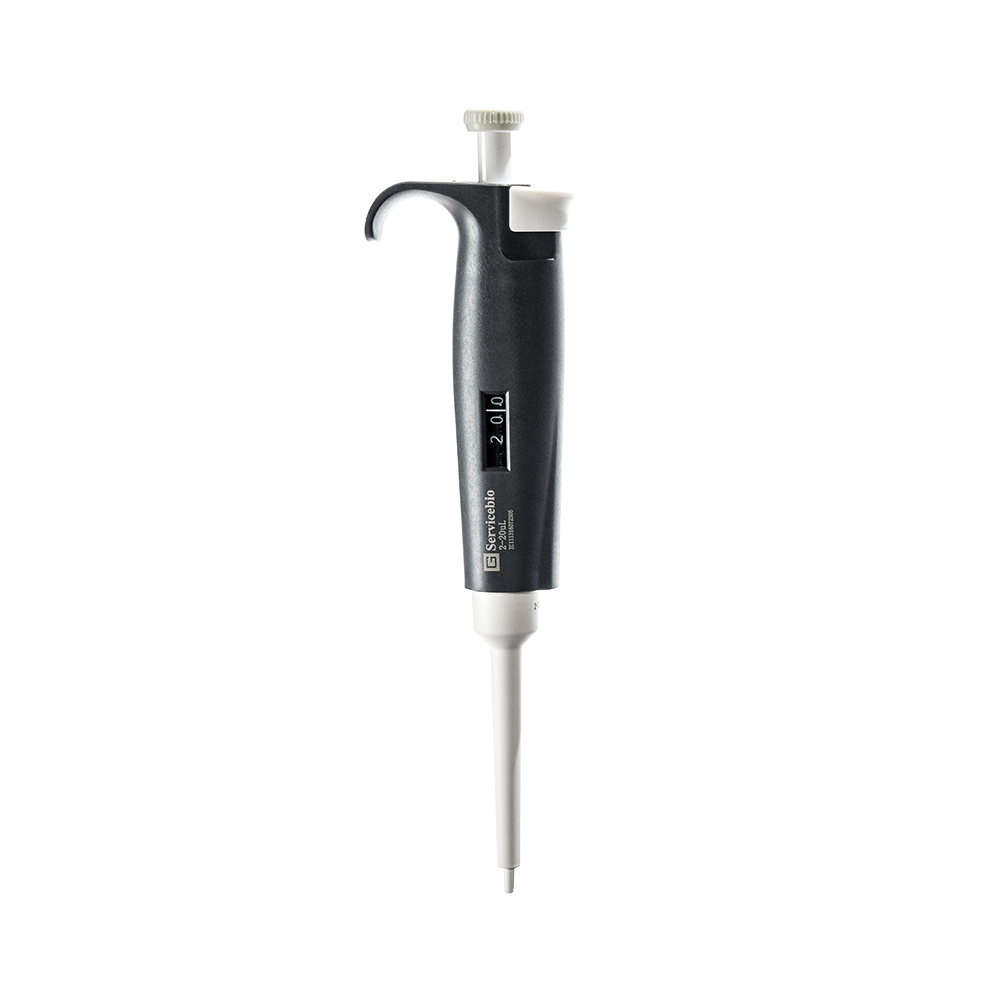

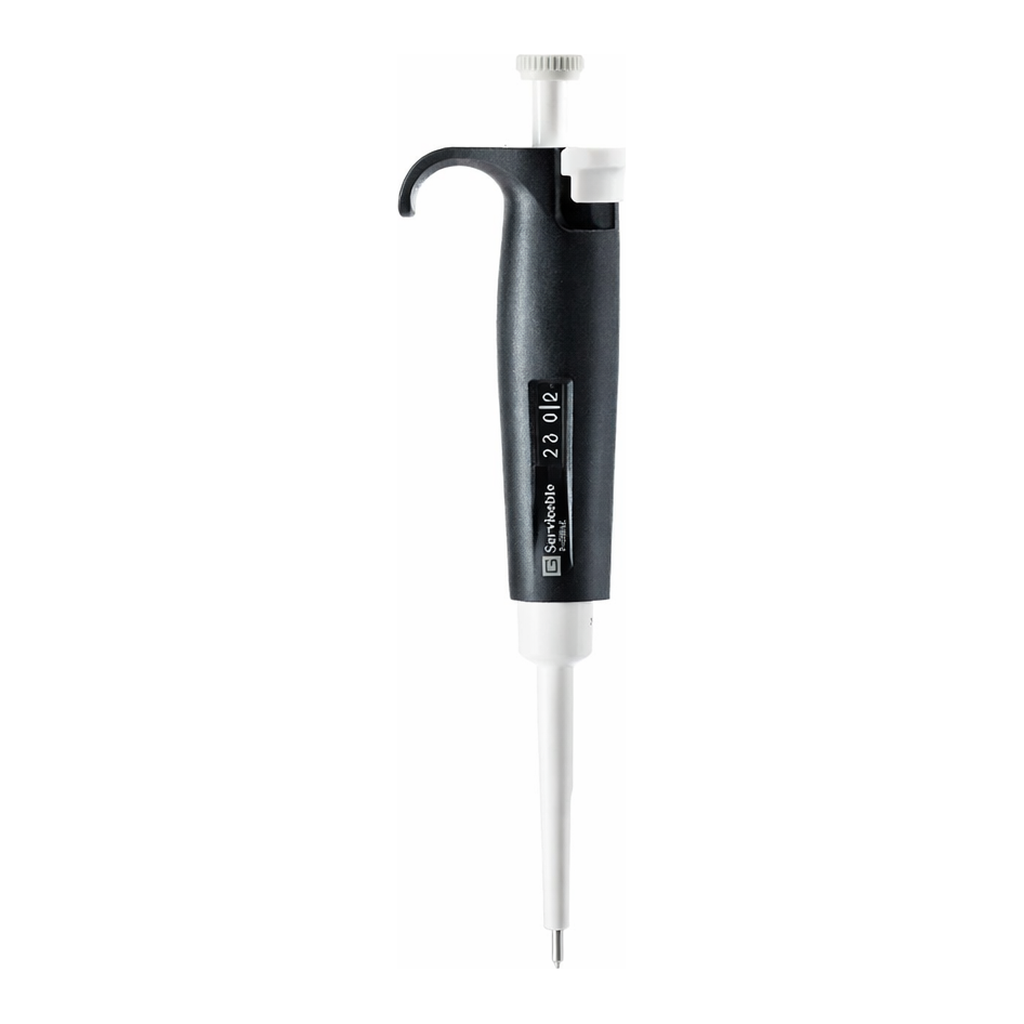

Servicebio SPIP-20L Pipette white/black 2-20ul, single channel (for 10ul tip and 10ul long tip) pk판매 단위 pk ·
재고 확인 필요
91,300원VAT 포함 100,430원
재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Servicebio · Servicebio Pipette

Product Introduction

A pipette is a device used to transfer liquid quantitatively. In analytical testing research, it is generally used for small or microliter volumes.
There are 8 colors to choose from, and exclusive lucky colors can be customized.

SPIP-20L Pipette Compatibility Chart

Pipette Pipette Tips Spec. Details Pipette Tips Cat. No.
SPIP-20L 10 μL Racked (Sterile, DNase&RNase Free) TP-10-C
Bagged (DNase&RNase Free) TP-10
10 μL Long, Racked (Sterile, DNase&RNase Free) TP-10P-C
Bagged (DNase&RNase Free) TP-10P
10 μL with Filter (Unable to aspirate up to 20 μL) TP-10-C-F
10 μL Long with Filter (Able to aspirate up to 20 μL) TP-10P-C-F

Product Features

  1. Multiple volume ranges with multi-color markings; single and multi-channel options.
  2. Lightweight spring for easy operation.
  3. Equipped with Servicebio tips for good air tightness and accurate transfer.
  4. Compatible with most tips on the market.
  5. CE certified; complies with ISO 8655-2:2022 international standard.

Product Parameters

Product Name Product No. Nominal Volume Volume Range Increment
Single Channel Pipette SPIP-2.5 2.5 μL 0.1–2.5 μL 0.05 μL
SPIP-10 10 μL 1–10 μL 0.1 μL
SPIP-20L 20 μL 2–20 μL (for 10 μL and 10 μL-long tips) 0.1 μL
SPIP-20 20 μL 2–20 μL (for 200 μL tips) 0.1 μL
SPIP-50 50 μL 5–50 μL (for 10 μL-long and 10 μL tips) 0.5 μL
SPIP-100 100 μL 10–100 μL 1 μL
SPIP-200 200 μL 20–200 μL 1 μL
SPIP-1000 1000 μL 100–1000 μL 5 μL
SPIP-5000 5000 μL 1000–5000 μL 50 μL
SPIP-10000 10 mL 1–10 mL 100 μL
8-Channel Pipette SPIP-B10 10 μL 1–10 μL 0.1 μL
SPIP-B20L 20 μL 2–20 μL 0.1 μL
SPIP-B50 50 μL 5–50 μL 0.5 μL
SPIP-B100 100 μL 10–100 μL 1 μL
SPIP-B300 300 μL 50–300 μL 1 μL
SPIP-B1000 1000 μL 100–1000 μL 5 μL

Additional Product Features

  • Single channel: 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, 1–10 mL; 10 sizes available.
  • Multi-channel: 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, 100–1000 μL; 6 sizes available.
  • Lightweight ergonomic design reduces hand fatigue; light spring mechanism for easy operation.
  • Large digital display shows volume clearly.
  • Made of high-strength, corrosion-resistant, UV-stable materials.
  • Color-coded handles for easy identification.
  • Compatible with most pipette tips on the market.
  • Calibrated according to EN/ISO8655 standard with strict quality control.

Pipette Structure (from image)

  • Push Button / Volume Turn Button (Top Cap)
  • Push Rod
  • Handle Grippy
  • Tip Ejection Button
  • Handle
  • Volume Display
  • Tip Ejection Pipe
  • Pipe Tip

Device marking:

Servicebio
2–20 μL Adjustable Pipette
Display: 2.0

Pipette Operation

Forward Technique (for low-density liquids)

  1. Press the push button to the first STOP.
  2. Slowly release to the ready position to aspirate liquid.
  3. Deliver liquid by pressing to the first STOP, then continue to the second STOP to empty.
  4. Release to ready position and change tip if needed.

Reverse Technique (for high-viscosity or volatile liquids)

  1. Depress button to the second STOP, then release slowly to aspirate slightly more than preset volume.
  2. Press to the first STOP to dispense preset volume.
  3. Discard remaining liquid with the tip.

Position Reference: Ready Position → First STOP → Second STOP

Calibration and Adjustment

Use the Service Tool as shown:

  • Turn clockwise to increase volume.
  • Turn counterclockwise to decrease volume.
  • Calibrate 1–2 times per year depending on usage.

Note: “Mantissa (Increment)” refers to the product data sheet.

Storage and Transportation

Store and transport at room temperature.

Notice

  1. Ensure pipette and tips are at the same temperature before use. Hold upright and immerse tip 2–3 mm below liquid surface. Pre-wet tip for viscous or dense liquids.
  2. Do not invert or lay flat when tip contains liquid. Use a pipette stand.
  3. Operate within the specified volume range.
  4. Apply maintenance oil to sealing ring for long-term storage.
  5. For disassembly or repair, contact a professional technician.

Pipette and Tip Adaptation Table

Pipette Specifications

Cat. No. SPP-2.5 SPP-10 SPP-20 SPP-20L SPP-50 SPP-100 SPP-200 SPP-1000 SPP-5000 SPP-10000 SPP-810 SPP-820L SPP-850 SPP-830 SPP-830L SPP-81000
Name Pipette Pipette Pipette Pipette Pipette Pipette Pipette Pipette Pipette Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette 8-channel Pipette
Spec. 0.1–2.5 μL 0.5–10 μL 2–20 μL (for long tips, 10 μL tips) 5–50 μL (for long tips, 10 μL tips) 10–100 μL 20–200 μL 100–1000 μL 0.5–5000 μL 0.5–10000 μL 0.5–10000 μL 0.5–10 μL (for long tips, 10 μL tips) 2–20 μL (for long tips, 10 μL tips) 5–50 μL 10–300 μL 10–300 μL 10–1000 μL

Standard Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-20L | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-850 | SPP-830 | SPP-830L | SPP-81000 |
|-----------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C / TP-10 | 10 μL | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-10P-C / TP-10P | 10 μL Long | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-200-C / TP-200 | 200 μL | | | | | √ | √ | √ | | | | | | (Unable to aspirate 300 μL) |
| TP-200P-C / TP-200P | 200 μL Long | | | | | √ | √ | √ | | | | | | (Unable to aspirate 300 μL) |
| TP-1000-C / TP-1000 | 1000 μL | | | | | | | √ | √ | | | | | | | |
| TP-1000P-C / TP-1000P | 1000 μL Long | | | | | | | √ | √ | | | | | | | |
| TP-5000L-C / TP-5000L | 5 mL Wide Mouth | | | | | | | | | √ | | | | | | |
| TP-10000-C / TP-10000 | 10 mL | | | | | | | | | | √ | | | | | |

Filter Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-20L | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-850 | SPP-830 | SPP-830L | SPP-81000 |
|-----------|--------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|----------|
| TP-10-C-F | 10 μL | √ | √ | √ | (Unable to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-10P-C-F | 10 μL Long | √ | √ | √ | (Able to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-20-C-F | 20 μL | | | √ | √ | (Unable to aspirate 100 μL) | | | | | | | | √ | (Unable to aspirate 100 μL) |
| TP-100-C-F | 100 μL | | | | | √ | √ | (Unable to aspirate 200 μL) | | | | | | | √ | (Unable to aspirate 300 μL) |
| TP-200-C-F | 200 μL | | | | | | √ | √ | | | | | | | | (Unable to aspirate 300 μL) |
| TP-200P-C-F | 200 μL Long | | | | | | √ | √ | | | | | | | | (Unable to aspirate 300 μL) |
| TP-1000S-C-F | 1000 μL | | | | | | | √ | √ | | | | | | | |
| TP-1000P-C-F | 1000 μL Long | | | | | | | √ | √ | | | | | | | |
| TP-5000L-C-F | 5 mL Wide Mouth | | | | | | | | | √ | | | | | | |
| TP-10000-C-F | 10 mL | | | | | | | | | | √ | | | | | |
