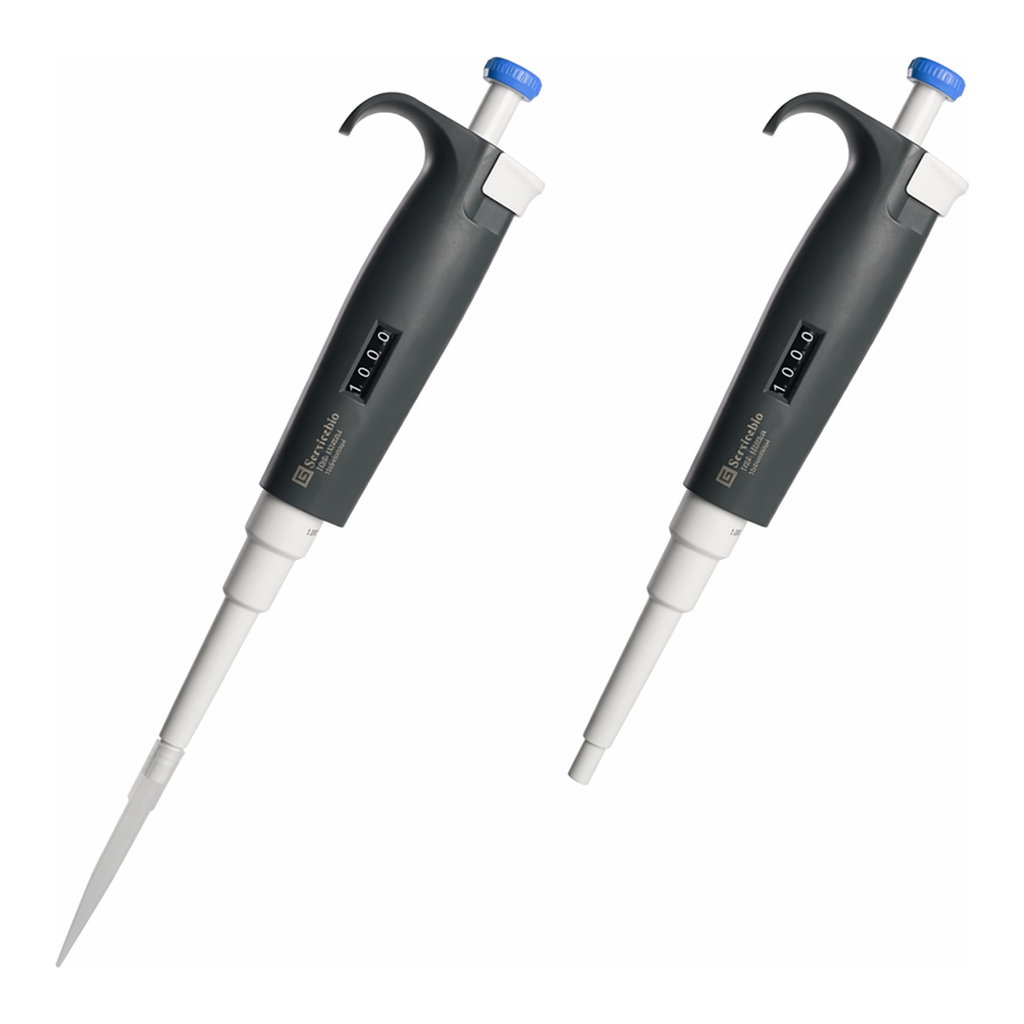

Servicebio Pipette

Product Introduction:

A pipette is a device used to transfer liquid quantitatively. In the research of analytical testing, a pipette is generally used to transfer small or microliter amounts of liquid.
There are 8 colors to choose from, and exclusive lucky colors can be customized!

SPIP-100 Pipette Compatibility Chart
Pipette	Pipette Tips Spec.	Details	Pipette Tips Cat. No.
SPIP-100	200 μL	Racked (Sterile, DNase&RNase Free)	TP-200-C
Bagged (DNase&RNase Free)	TP-200
200 μL Long	Racked (Sterile, DNase&RNase Free)	TP-200P-C
200 μL Loading Control	Bagged	TP-200D
Racked	TP-200D-C
20 μL with Filter	Filter, Racked (Sterile, DNase&RNase Free)	TP-20-C-F
100 μL with Filter	Filter, Racked (Sterile, DNase&RNase Free)	TP-100-C-F
200 μL with Filter	Filter, Racked (Sterile, DNase&RNase Free)	TP-200-C-F
200 μL Long with Filter	Filter, Racked (Sterile, DNase&RNase Free)	TP-200P-C-F

---

Product Features:

1. Multiple volume ranges, with multi-color markings, single-channel and multi-channel options;
2. Lightweight spring for extremely easy operation;
3. Equipped with Servicebio tips, which ensures good air tightness and accurate volume transfer;
4. Perfectly matched with most tips in the market.
5. CE certified. Refers to ISO 8655-2:2022 international standard.

---

Product Parameter

Product** Name**	Product No.	Nominal**Volume**	Volume Range	Increment
Single Channel Pipette	SPIP-2.5	2.5 μL	0.1-2.5 μL	0.05 μL
SPIP-10	10 μL	1-10 μL	0.1 μL
SPIP-20L	20 μL	2-20 μL (For 10μL and 10μL-long tips)	0.1 μL
SPIP-20	20 μL	2-20 μL (For 200μL tips)	0.1 μL
SPIP-50	50 μL	5-50 μL(For 10μL-long tips,10μL tips)	0.5 μL
SPIP-100	100 μL	10-100 μL	1 μL
SPIP-200	200 μL	20-200 μL	1 μL
SPIP-1000	1000 μL	100-1000 μL	5 μL
SPIP-5000	5000 μL	1000-5000 μL	50 μL
SPIP-10000	10 mL	1-10 mL	100 μL
8-Channel Pipette	SPIP-B10	10 μL	1-10 μL	0.1 μL
SPIP-B20L	20 μL	2-20 μL	0.1 μL
SPIP-B50	50 μL	5-50 μL	0.5 μL
SPIP-B100	100 μL	10-100 μL	1 μL
SPIP-B300	300 μL	50-300 μL	1 μL
SPIP-B1000	1000 μL	100-1000 μL	5 μL

---

Product **Features**

· Single channel: 0.1-2.5μL, 1-10μL, 2-20 μL, 5-50 μL, 10-100 μL, 20-200μL, 100-1000μL, 1000-5000μL, 1-10 mL; Multi-color range markers, 10 sizes optional;

· Multi-channel: 1-10 μL, 2-20 μL,5-50 μL, 10-100 μL , 50-300 μL, 100-1000 μL, 6 sizes optional;

· Lightweight and Ergonomic design provides excellent operating, very suitable for gripping. Light spring, press very labor-saving, help to relieve fatigue of hand joints, easy suction.

· Digital display, adjusted delivery volume clearly indicated in the large digital display on the handle.

· Fully made of high strength material. Anti-strengthening corrosion, alcohol disinfection; Enhanced anti UV linearity, UV sterilization;

· Different colors are used to identify pressing handles, making it easier to select pipettes of required specifications;

· Well-compatible with most of the pipette tips on the market;

· The pipette is equipped with Servicebio pipette tips to ensure good air tightness and accurate pipetting volume;

· Each Servicebio pipette is calibrated according to EN/ISO8655 standard, with strict quality control to ensure that each pipette is a high-quality product!

---

Pipette Operation

Forward technique pipetting (low density liquids) :

1. Press the push button to the first STOP;

2. Slowly release the button to the ready position to complete the aspiration of the liquid;

3. Deliver the liquid by gently depressing the push button to the first STOP. After a delay of about one second, continue to depress the push button all the way to the second STOP. This action will empty the tip.

4. Release the push button to the ready position. If necessary, change the tip and continue pipetting.

Reverse Technique Pipetting (for**high viscosity or volatile liquids) :**

1. Depress the push button all the way to the second STOP for aspirating liquid, slowly release the button to the ready postion to complete the aspiration of the liquid, aspirating more than the preset volume;

2. Press the button to the first STOP and discharge the preset volume of liquid;

3. The remaining liquid should either be discarded with the tip.

Calibration **a***nd Adjustment: *Take out the Service tool and place the Service tool as shown in the figure, Turn the service tool clockwise to increase, or counterclockwise to decrease the volume. Calibrate pipettes 1-2 times per year (depending on frequency of use)

---

Storage and Transportation

Storage and transportation in room temperature.

---

Notice

1. Before liquid handling, make sure that the pipette and tips are at the same temperature, hold the pipette in an upright position while aspirating the liquid , and dip the tip under the surface of the liquid to a depth of 2~3mm. Fill and empty the tip by several times to moisten the tip nozzle before pipetting (particularly when working with high-viscosity liquids or density different from water);

2. If the pipette tip is full of liquid, do not turn the pipette upside down or lay it flat to prevent liquid from flowing into the cavity. It is recommended to use a special pipette stand when placing the pipette;

3. Make sure to use it within the volume range when pipetting;

4. If it is not in use for a long time, it is recommended to apply special maintenance oil to the sealing ring;

5. If need to disassemble, please find a professional technician for maintenance.
