Servicebio Pipette

Product Introduction

A pipette is a device used to transfer liquid quantitatively. In analytical testing research, it is generally used to transfer small or microliter amounts of liquid.
There are 8 colors to choose from, and exclusive lucky colors can be customized!

SPIP-10 Pipette Compatibility Chart

Product Features

1. Multiple volume ranges with multi-color markings, single-channel and multi-channel options
2. Lightweight spring for easy operation
3. Equipped with Servicebio tips ensuring good air tightness and accurate volume transfer
4. Compatible with most tips in the market
5. CE certified, compliant with ISO 8655-2:2022 international standard

Product Parameter

Detailed Features

• Single channel: 0.1–2.5 μL, 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 20–200 μL, 100–1000 μL, 1000–5000 μL, 1–10 mL (10 sizes)
• Multi-channel: 1–10 μL, 2–20 μL, 5–50 μL, 10–100 μL, 50–300 μL, 100–1000 μL (6 sizes)
• Lightweight ergonomic design for comfortable grip and reduced hand fatigue
• Large digital display for clear volume indication
• High-strength, corrosion-resistant materials; alcohol and UV sterilization compatible
• Color-coded handles for easy identification
• Compatible with most pipette tips on the market
• Each pipette calibrated to EN/ISO 8655 standard with strict quality control

Pipette Structure (from image diagram)

Printed on body:

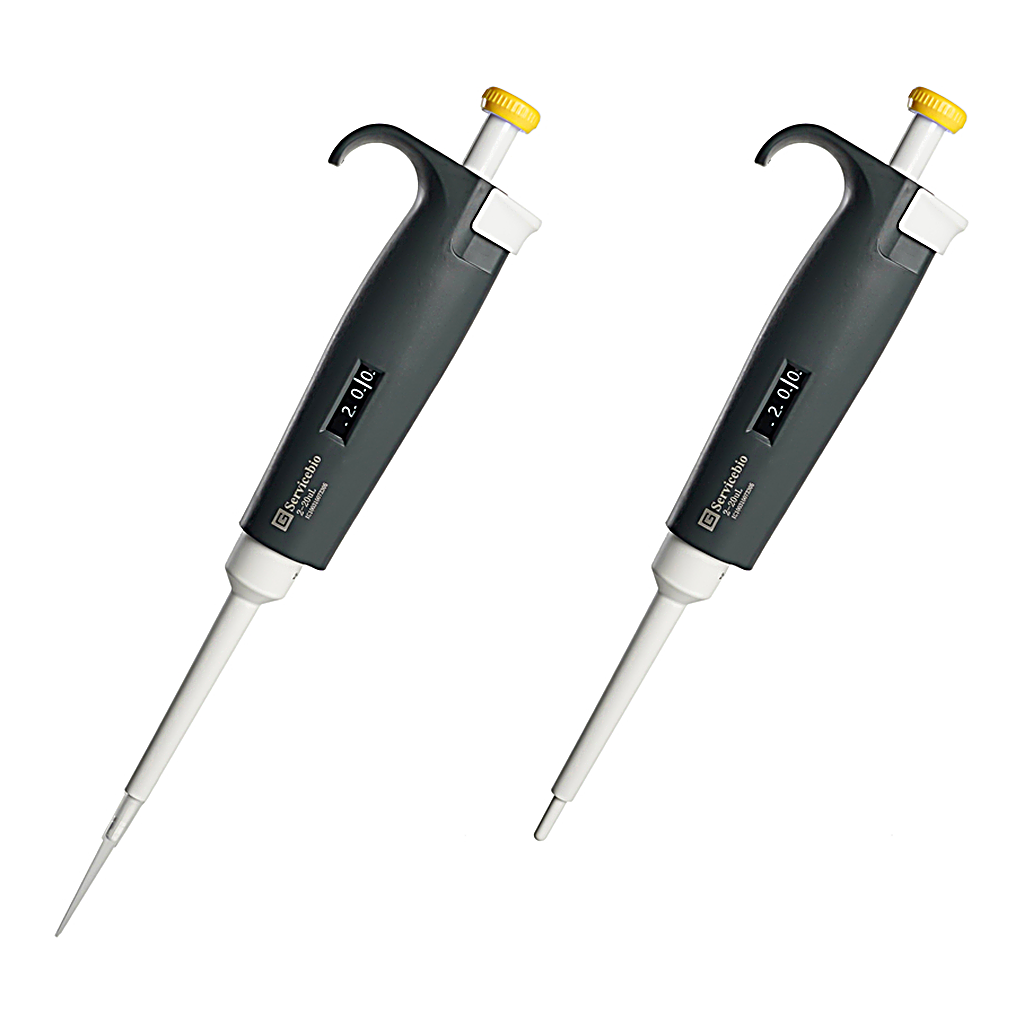

Servicebio 2–20 μL Adjustable Pipette
Display window reading: 2.0

Pipette Operation

Forward Technique (for low-density liquids)

1. Press the push button to the first STOP.
2. Slowly release to the ready position to aspirate liquid.
3. Deliver liquid by pressing to the first STOP, then to the second STOP to empty the tip.
4. Release to ready position and change tip if necessary.

Reverse Technique (for high-viscosity or volatile liquids)

1. Depress the push button to the second STOP to aspirate liquid, then release slowly to the ready position.
2. Press to the first STOP to discharge preset volume.
3. Discard remaining liquid with the tip.

Button positions: Ready Position → First STOP → Second STOP

Calibration and Adjustment

Use the Service Tool as shown:

• Turn clockwise to increase volume
• Turn counterclockwise to decrease volume
• Calibrate 1–2 times per year depending on usage frequency

Note: Mantissa (Increment) refers to the data sheet of the related product number.

Storage and Transportation

Store and transport at room temperature.

Notice

1. Ensure pipette and tips are at the same temperature before use; hold upright and pre-wet tips before pipetting.
2. Avoid turning pipette upside down when filled; use a pipette stand.
3. Operate within specified volume range.
4. Apply maintenance oil to sealing ring if unused for long periods.
5. Disassembly should be done by a professional technician.

Pipette and Tip Adaptation Table

Pipette Models

| Cat. No. | SPP-2.5 | SPP-10 | SPP-20 | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-850 | SPP-830 | SPP-8300 | SPP-81000 |
|-----------|----------|--------|--------|--------|---------|---------|----------|----------|-----------|----------|----------|----------|----------|-----------|
| Name | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette | 8-channel Pipette |
| Spec. | Piece (0.1–2.5 μL) | Piece (0.5–10 μL) | Piece (2–20 μL) | Piece (5–50 μL) | Piece (10–100 μL) | Piece (20–200 μL) | Piece (100–1000 μL) | Piece (0.5–5000 μL) | Piece (1–10 mL) | Piece (0.5–10 μL) | Piece (5–50 μL) | Piece (5–300 μL) | Piece (10–1000 μL) |

Standard Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-850 | SPP-830 | SPP-8300 | SPP-81000 |
|-----------|--------|---------|--------|--------|--------|---------|---------|----------|----------|-----------|----------|----------|----------|----------|-----------|
| TP-10-C / TP-10 | 10 μL | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-10P-C / TP-10P | 10 μL Long | √ | √ | √ | (Unable to aspirate 50 μL) | | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-200-C / TP-200 | 200 μL | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200P-C / TP-200P | 200 μL Long | | | | | √ | √ | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-1000-C / TP-1000 | 1000 μL | | | | | | | √ | | | | | | | |
| TP-1000P-C / TP-1000P | 1000 μL Long | | | | | | | √ | | | | | | | |
| TP-5000L-C / TP-5000L | 5 mL Wide Mouth | | | | | | | | √ | | | | | | |
| TP-10000-C / TP-10000 | 10 mL | | | | | | | | | √ | | | | | |

Filter Tips

| Cat. No. | Spec. | SPP-2.5 | SPP-10 | SPP-20 | SPP-50 | SPP-100 | SPP-200 | SPP-1000 | SPP-5000 | SPP-10000 | SPP-810 | SPP-820L | SPP-850 | SPP-830 | SPP-8300 | SPP-81000 |
|-----------|--------|---------|--------|--------|--------|---------|---------|----------|----------|-----------|----------|----------|----------|----------|-----------|
| TP-10-C-F | Filter 10 μL | √ | √ | √ | (Unable to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-10P-C-F | Filter 10 μL Long | √ | √ | √ | (Able to aspirate 20 μL) | (Unable to aspirate 50 μL) | | | | | √ | √ | (Unable to aspirate 50 μL) |
| TP-20-C-F | Filter 20 μL | | | √ | √ | (Unable to aspirate 100 μL) | | | | | √ | √ | (Unable to aspirate 100 μL) |
| TP-100-C-F | Filter 100 μL | | | | | √ | √ | (Unable to aspirate 200 μL) | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200-C-F | Filter 200 μL | | | | | √ | √ | (Unable to aspirate 300 μL) | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-200P-C-F | Filter 200 μL Long | | | | | √ | √ | (Unable to aspirate 300 μL) | | | | | √ | √ | (Unable to aspirate 300 μL) |
| TP-1000S-C-F | Filter 1000 μL | | | | | | | √ | | | | | | | |
| TP-1000P-C-F | Filter 1000 μL Long | | | | | | | √ | | | | | | | |
| TP-5000L-C-F | Filter 5 mL Wide Mouth | | | | | | | | √ | | | | | | |
| TP-10000-C-F | Filter 10 mL | | | | | | | | | √ | | | | | |

Servicebio is one of the leading manufacturers in China providing FDA & CE approved lab supplies and laboratory services.
