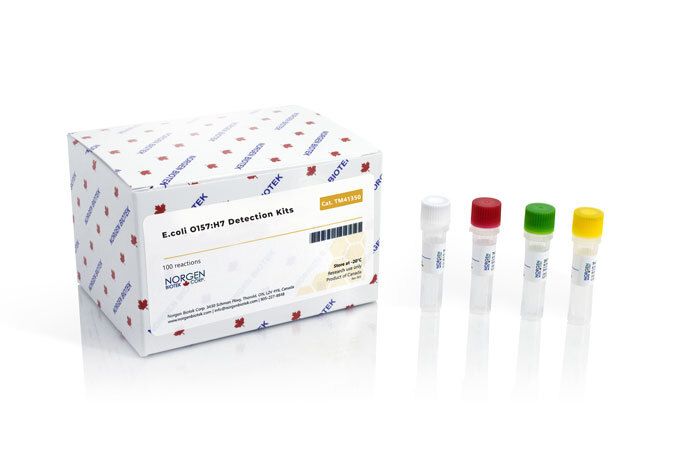

Norgen E.coli O157:H7 TaqMan PCR Detection Kits
E.coli O157:H7를 정밀 검출하는 TaqMan PCR 키트로, 마스터믹스와 프라이머·프로브 세트 포함. 양성·음성 대조군 제공으로 실험 신뢰성 확보. -20°C 보관, 100회 반응용. 연구용 전용으로 식품, 수질 등 병원체 모니터링에 적합.
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
Norgen E.coli O157:H7 TaqMan PCR Detection Kits
SKU: TM41350
Features and Benefits
- Detection kits for E.coli O157:H7
- Available in TaqMan format for analysis
E. coli O157:H7 is a rod-shaped, gram-negative bacterium. It is an enterohemorrhagic strain of the common E. coli bacterium and infection by the O157:H7 strain is commonly associated with hemorrhagic colitis.
E. coli O157:H7 is recognized by its somatic (O157) and flagella (H7) antigens and is known to produce Shiga-like toxins causing severe symptoms.
Infection often results from consumption of undercooked meat, untreated water, or unpasteurized milk.
Product Options
E.coli O157:H7 TaqMan PCR Kit (100 reactions)
- Ready-to-use format including Master Mix and PCR control
- Specific Primer and Probe mix for the target pathogen
- Positive and negative controls to confirm reagent integrity
E.coli O157:H7 TaqMan PCR Probe/Primer Set and Controls (100 reactions)
- Specific Primer/Probe mix and Positive Control
- Includes nuclease-free water
- Compatible with Norgen’s PCR Master Mix (#28007) or user-supplied mix
For research use only and not intended for in vitro diagnostics.
Supporting Data
Figure 1. TaqMan PCR Positive Result (FAM + Cy5)
Both PCR signals (FAM and Cy5) above baseline indicate successful amplification.
OCR 추출 텍스트 요약:
상단 그래프: Amplification (FAM, Cy5), X축: Cycles, Y축: RFU
하단 그래프: Amplification (HEX), X축: Cycles, Y축: RFU
| 그래프 위치 | 제목 | 형광물질 | X축 | Y축 |
|---|---|---|---|---|
| 상단 | Amplification | FAM (파란색), Cy5 (빨간색) | Cycles | RFU |
| 하단 | Amplification | HEX (초록색) | Cycles | RFU |
Figure 2. TaqMan PCR Positive (Cy5) Result
PCR signals above baseline from Cy5 and HEX channels indicate successful PCR.
OCR 추출 텍스트 요약:
상단 그래프: Amplification (Cy5), X축: Cycles, Y축: RFU
하단 그래프: Amplification (HEX), X축: Cycles, Y축: RFU
Figure 3. TaqMan PCR Positive (FAM) Result
PCR signals above baseline from FAM and HEX channels indicate successful PCR.
OCR 추출 텍스트 요약:
상단 그래프: Amplification (FAM), X축: Cycles, Y축: RFU
하단 그래프: Amplification (HEX), X축: Cycles, Y축: RFU
Figure 4. TaqMan PCR Negative Result
No target DNA detected in FAM and Cy5 channels, but HEX amplification indicates successful PCR.
OCR 추출 텍스트 요약:
그래프 제목: Amplification
X축: Cycles (0–40), Y축: RFU (0–800)
Figure 5. TaqMan PCR Inhibition Result
No signal from FAM, Cy5, and HEX channels detected. Repeat sample preparation using recommended DNA purification kit.
OCR 추출 텍스트 요약:
상단 그래프: Amplification (FAM, Cy5), X축: Cycles, Y축: RFU
하단 그래프: Amplification (HEX), X축: Cycles, Y축: RFU
Storage Conditions and Product Stability
- All kit components stable for 2 years after production
- Store at -20°C upon arrival
- Avoid repeated freeze-thaw cycles (>2×) of Master Mix and Positive Control
- For intermittent use, aliquot reagents before freezing

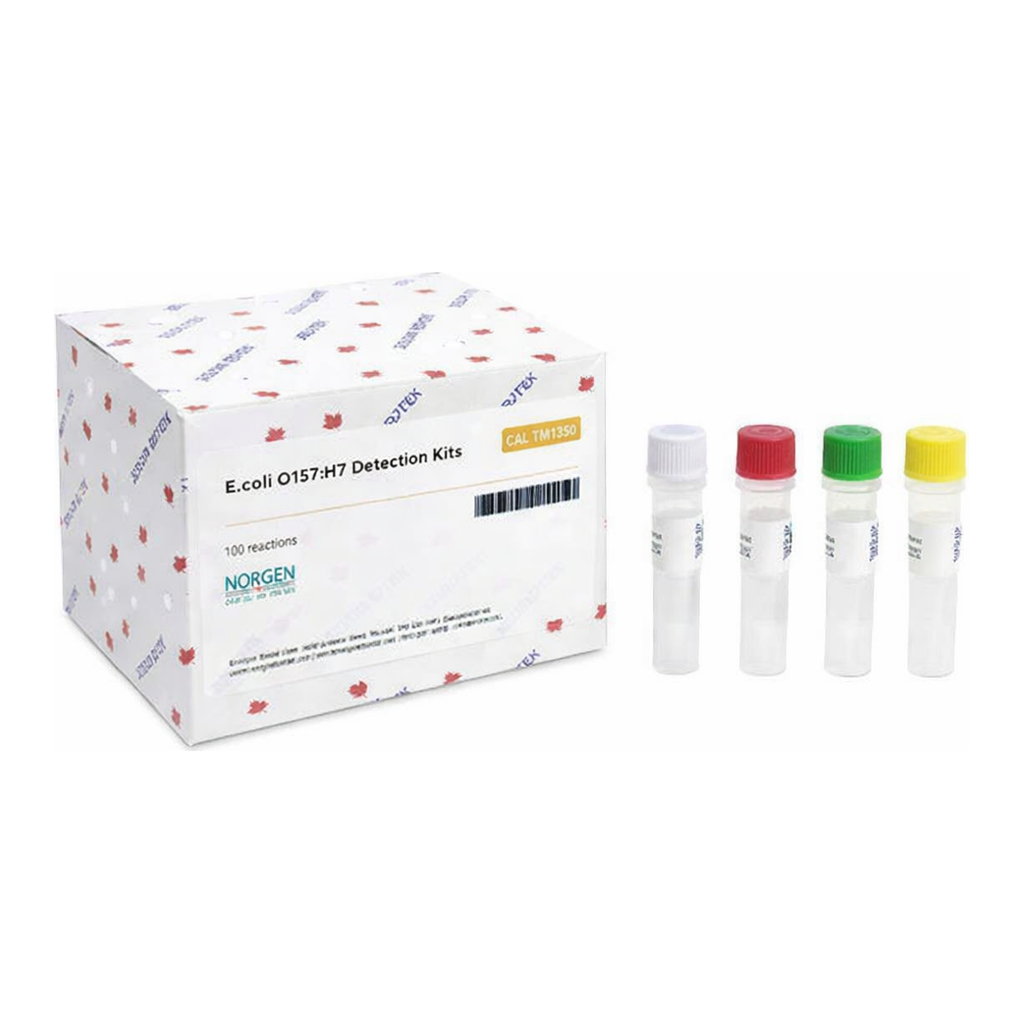

Kit Components
| Component | Cat. TM41350 (100 rxns) | Cat. TM41310 (100 rxns) |
|---|---|---|
| MDx TaqMan 2X PCR Master Mix | 2 × 700 μL | – |
| E. coli O157:H7 Primer & Probe Mix | 280 μL | 280 μL |
| E. coli O157:H7 Positive Control | 150 μL | 150 μL |
| Nuclease-Free Water (Negative Control) | 1.25 mL | 1.25 mL |
| Product Insert | 1 | 1 |
Documentation
Protocols
- (TM41350) E.coli O157:H7 TaqMan PCR Kit - Protocol (100 rxns)
- (TM41310) E.coli O157:H7 TaqMan Probe/Primer and Control Set - Protocol (100 rxns)
Safety Data Sheets
- TM41350 - E.coli O157:H7 TaqMan PCR Detection Kit - SDS
- TM41310 - E.coli O157:H7 TaqMan PCR Detection Kit - SDS
