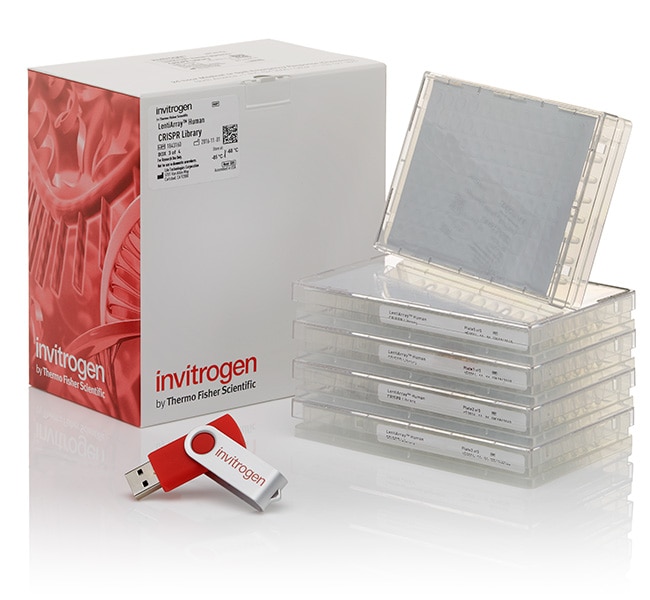

Thermo Fisher Scientific LentiArray Human Ion Channel CRISPR Library

Invitrogen™ LentiArray™ Human Ion Channel CRISPR Library

The Invitrogen™ LentiArray™ Human Ion Channel CRISPR Library targets 328 human ion channel genes, with up to 4 gRNAs per gene (pooled in a single well), for a total of 1,312 gRNAs. Each gene target is delivered as 100 μL of ready-to-use lentiviral particles with an average titer of 1×10⁸ TU/mL (functional titer determined by antibiotic resistance).

Product Overview

Ion channels are integral membrane proteins responsible for establishing electrochemical gradients essential for:

• Resting membrane potential
• Action potential formation
• Nerve conduction
• Heart and muscle contraction
• Insulin release and T-cell activation

Gene targets were selected using the latest genome databases, including NCBI RefSeq, and cross-referenced with the Gene Ontology Consortium (GO) and HUGO Gene Nomenclature Committee (HGNC).

Built to Bring You Success

LentiArray CRISPR libraries are constructed using Thermo Fisher Scientific’s proprietary gRNA design algorithm, optimized for:

• High editing efficiency and specificity
• Knockout of all known isoforms
• Reliable performance across diverse cell types

Each gene target includes up to four high-quality gRNAs to ensure robust knockout efficiency.

Design and Execute Without Limitations

LentiArray CRISPR libraries use a two-vector design, expressing Cas9 and gRNA from separate lentiviral constructs, allowing full control over genome editing delivery and timing.

• Cas9 lentivirus: Human codon-optimized Cas9 with a blasticidin-resistance gene under the EF-1α (EFS) promoter
• Option to co-infect with both Cas9 and gRNA lentiviruses or establish a stable Cas9-expressing cell line
• gRNA lentiviruses include a puromycin resistance gene for enrichment of edited cells

These features allow flexible experimental design and compatibility with multiplexed assays, as no fluorescent markers are included.

Learn more about LentiArray CRISPR libraries >

Optimize Your Assay Design with LentiArray Controls

High-quality controls are essential for successful screening. The LentiArray CRISPR library product line includes a suite of controls to support assay development and hit validation.

Learn more about LentiArray controls >
