Easy-to-use and Powerful

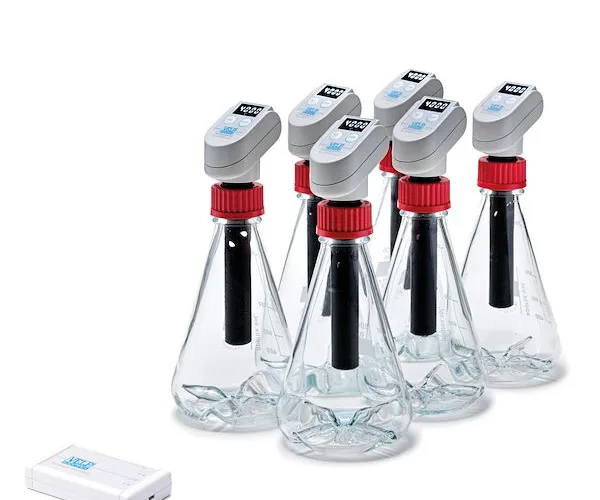

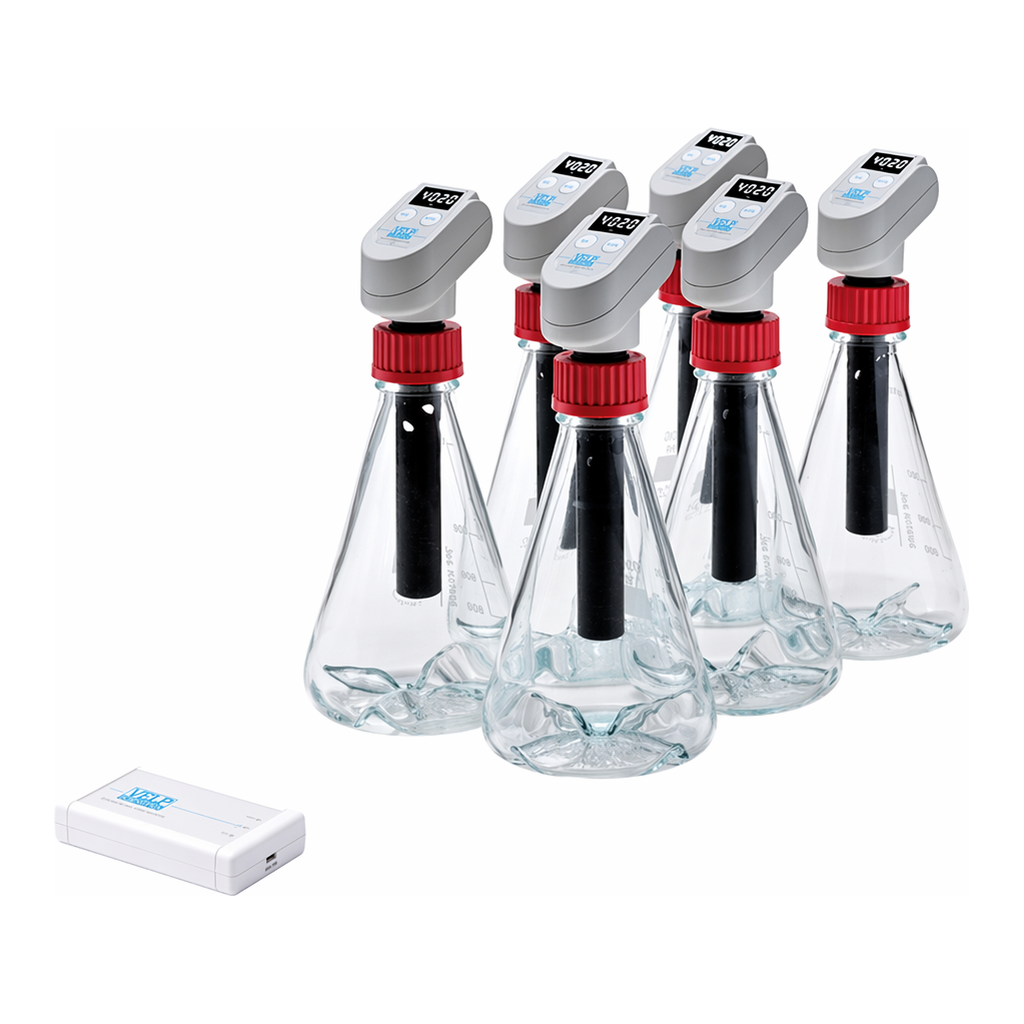

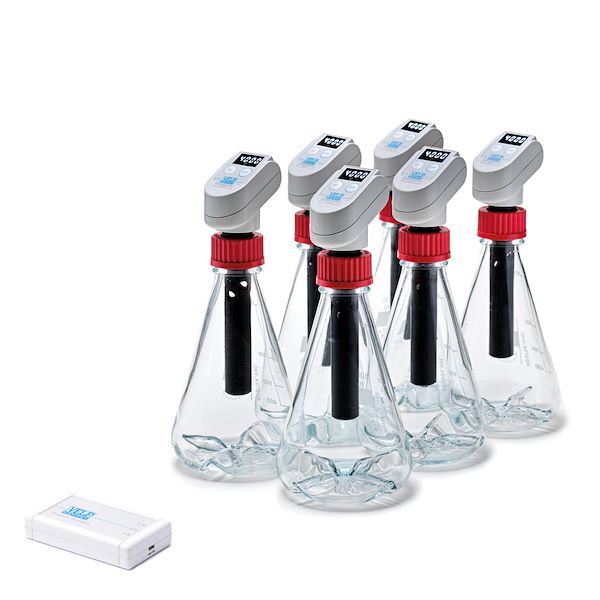

The RESPIROMETRIC Sensor System for soil analysis is designed to support aerobic degradation tests on soil and compost. The analysis provides microbial soil respiration results from the mineralization of organic substances. A major application of these tests is related to the detection and monitoring processes during decontaminations and clean-ups.
- Bright 4-digit LED display ensures long battery life
- Intuitive 2-button interface for easy setup
- Pressure range: 500 ÷ 2000 mbar (hPa)
- Results available in mbar
Unique Wireless Control: DataBox™ and RESPIROSoft™ Software
The RESPIROMETRIC Sensor transmits data directly to the PC enabling real-time monitoring of the analysis curve. Respirometric studies can last days or even months, and the VELP solution ensures constant monitoring of multiple analyses through the proprietary RESPIROSoft™ software.
- Real-time analysis curve
- Clear display of key information
- Sensor battery monitoring
- Preinstalled methods and customizable reports
- Results comparison and adjustable sampling intervals
The VELP DataBox™ is included with the system and enables wireless data transmission from the RESPIROMETRIC Sensor to the PC. It stores results for up to 400 sensors (66 systems).
VELP Ermes Connection to Monitor Anytime, Anywhere
Connect the RESPIROMETRIC Sensor to the VELP Ermes Cloud Platform to enhance your laboratory experience and productivity.
- Real-time visualization of analysis via PC, tablet, or smartphone
- Monitor instrument working conditions remotely
- Enhanced application and service support
- Access and share analysis reports anytime
- Instant event and alert notifications via platform or email
Technical Data
| Specification | Description |
|---|---|
| Number of Sensors per System | 6 |
| Sensor Display | 4 LED digits |
| Measurement | Electronic pressure sensor |
| Test Typology | Pressure |
| Pressure Range | 500 ÷ 2000 mbar (hPa) |
| Bottle Volumes | 1000 ml |
| DataBox Sensor Capacity | Up to 400 RESPIROMETRIC Sensors |
| DataBox Power Supply | USB / Plug |
| Connectivity | Ermes via Wi-Fi / RESPIROSoft™ via USB |
| Sampling Time | From 30 min to 48 h, depending on test duration |
| Measuring Period | From 1 to 730 days |
| Data Storage | On sensor, RESPIROSoft™ Database, Ermes Cloud |
| Sensor Construction Material | Technopolymer |
| Sensor Dimensions (W×H×D) | 50 × 70 × 70 mm |
| Sensor Power | 2 W |
| Sensor Battery Type | CR 2430 |
| Weight | Sensor: 80 g |
| Safety Class | IEC/EN61010-1 |
| Protection Degree | IP 54 - EN 60529 |
| Official References | BS EN ISO 16072 - SOIL QUALITY: Laboratory methods for determination of microbial soil respiration |
Software Requirements for RESPIROSoft
| Specification | Description |
|---|---|
| Operating System | Windows 7 (SP1), Windows 8, Windows 10 |
| Hardware | Core 2 Duo, RAM 4 GB |
| Available Disk Space | 100 MB |
| Recommended Graphic Resolution | 1024 × 768 |
Brochures & Leaflets
- Respirometric Sensor - Brochure [EN]
- Wireless DataBox - How to connect to VELP Ermes
- Laboratory Equipment - Line Brochure [EN]
- Product Portfolio - Brochure [EN]
Instruction Manuals
Comparison Tables
Application Notes
Certifications
VELP products comply with international safety regulations and are CE certified.
The cNEMKOus mark ensures compliance with IEC/EN 61010-1 standards for safety in the U.S. and Canada.
제품 이미지
🏷️VELP 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
VELP
VELP SER 158 Series Automatic Solvent Extractor
VELP
VELP RESPIROMETRIC Sensor System 6 Maxi - BMP
6,480,000원
VELP
VELP RESPIROMETRIC Sensor System 6 for Soil Analysis
7,000,000원
VELP
VELP RESPIROMETRIC Sensor System 6 for Plastic Biodegradability
7,700,000원
VELP

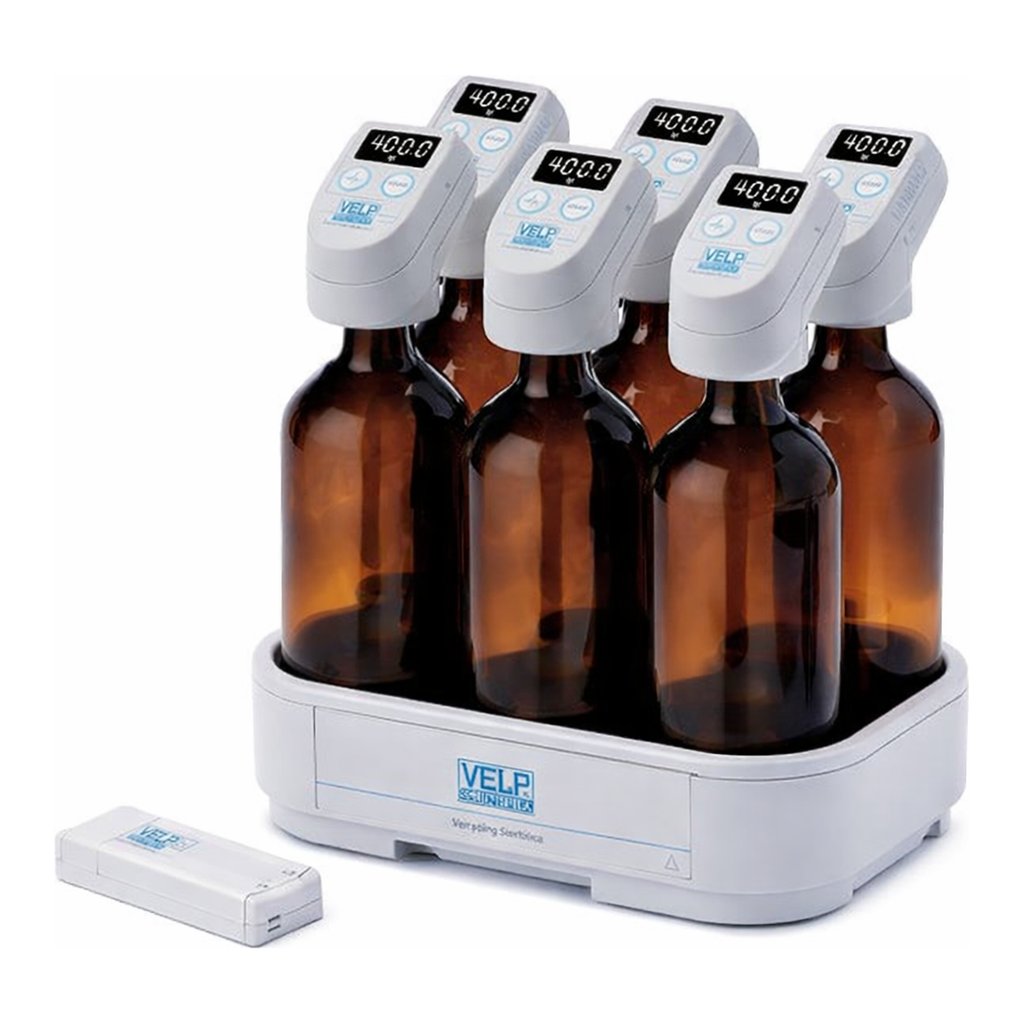

VELP RESPIROMETRIC Sensor System 6 - BOD
