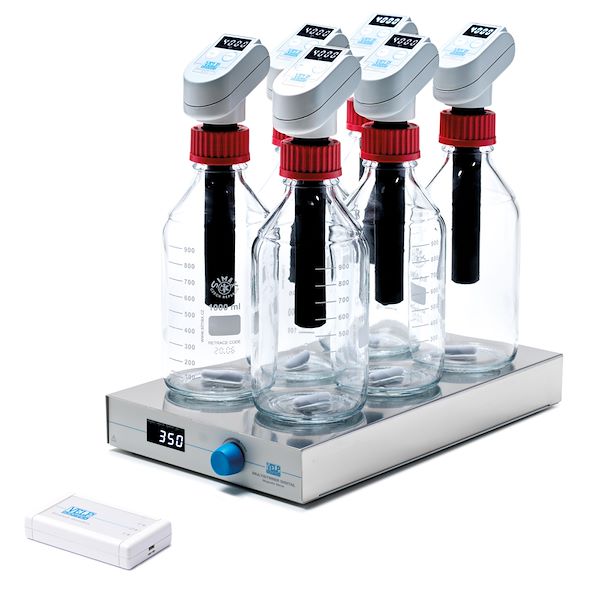

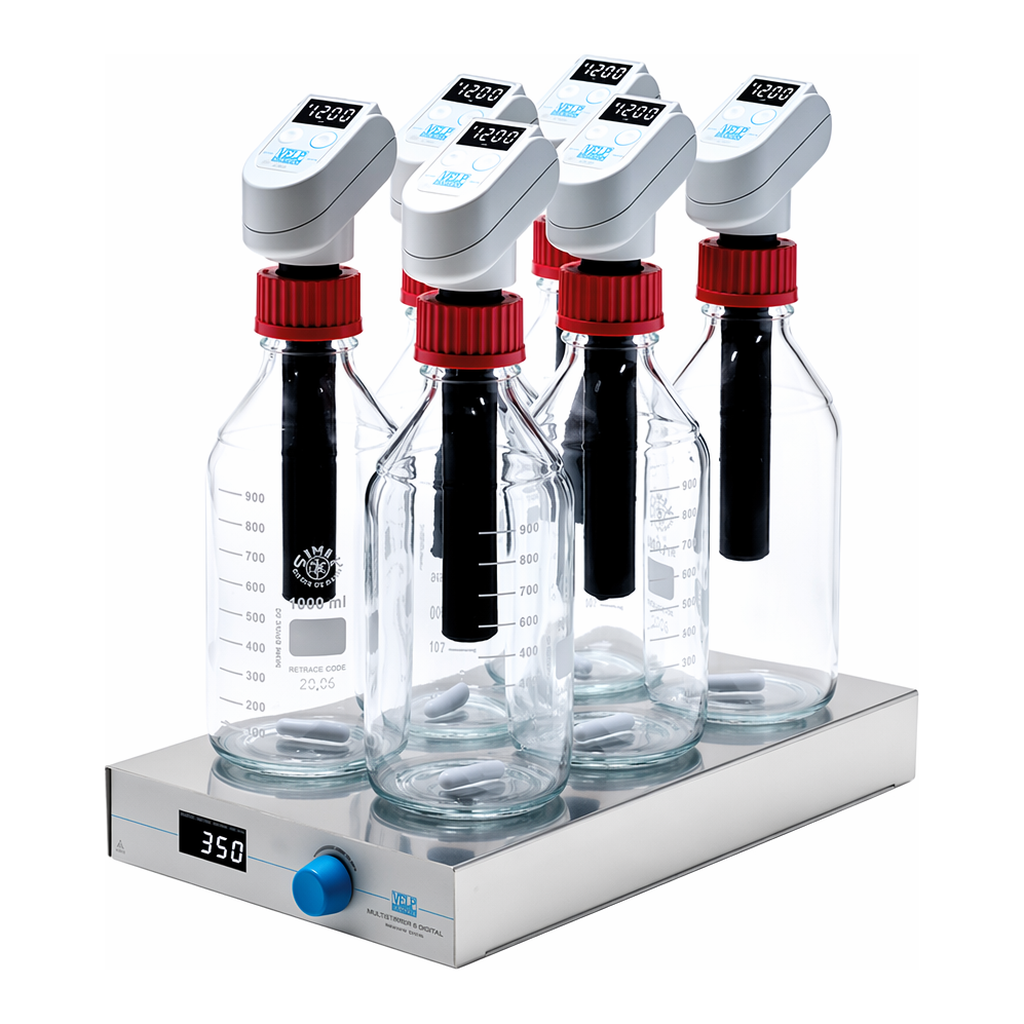

VELP RESPIROMETRIC Sensor System 6 for Plastic Biodegradability

Easy-to-use and Powerful

The RESPIROMETRIC Sensor System for plastic biodegradability is designed to support aerobic degradation test for the determination of the degree of biodegradability of plastic materials, including those containing formulation additives, in an aqueous medium.

• Multistirrer Digital 6-positions to precisely set stirring speed and enable the lock feature to avoid unintentional modification of the stirring speed.
• Results reading in Pressure values (millibar).
• Pressure range: 500 ÷ 2000 mbar (hPa).
• The bright 4-digit LED display ensures long battery life in respect of other sensors in the market.
• Intuitive 2 button interface to facilitate the analysis set up.

Unique wireless control: DataBox™ and RESPIROSOFT™ Software

The RESPIROMETRIC Sensor transmits data directly to the PC enabling real-time monitoring of the analysis curve. Respirometric studies can last days and even months, the unique VELP solution ensures constant monitoring of multiple analysis from an intuitive proprietary software, the RESPIROSoft™.

• Real-time analysis curve
• Most important info clearly displayed at a glance
• Sensors battery monitoring
• Preinstalled methods
• Customized test reports
• Results comparison
• It is also possible, depending on your application requirement to set different sampling time intervals

The VELP DataBox™ is included in the Systems together with the RESPIROSoft™ Software and enables wireless data transmission from the RESPIROMETRIC Sensor to the PC.

The DataBox™ store results for up to 48 RESPIROMETRIC Sensors (8 systems).

VELP Ermes connection to monitor your sensor and incubator anytime, anywhere

Connect the RESPIROMETRIC Sensor to the exclusive VELP Ermes Cloud Platform to improve your laboratory experience.

The VELP Ermes Cloud Platform connection will unburden you from tedious tasks improving your lab productivity.

• Real-time visualization of your analysis with graph, even on multiple locations from PC, Tablet and Smartphone.
• Real-time instrument working conditions.
• Enhanced application and service support.
• Access to your analysis database anytime, anywhere.
• Create and share analysis report in multiple formats.
• Immediate event and alert notifications based on your settings (on platform and email).

TECHNICAL DATA

NUMBER OF SENSORS PER SYSTEM:	6
SENSOR DISPLAY:	4 LED digits
MEASUREMENT:	Electronic pressure sensor
TEST TYPOLOGY:	Pressure
PRESSURE RANGE:	500 ÷ 2000 mbar (hPa)
BOTTLE VOLUMES:	1000 ml
DATABOX SENSOR CAPACITY:	Up to 400 REPIROMETRIC Sensor
DATABOX POWER SUPPLY:	USB / Plug
CONNECTIVITY:	Ermes via Wi-Fi / RESPIROSoft™ via USB
SAMPLING TIME:	From 30m to 48h, depending on the test duration
MEASURING PERIOD:	From 1 to 730 days
DATA STORAGE:	On sensor, RESPIROSoft™ Database, Ermes Cloud
SENSOR CONSTRUCTION MATERIAL:	Technopolymer
SENSOR DIMENSIONS (WXHXD):	50x70x70 mm
SENSOR POWER:	2 W
SENSOR BATTERY TYPE:	CR 2430
STIRRING STATION POWER SUPPLY:	MULTISTIRRER Digital 6: 100-240V / 50-60Hz
STIRRING STATION DIMENSIONS (WXHXD):	MULTISTIRRER Digital 6: 230x51.5x370mm
WEIGHT:	Sensor: 80g MULTISTIRRER Digital 6: 1,75Kg
SAFETY CLASS:	IEC/EN61010-1
PROTECTION DEGREE:	IP 54-EN 60529
OFFICIAL REFERENCES:	ISO 14851 Determination of the ultimate aerobic biodegradability of plastic materials in an aqueous medium BS EN ISO 17556:2019 Plastics - Determination of the ultimate aerobic biodegradability of plastic materials in soil by measuring the oxygen demand in a respirometer or the amount of carbon dioxide evolved

SOFTWARE REQUIREMENTS FOR RESPIROSOFT

OPERATING SYSTEM:	Windows 7 (SP 1), Windows 8 or Windows 10
HARDWARE:	Core 2 Duo, RAM 4 GB
AVAILABLE SPACE ON THE HARD DISK:	100 MB
RECOMMENDED GRAPHIC RESOLUTION:	1024 x 768
