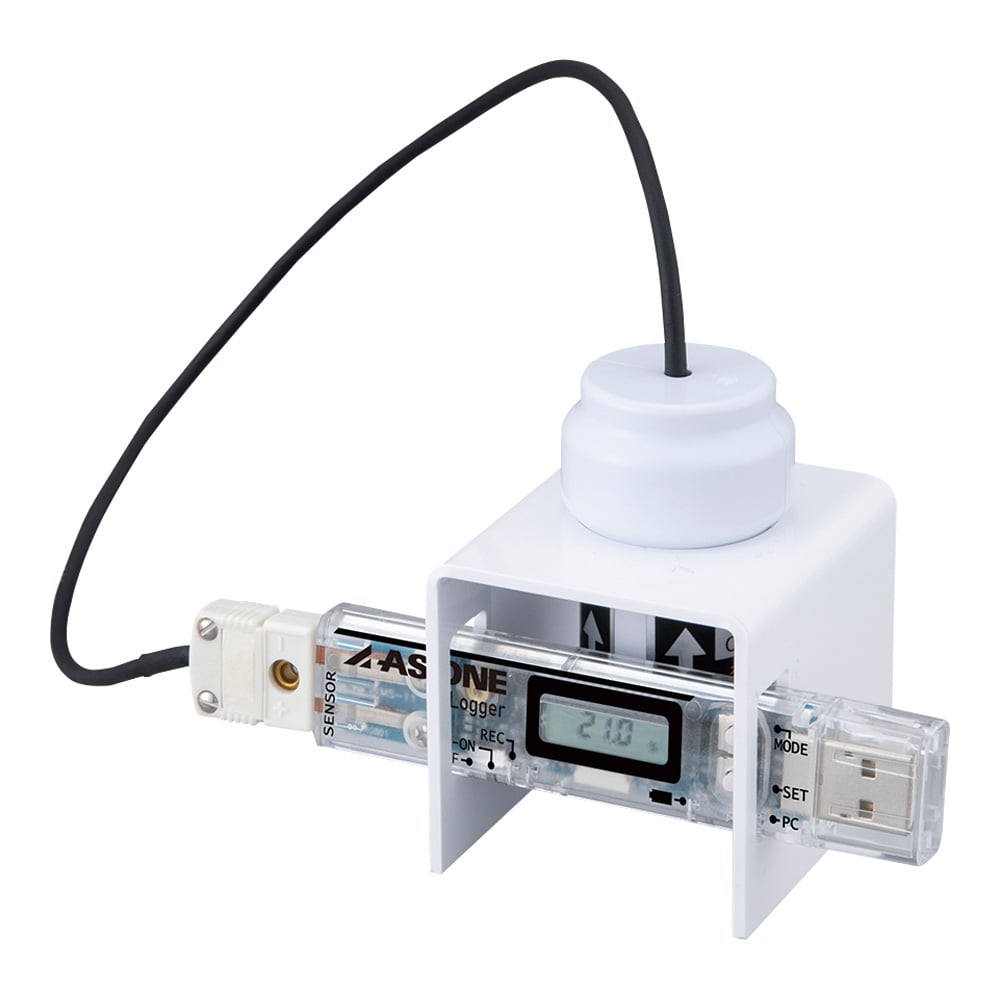

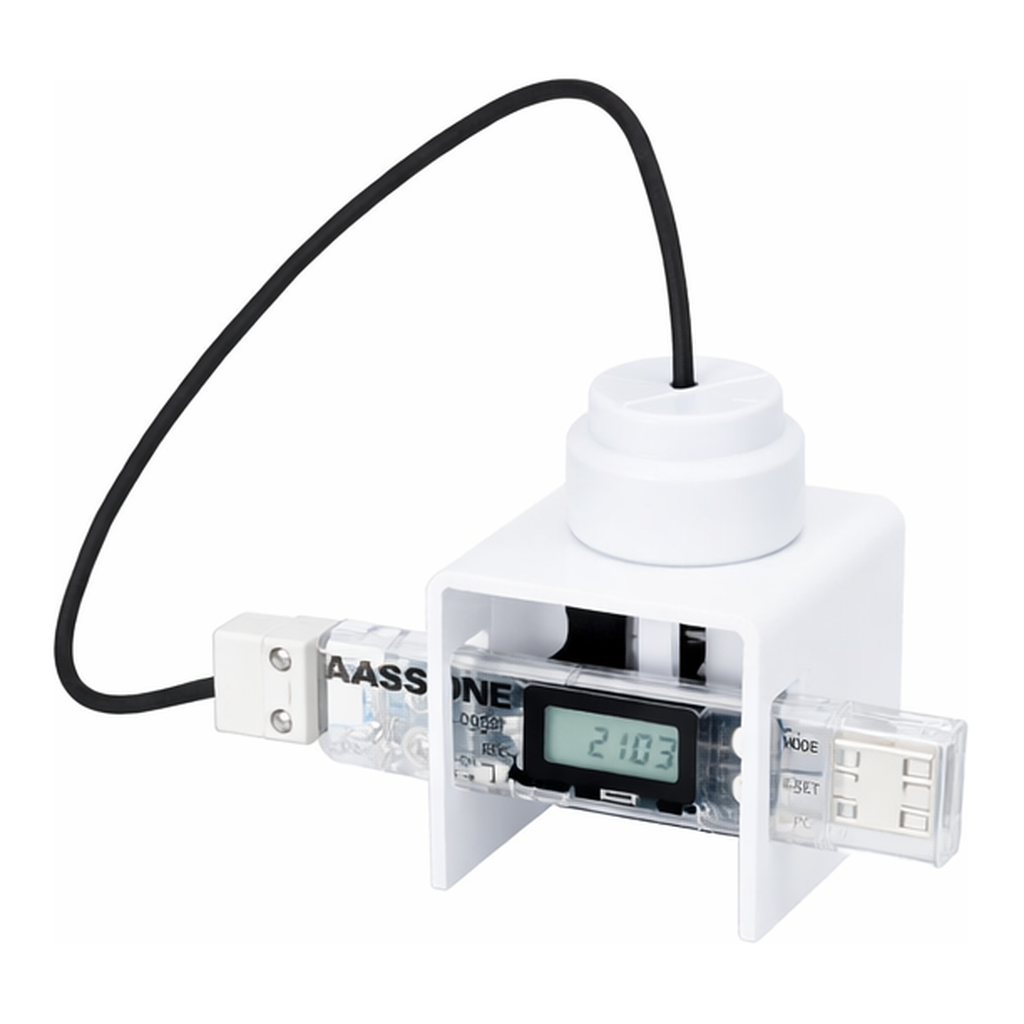

AS ONE 4-4286-01 Oxygen Logger (nitrogen Switchable)　O2-N2

Features

• It comes with one-touch calibration.
• It can be directly connected to a PC, making it easy to transfer and retrieve data.
• Oxygen and nitrogen concentrations can be measured by switching operation.
• It can be used for storage of electronic components, desiccators, glove boxes, etc.

Spec

• Body size (mm): 95.0 x 21.0 x 10.4

• Weight (g): approximately 20

• Number of pieces: 1

• Detection principle: Galvani battery type

• Measuring range: 0 ~ 100%

• Accuracy: 0 ~ 25%/+/- 0.7% or +/- 1 digit, whichever is greater, 25 ~ 100%/+/- 1.5%

• Response time: About 15 seconds (90%)

• Resolution: 0.1%

• Sensor life: Warranty/1 year, Replacement estimate/1 year, maximum/about 3 years

• Sensor size: approx. 34 x 34 x 65 mm

• Power: CR 1220 button battery (included for testing), supplied via USB port

• Communication port: USB

• Operating System: Windows ® 10 (32 bit/64 bit), 11 (64 bit)

• Number of recordings: 30,000

• *The displayed nitrogen value is 100 - oxygen concentration (%). It is not a strict nitrogen concentration measurement.

• *It is not an alarm device, so it can not be used as an oxygen shortage alarm.

• < a href=https://axel.as-1.co.jp/images/pdf/pb/4-4286-01/rx-controller\_v1.30.zip rel=noopener nofollow target=\_blank > Download the dedicated application here < /a >

Package size：150×130×50 mm　 [About Package size]
