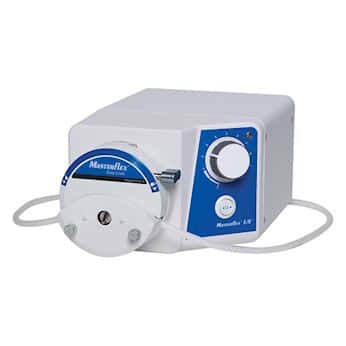

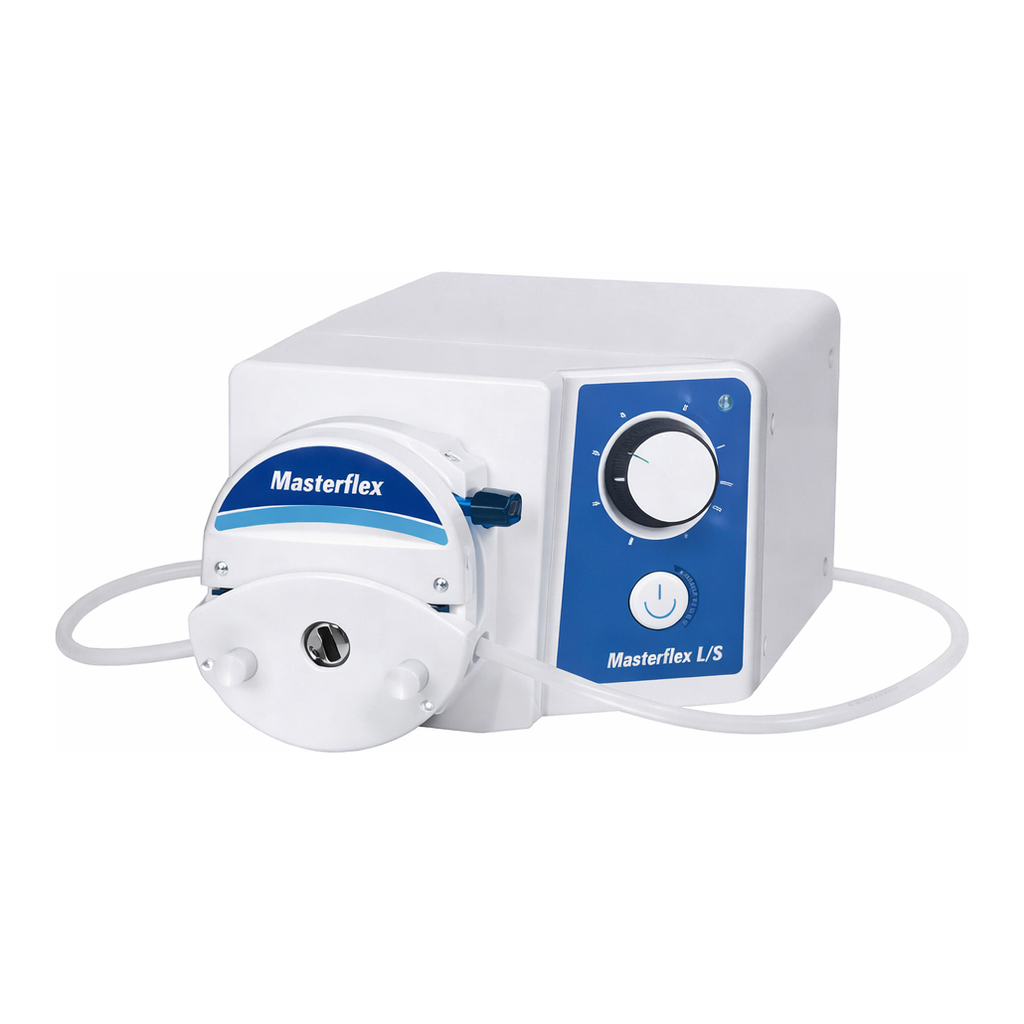

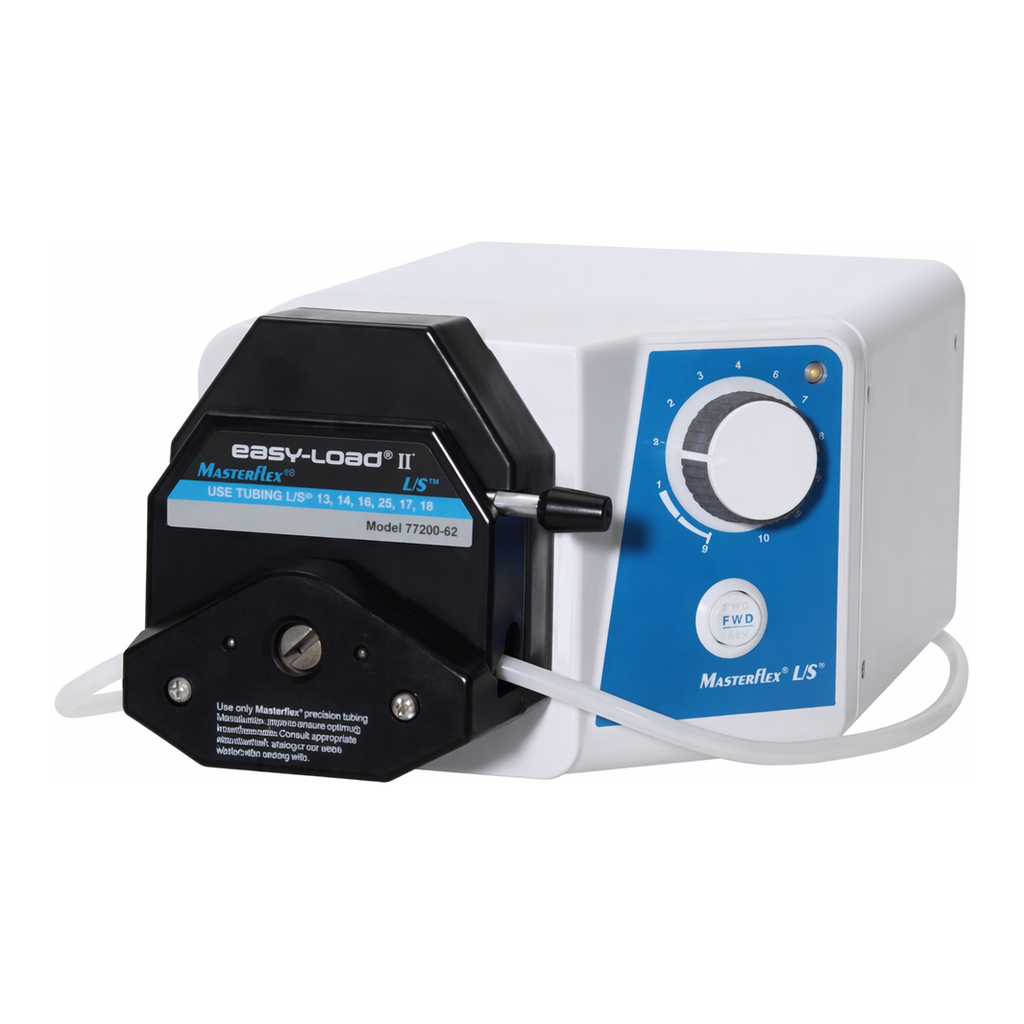

Cole-Parmer Masterflex L/S Variable Speed Pump with Easy-Load II Precision Pump Head

Masterflex L/S Variable Speed Pump with Easy-Load II Precision Pump Head, 230 VACMasterflex L/S® Variable Speed Pump with Easy-Load® II Precision Pump Head; 230 VAC

Compact, cost effective pump systems for general fluid transfer applications

• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive

Specifications & Description

• Control TypeAnalog
• Pump SeriesL/S
• Min RPM20
• Max RPM600
• Number of Channels1
• Max Flow Rate (mL/min)480
• Min Flow Rate (mL/min)16
• Max Flow Rate Per Channel (mL/min)480
• Min Flow Rate Per Channel (mL/min)16
• Drive07555-05 (L/S® Analog Variable-Speed Console Drive)
• Pump Head07514-10 (L/S® Easy-Load® Head)
• Tubing06434-16, 10-ft (C-FLEX® Ultra, L/S® 16)
• Tubing sizes acceptedL/S® 13, 14, 16, 25, 17, 18
• Drive IP ratingIP 22
• Washdown CapableNo
• Accuracy±5%
• Duty CycleContinuous
• Number of Rollers4
• Power (VAC)230
• Power (amps)0.8
• Power (Hz)50/60
• Width (in)7.25
• Height (in)5.25
• Length (in)11.5
• Width (cm)18.4
• Height (cm)13.34
• Length (cm)29.2
• Open-Head SensorNo
• Housing MaterialPainted Steel and ABS Plastic
• Remote I/OStart/Stop
• Reversible MotorYes
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S® Variable Speed Pump with Easy-Load® II Precision Pump Head; 230 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Key Features

• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive

More About this Item

Choose a convenient, complete system all with one catalog number.
