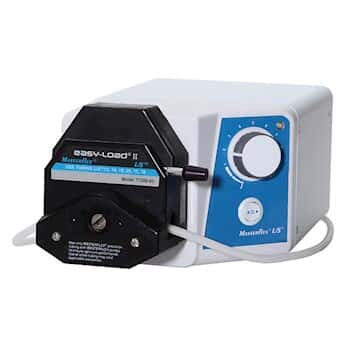

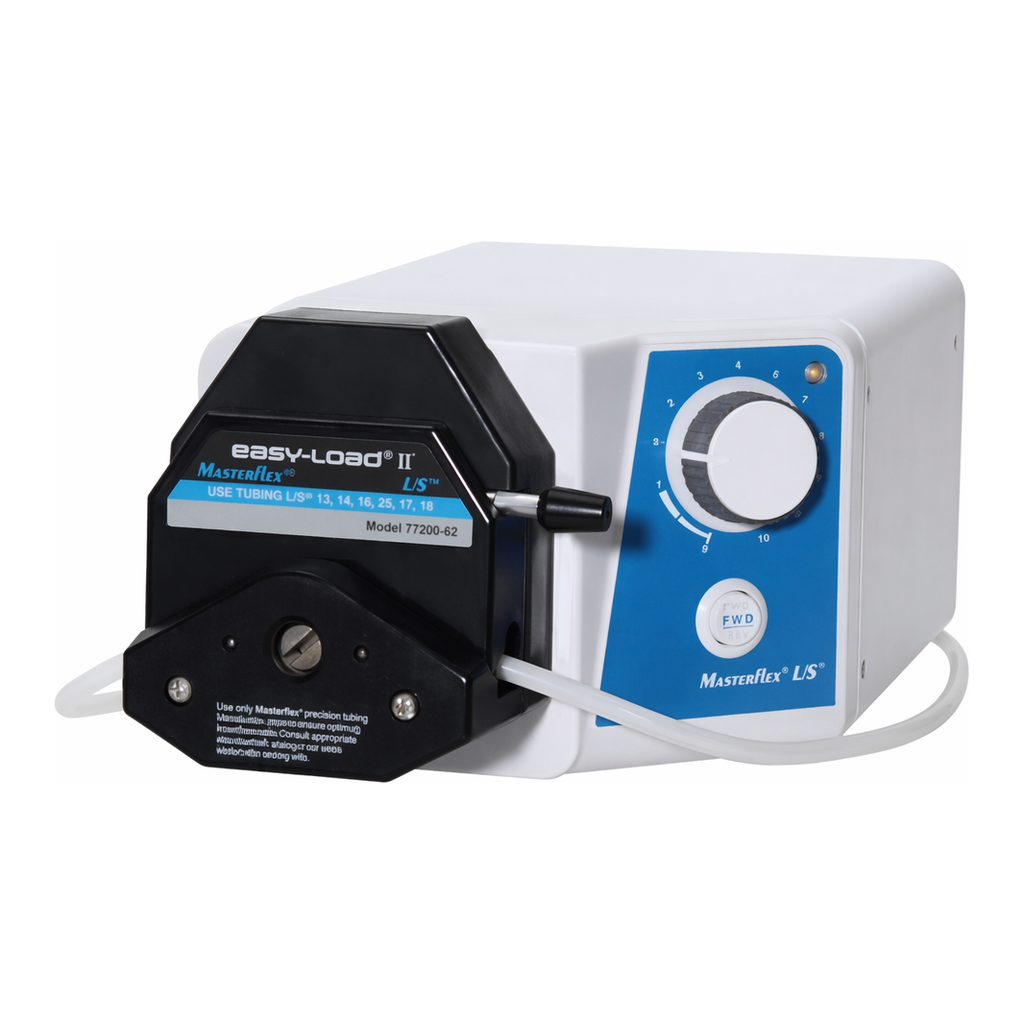

Cole-Parmer Masterflex L/S Analog Variable-Speed Console Drive with Easy-Load II Pump Head

Masterflex L/S Analog Variable-Speed Console Drive with Easy-Load II Pump Head for Precision Tubing, 230 VACMasterflex L/S® Analog Variable-Speed Console Drive with Easy-Load® II Pump Head for Precision Tubing; 230 VAC

Compact, cost effective pump systems for general fluid transfer applications

• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive
• Flow rate 16 to 480 mL/min with included L/S tubing—flow rate depends on drive rpm, pump head, and tubing size

Specifications & Description

• Pump SeriesL/S
• Control TypeVariable-Speed Analog
• Min RPM20
• Max RPM600
• Number of Channels1
• Max Flow Rate (mL/min)480
• Min Flow Rate (mL/min)16
• Max Flow Rate Per Channel (mL/min)480
• Min Flow Rate Per Channel (mL/min)16
• Drive07555-05 (L/S® Analog Variable-Speed Console Drive)
• Pump Head77200-60 (L/S® Easy-Load® II Head)
• Tubing06434-16, 10-ft (C-FLEX® Ultra, L/S® 16)
• Tubing sizes acceptedL/S® 13, 14, 16, 25, 17, 18
• Drive IP ratingIP 22
• Washdown CapableNo
• Duty CycleContinuous
• Power (VAC)230
• Number of Rollers4
• Accuracy±5%
• Power (amps)0.8
• Power (Hz)50/60
• Width (in)9
• Height (in)5.25
• Length (in)10.08
• Width (cm)22.86
• Height (cm)13.34
• Length (cm)25.6
• Open-Head SensorNo
• Housing MaterialPainted Steel and ABS Plastic
• Reversible MotorYes
• Remote I/OStart/Stop
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S® Analog Variable-Speed Console Drive with Easy-Load® II Pump Head for Precision Tubing; 230 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

console drive 07555-05, Easy-Load® II pump head 77200-60, 10-ft C-Flex® ULTRA® tubing, and 6-ft (1.8 m) line cord with IEC 320/CEE22 socket. Shipped with country-specific cord/plug set; please specify ultimate destination when ordering.

Key Features

• Simple operation with single-turn speed control
• Separate power switch enables you to maintain speed setting when turning drive on/off; front-panel LED indicates power on
• Reversible motor lets you easily prime/purge tubing and pump in either direction
• Remote control of start/stop via DB9 connector on back of drive
• Flow rate 16 to 480 mL/min with included L/S tubing—flow rate depends on drive rpm, pump head, and tubing size

More About this Item

Choose a convenient, complete system all with one catalog number.
