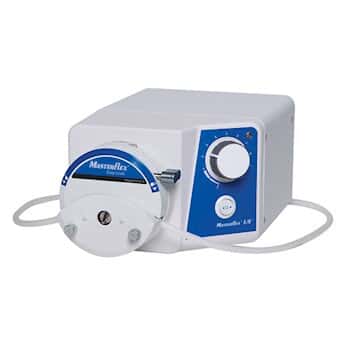

Cole-Parmer Masterflex L/S Variable Speed Pump with Easy-Load II High-Performance Pump Head

상품 한눈에 보기

콤팩트하고 경제적인 유속 제어용 펌프 시스템으로 일반적인 유체 이송에 적합. 단일 회전식 속도 제어로 간단한 작동. 정·역회전 가능하여 프라이밍 및 퍼지 용이. DB9 포트를 통한 원격 스타트/스톱 제어 지원. Easy-Load II 고성능 펌프 헤드 포함.

Masterflex L/S Variable Speed Pump with Easy-Load II High-Performance Pump Head (230 VAC)

Compact, cost-effective pump system for general fluid transfer applications.

하나의 카탈로그 번호로 편리하게 완전한 펌프 시스템을 선택할 수 있습니다.

항목	내용
Control Type	Analog
Pump Series	L/S
Min RPM	20
Max RPM	600
Number of Channels	1
Max Flow Rate (LPM)	1.7
Max Flow Rate (mL/min)	1700
Min Flow Rate (mL/min)	56
Max Flow Rate Per Channel (mL/min)	1700
Min Flow Rate Per Channel (mL/min)	56
Drive	07555-05 (L/S® Analog Variable-Speed Console Drive)
Pump Head	07514-12 (L/S® Easy-Load® Head)
Tubing	06434-16, 10-ft (C-FLEX® Ultra, L/S® 16)
Tubing Sizes Accepted	L/S® 13, 14, 16, 25, 17, 18
Drive IP Rating	IP 22
Washdown Capable	No
Number of Rollers	4
Power (VAC)	230
Accuracy	±5%
Duty Cycle	Continuous
Power (amps)	0.8
Power (Hz)	50/60
Width (in)	7.25
Height (in)	5.25
Length (in)	11.5
Width (cm)	18.4
Height (cm)	13.34
Length (cm)	29.2
Open-Head Sensor	No
Housing Material	Painted Steel and ABS Plastic
Remote I/O	Start/Stop
Reversible Motor	Yes
Anti-Drip	No
Cloud Connected	No
Digital Dispensing	No
Description	L/S® Variable Speed Pump with Easy-Load® II High-Performance Pump Head; 230 VAC
