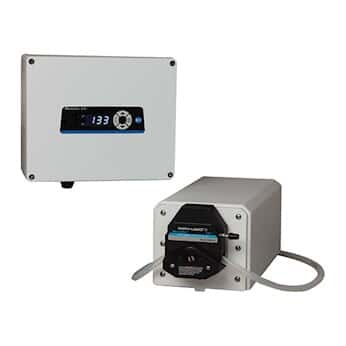

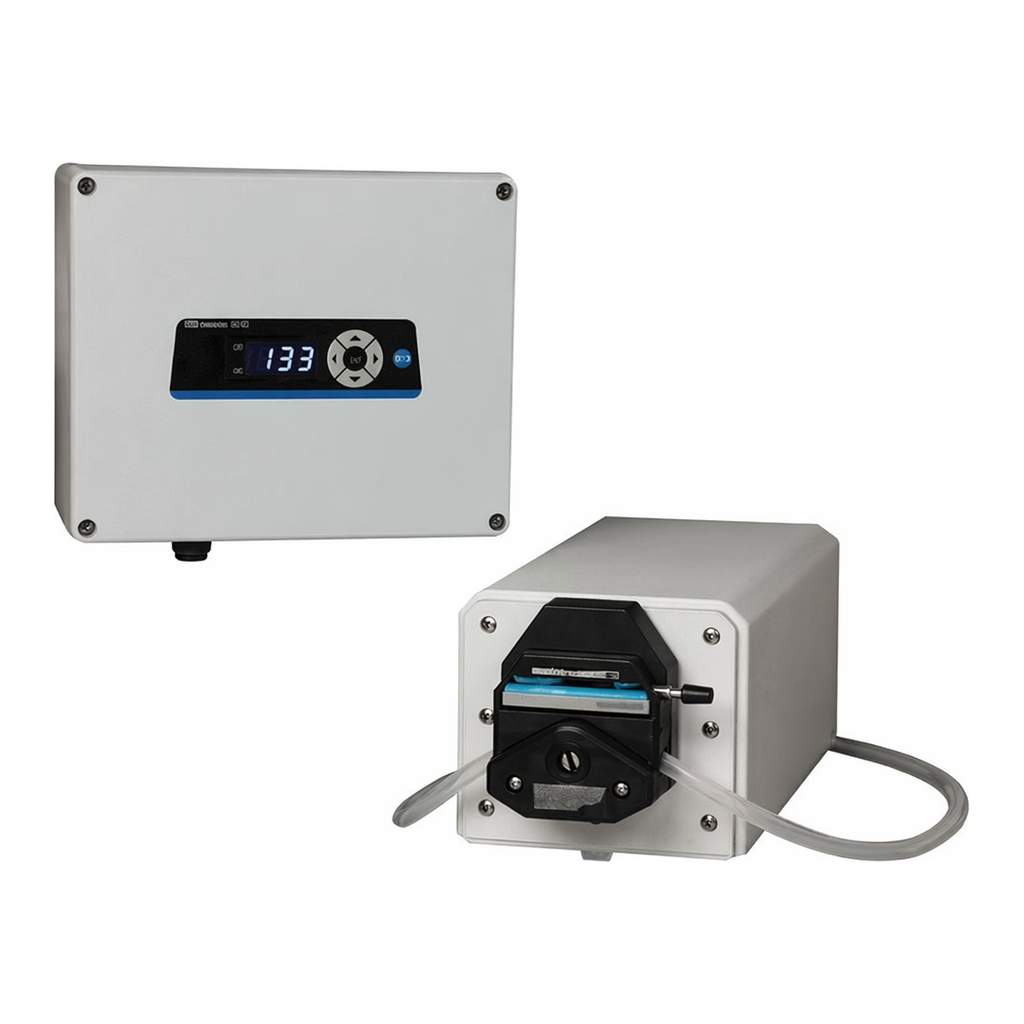

Cole-Parmer Masterflex L/S Digital Precision Modular Washdown Drive with Remote I/O and Easy-Load II Pump Head

Masterflex L/S Digital Precision Modular Washdown Drive with Remote I/O and Easy-Load II Pump Head, 90 to 260 VACMasterflex L/S® Digital Precision Modular Washdown Drive with Remote I/O and Easy-Load® II Pump Head; 90 to 260 VAC

Place where convenient—ideal for limited spaces, hoods, or isolation chambers

• Flow rate 0.06 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm and tubing size
• Three digit LED display shows motor rpm — confirm speed setting at a glance
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction
• Choose between benchtop controller or washdown wall-mount controller drives

Specifications & Description

• Pump SeriesL/S
• Control TypeVariable-Speed Digital
• Min RPM6
• Max RPM600
• Number of Channels1
• Max Flow Rate (LPM)1.7
• Max Flow Rate (mL/min)1700
• Min Flow Rate (mL/min)17
• Max Flow Rate Per Channel (mL/min)1700
• Min Flow Rate Per Channel (mL/min)17
• Drive07557-60 (L/S® Digital Precision Washdown Modular Drive with Remote I/O and Wall-Mount Controller)
• Pump Head77200-62 (L/S® Easy-Load II Pump Head)
• Tubing06434-24, 10-ft (C-FLEX® Ultra, L/S® 24)
• Tubing sizes acceptedL/S® 15, 24, 35, 36
• Drive IP ratingIP 66
• Washdown CapableYes
• Number of Rollers4
• Duty CycleContinuous
• Accuracy±0.25%
• Power (VAC)90 to 260
• Power (amps)2.2A at 115v; 1.1A at 230v
• Power (Hz)50/60
• Width (in)7
• Height (in)6
• Length (in)18.14
• Width (cm)17.78
• Height (cm)15.24
• Length (cm)46.08
• Open-Head SensorNo
• Housing MaterialPainted Steel and Aluminum
• Reversible MotorYes
• Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S Washdown Modular Pump w/ Easy-Load II Head; 600 rpm

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Includes

L/S drive 07557-60, Easy-Load® II pump head 77200-62, 10-ft of C-Flex® ULTRA® tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.

Key Features

• Flow rate 0.06 to 3400 mL/min with L/S tubing—flow rate depends on drive rpm and tubing size
• Three digit LED display shows motor rpm — confirm speed setting at a glance
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction
• Choose between benchtop controller or washdown wall-mount controller drives
• Flow range 17 to 1700 mL/min with included L/S tubing—flow rate depends on drive rpm and tubing size

More About this Item

L/S® modular drives feature reversible pumping and allow you the flexibility to separate the motor from the controller. These accurate modular drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications.

Benchtop controller drives feature a splash-resistant ABS plastic controller housing with IP33 rating and remote control capabilities via a DB9 female connector on back of controller. Wall-mount controller housing is powder-coated aluminum and IP66/NEMA 4X rated for washdown with remote control capabilities via weather-resistant connection on controller.
