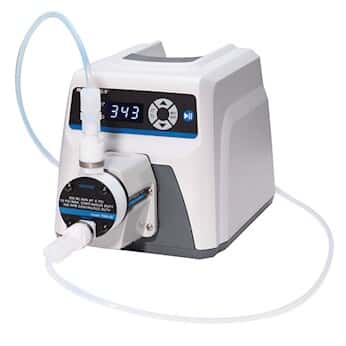

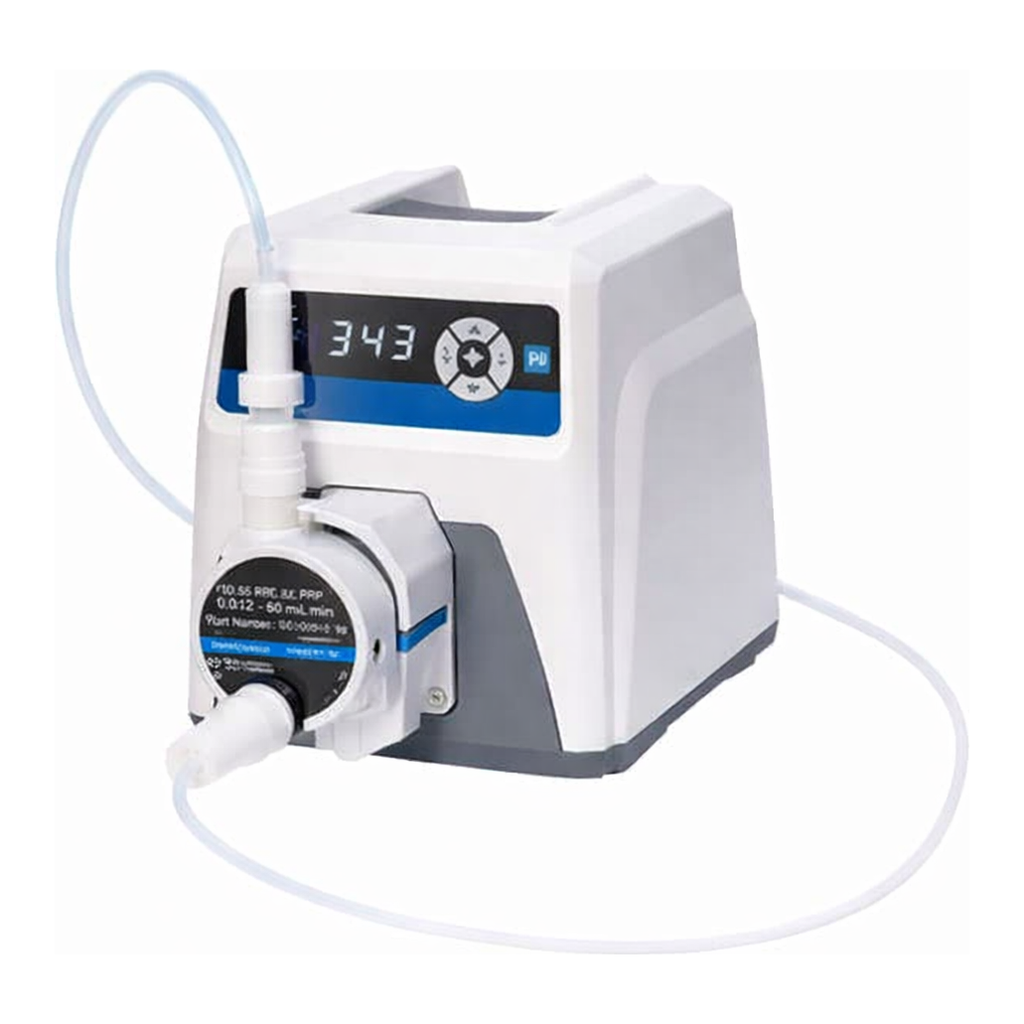

Cole-Parmer Masterflex L/S Variable-Speed Digital Drive System with PTFE-Diaphragm Head

Masterflex L/S Variable-Speed Digital Drive System with PTFE-Diaphragm Head, 90 to 260 VACMasterflex L/S® Variable-Speed Digital Drive System with PTFE-Diaphragm Head; 90 to 260 VAC

Ideal for chemical feed/metering and applications requiring high-purity, high-pressure or both

• Flow range 80 to 800 mL/min—flow rate depends on drive rpm and tubing size
• PTFE wetted parts help maintain fluid purity
• Pump through filters or into pressurized system
• Check valve on inlet side of pump holds prime for up to two hours when pump is off
• Unique geometry minimizes fluid churning and dead volume for high metering accuracy without reagent contamination

Specifications & Description

• Pump SeriesL/S
• Control TypeVariable-Speed Digital
• Min RPM6
• Max RPM600
• Number of Channels1
• Max Flow Rate (mL/min)800
• Min Flow Rate (mL/min)80
• Drive07528-10 (L/S® Variable-Speed Digital Drive with Remote I/O, 600 rpm)
• Pump Head07090-42 (L/S® PTFE-Diaphragm Pump Head)
• Tubing06605-15, 12-ft (PTFE Tubing, 1/4x 3/8)
• Tubing sizes acceptedL/S® 13, 14, 16, 25, 17, 18
• Drive IP ratingIP 33
• Washdown CapableNo
• Power (VAC)90 to 260
• Accuracy±0.25% (1 rpm at 600 and 300 rpm; 0.1 rpm at 100 rpm)
• Duty CycleContinuous
• Power (amps)1.8A at 115v; 1.2A at 230v
• Power (Hz)50/60
• Width (in)8.3
• Height (in)8.5
• Length (in)17.3
• Width (cm)21.08
• Height (cm)21.59
• Length (cm)43.94
• Open-Head SensorNo
• Housing MaterialABS Plastic and Aluminum
• Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
• DescriptionL/S PTFE-Diaphragm Pump System; 6 to 600 rpm, 90 to 260 VAC

Includes

PTFE-diaphragm pump head 07090-42, 12 ft (3.6-m) of PTFE tubing (1/4ID x 3/8 OD), L/S drive 07528-10, two PFA pipe adapters (1/4NPT(F) x 3/8 OD), foot valve, mounting tools, and coupling hardware.

Key Features

• Flow range 80 to 800 mL/min—flow rate depends on drive rpm and tubing size
• PTFE wetted parts help maintain fluid purity
• Pump through filters or into pressurized system
• Check valve on inlet side of pump holds prime for up to two hours when pump is off
• Unique geometry minimizes fluid churning and dead volume for high metering accuracy without reagent contamination
• Accurate and repeatable settings with 3-digit LED display of rpm
• Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
• Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote-control capabilities

More About this Item

These L/S® precision variable-speed console drives offer precise ±0.25% speed control for accurate flow regulation. The large LED display and LED indicators confirm motor rpm and motor direction at a glance. The complete pump systems include all you need to start pumping.
