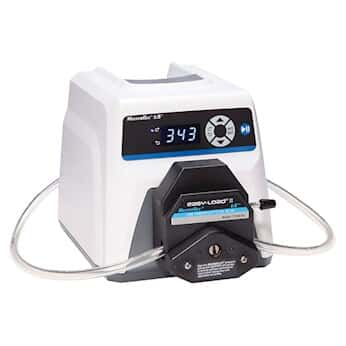

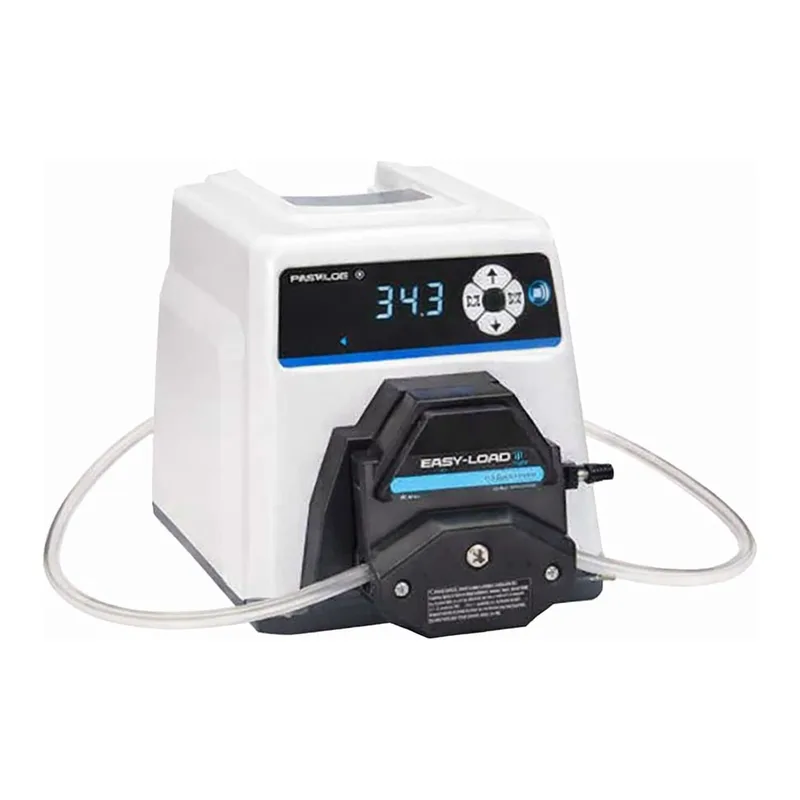

Cole-Parmer Masterflex L/S Variable Speed Analog Console Pump with Easy-Load II Pump Head
Masterflex L/S Variable Speed Analog Console Pump with Easy-Load II Pump Head for High-Performance Tubing, 90 to 260 VACMasterflex L/S® Variable Speed Analog Console Pump with Easy-Load® II Pump Head for High-Performance Tubing; 90 to 260 VAC
Don’t lose control of your metering applications—digital display gives you precise control
- Accurate and repeatable settings with 3-digit LED display of rpm
- Pump fluid in either direction with reversible motor—perfect for purging tubing
- Choose multichannel systems for synchronous flow from all channels
- Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
- Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote-control capabilities
Specifications & Description
- Pump SeriesL/S
- Control TypeVariable-Speed Digital
- Min RPM6
- Max RPM600
- Number of Channels1
- Max Flow Rate (LPM)1.7
- Max Flow Rate (mL/min)1700
- Min Flow Rate (mL/min)17
- Max Flow Rate Per Channel (mL/min)1700
- Min Flow Rate Per Channel (mL/min)17
- Drive07528-10 (L/S® Variable-Speed Digital Drive with Remote I/O, 600 rpm)
- Pump Head77200-62 (L/S® Easy-Load II Pump Head)
- Tubing06434-24, 10-ft (C-FLEX® Ultra, L/S® 24)
- Tubing sizes acceptedL/S® 15, 24, 35, 36
- Drive IP ratingIP 33
- Washdown CapableNo
- Number of Rollers4
- Duty CycleContinuous
- Accuracy±0.25% (1 rpm at 600 and 300 rpm; 0.1 rpm at 100 rpm)
- Power (VAC)90 to 260
- Power (amps)1.8A at 115v; 1.2A at 230v
- Power (Hz)50/60
- Width (in)8.3
- Height (in)8.5
- Length (in)13.38
- Width (cm)21.08
- Height (cm)21.59
- Length (cm)33.99
- Open-Head SensorNo
- Housing MaterialABS Plastic and Aluminum
- Reversible MotorYes
- Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
- Anti-DripNo
- Cloud ConnectedNo
- Digital DispensingNo
- DescriptionL/S Precision Pump System, Easy-Load II Head; 6-600 rpm, 90-260V
Includes
L/®S drive 07528-10, Easy-Load® II pump head 77200-62, and 10-ft of C-Flex® ULTRA tubing 06434-24.
Key Features
- Accurate and repeatable settings with 3-digit LED display of rpm
- Pump fluid in either direction with reversible motor—perfect for purging tubing
- Choose multichannel systems for synchronous flow from all channels
- Maximize processes in a minimal footprint by stacking splash-resistant, IP33-rated drives
- Two ways to control speed, direction, and start/stop—use either the membrane keypad or remote-control capabilities
- Flow range 17 to 1700 mL/min with L/S 24 tubing—flow rate depends on drive rpm and tubing size
More About this Item
These L/S® precision variable-speed console drives offer precise ±0.25% speed control for accurate flow regulation. The large LED display and LED indicators confirm motor rpm and motor direction at a glance. The complete pump systems include all you need to start pumping.
