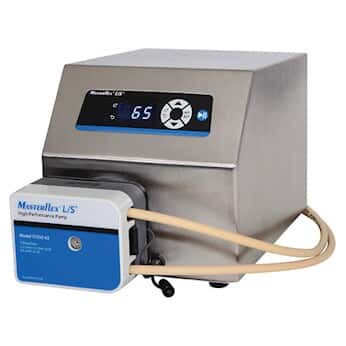

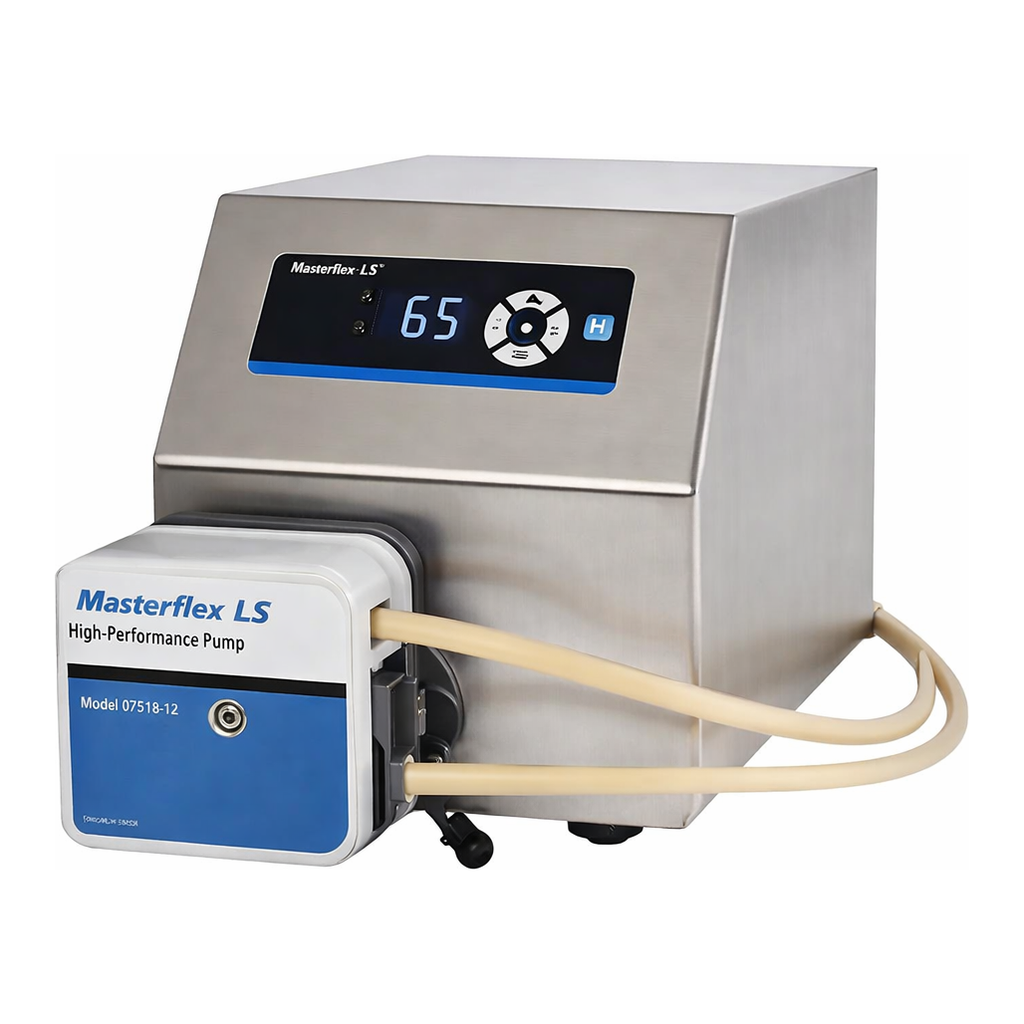

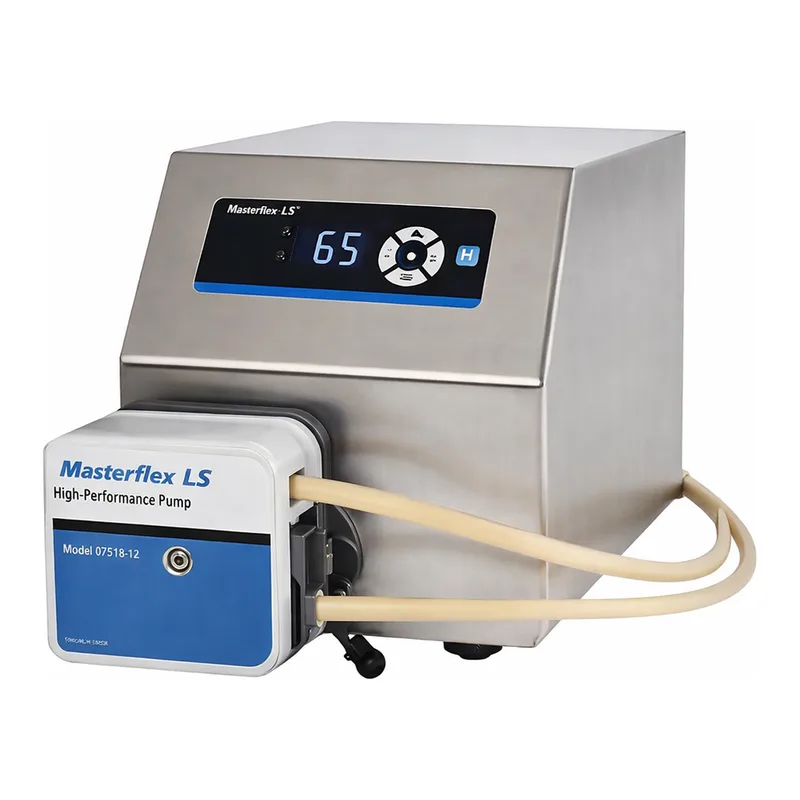

Cole-Parmer Masterflex L/S Digital Drive with Remote I/O, Open-Head Sensor, and High-Performance Pump Head

Masterflex L/S Digital Drive with Remote I/O, Open-Head Sensor, and High-Performance Pump Head for High-Pressure Tubing, SS HousingMasterflex L/S® Digital Drive with Remote I/O, Open-Head Sensor, and High-Performance Pump Head for High-Pressure Tubing, SS Housing

Pump at pressures up to 125 psi (8.5 bar)

• Flow rate 0.9 to 90 mL/min (depends on drive rpm and tubing size)
• Four digit LED display shows motor rpm—confirm speed setting at a glance
• Integrated open-head sensor stops drive motor when pump head is opened
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction

Specifications & Description

• Control TypeVariable-Speed Digital
• Pump SeriesL/S
• Min RPM1
• Max RPM100
• Number of Channels1
• Max Flow Rate (mL/min)90
• Min Flow Rate (mL/min)0.9
• Max Flow Rate Per Channel (mL/min)90
• Min Flow Rate Per Channel (mL/min)0.9
• Drive07528-45 (L/S® Precision Process Drive with Open-Head Sensor, 100 rpm)
• Pump Head77252-62 (L/S® High-Performance Head with Open-Head Sensor)
• Tubing05664-16, 8-ft (High-Pressure PharMed® BPT, L/S® 16HP)
• Tubing sizes acceptedL/S® 14HP, 16HP, 15HP, 24HP, 15, 24, 35, 36
• Drive IP ratingIP 66
• Washdown CapableYes
• Accuracy±0.25% (1 rpm at 600; 0.1 rpm at 100 rpm)
• Duty CycleContinuous
• Number of Rollers3
• Max Pressure (bar)8.5
• Power (VAC)90 to 260
• Max Pressure (PSI)125
• Power (amps)1.8A at 115v; 1.2A at 230v
• Power (Hz)50/60
• Width (in)9
• Height (in)9.3
• Length (in)14.75
• Width (cm)22.9
• Height (cm)23.6
• Length (cm)37.4
• Open-Head SensorYes
• Housing MaterialStainless steel
• Reversible MotorYes
• Remote I/O4 to 20 mA, 0 to 10 V, start/stop and direction via contact closure
• Anti-DripNo
• Cloud ConnectedNo
• Digital DispensingNo
• DescriptionL/S High-Pressure Pump System; 1 to 100 rpm, 90 to 260 VAC

![Two year warranty](https://pim-resources.coleparmer.com/icon/2yrwarranty.gif Two year warranty)

Key Features

• Flow rate 0.9 to 90 mL/min (depends on drive rpm and tubing size)
• Four digit LED display shows motor rpm—confirm speed setting at a glance
• Integrated open-head sensor stops drive motor when pump head is opened
• Reversible motor—purge tubing before or after pumping; pump fluid in either direction
• LED indicators confirm motor direction
• Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications
• Separate speed and power (on/off) control—maintain speed setting while turning pump on/off
• NEMA 4X (IP66) rated housing
• Remote control capabilities via a watertight connector on back of drive
• High-Performance pump head offers automatic occlusion—optimized when pump head is closed and latched
• Stainless-steel housing is IP66 / NEMA 4X rated for washdown
• Open-head interlock sensor stops drive motor when pump head is open

More About this Item

These accurate console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires cable assembly 77300-32.

Operation of the integrated open-head sensor requires use of sensor-equipped L/S Easy-Load II pump heads 77200-30 or 77200-32.
