Centrifugal Filters

Description

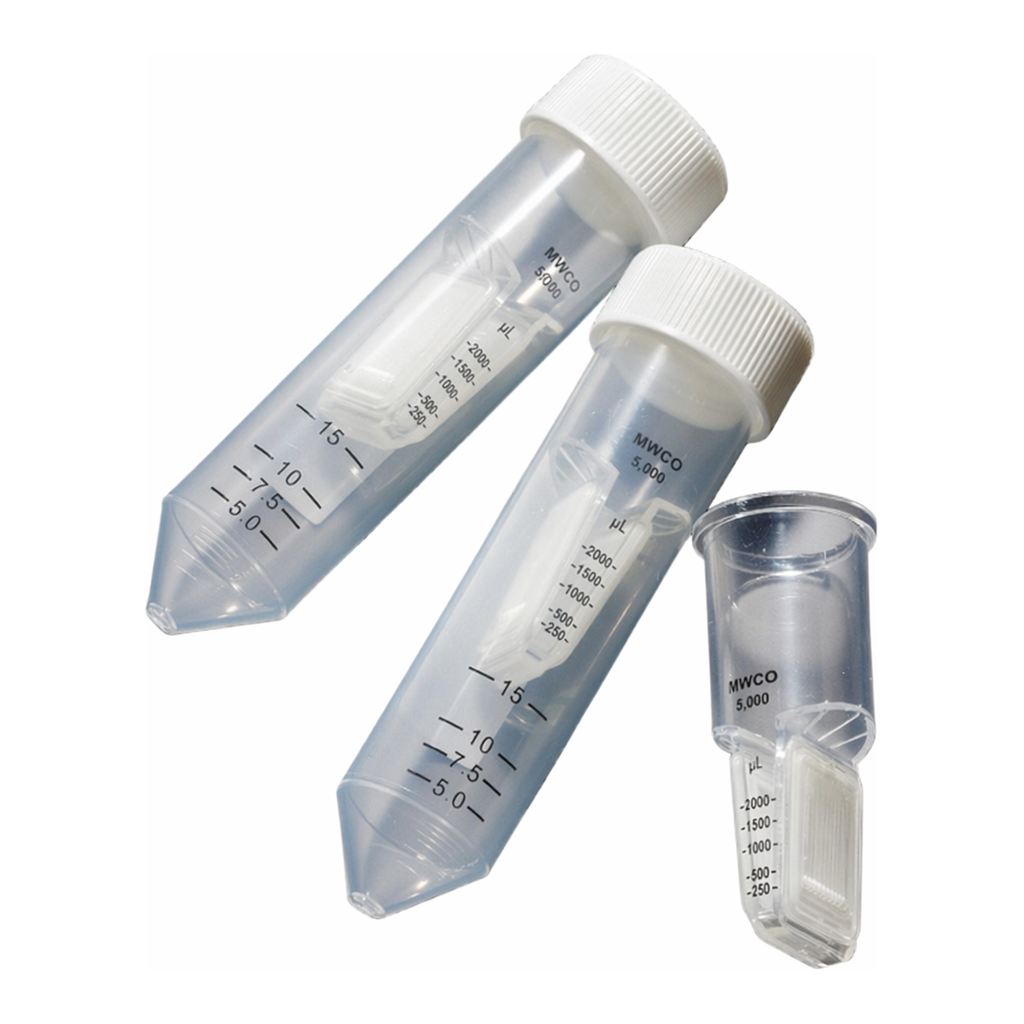

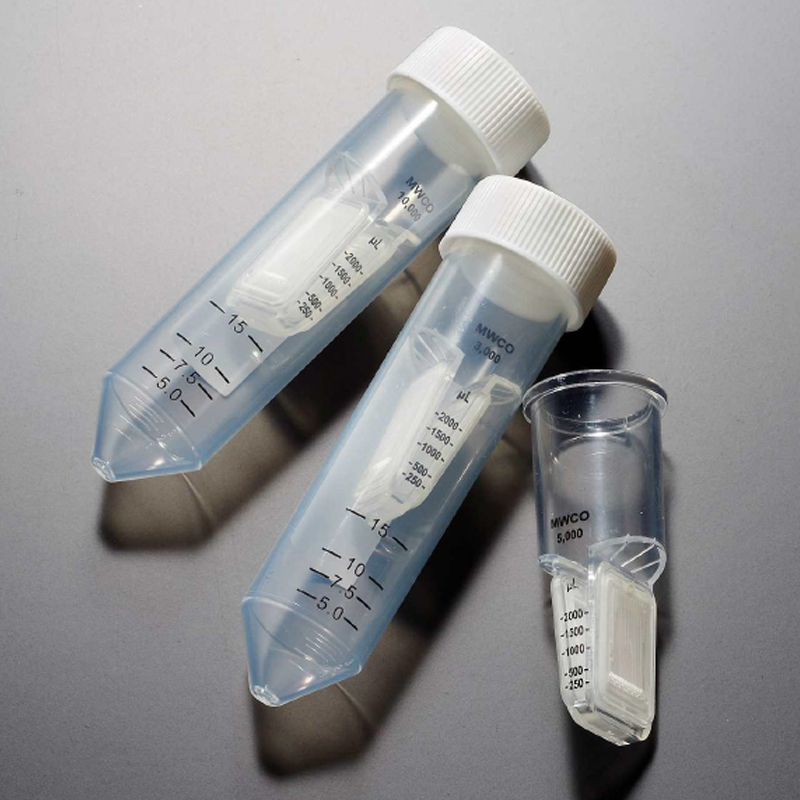

Centrifugal Filters, With 50mL conical tube, PES membrane, Non-sterile

Purpose

For the centrifugal concentration and purification of biological samples

Materials

• Cap/Sealing gasket: PE (Polyethylene)
• Color: White
• Centrifuge tube: PP (Polypropylene)
• Filter: Filter tube (MBS/Methyl methacrylate-Butadiene-Styrene)
• Filter slice (PE/Polyethylene)
• Membrane: PES (Polyethersulfone)

Features

-Operating temperature range: 0°C - 40°C
-Available in multiple pore sizes with the following defined Molecular Weight Cut-Offs (MWCO): 5, 10, 30, 50 and 100 KD
-Maximum Sample Volume: 12.0 mL (Swinging bucket), 10.0 mL (Fixed angle rotor)
-Final Concentrate Volume: 200 μL
-Fits centrifuges that accept standard 50 mL conical tubes
-Maximum Centrifugal Force: Swinging bucket rotor (4,000 x g), Fixed angle rotor (5,000 x g)
-Active membrane area: 5.48 cm²
-Provides high recoveries more than 90%
-The vertical design and available membrane surface area provide fast sample processing
-Features deadstop to prevent samples from spinning to dryness
-Manufactured in a class 100,000 room environment
-Manufactured under ISO13485 and ISO9001 quality management system

Dimensions (Unit: mm)

Filter device in tube (capped)

Length: 119 mm Diameter: 34.5 mm

Filter device

Length: 72 mm Diameter: 29.5 mm

The membrane is not compatible with the following

• Acetic Acid (≥ 25%)
• Acetonitrile (≥ 30%)
• Alipha􀀟c & aroma􀀟c esters
• Amines
• Ammonium hydroxide (≥ 5%)
• Aroma􀀟c & chlorinated hydrocarbons
• Butyl acetate (≥ 40%)
• Dimethyl acetamide (DMAC) (≥ 30%)
• Ethers
• Hydrochloric acid (≥ 0.5 N at 50°C)
• Isopropyl Alcohol (≥ 25%)
• Ketone
• Methylene chloride (≥ 1%)
• Methyl ethyl ketone (≥ 1%)
• Phosphoric acid (≥ 1 N)
• Sodium deoxycholate (≥ 5%)
• Sodium hydroxide (≥ 0.5 N at 50°C)
• Sodium hypochlorite (≥ 0.04%)
• Tetrahydrofuran (≥ 5%)
• Toluene (≥ 1%)
