Norgen Plasma/Serum Cell-Free Circulating DNA Purification Maxi Kit Dx
혈장 및 혈청에서 세포유리 순환 DNA(cfc-DNA)를 빠르고 효율적으로 정제하여 진단용 분석에 활용 가능. 5–10 mL 시료 처리, 25–50 µL 유연한 용출 부피 제공. PCR, qPCR, NGS 등 다양한 후속 분석과 호환. 억제물 없는 고순도 DNA 확보.
- 브랜드
- Norgen
- 판매단위
- pk
카탈로그
1개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다Norgen · Norgen Plasma/Serum Cell-Free Circulating DNA Purification Maxi Kit Dx

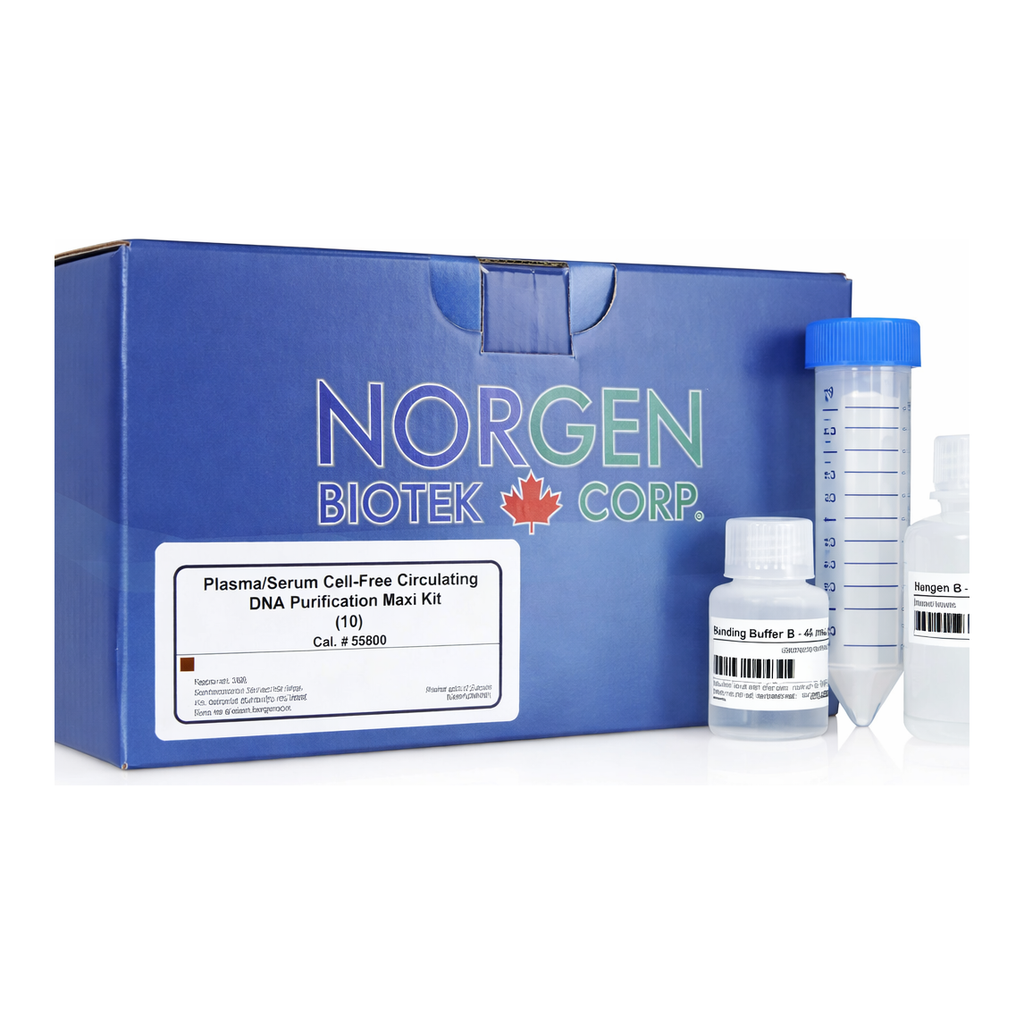

Norgen Plasma/Serum Cell-Free Circulating DNA Purification Maxi Kit Dx
SKU: Dx55800
For isolating cell-free circulating DNA (cfc-DNA) from plasma/serum for subsequent in vitro diagnostic use.
Features and Benefits
- Concentrate circulating DNA into a flexible elution volume (25–50 µL)
- Isolate inhibitor-free cell-free circulating DNA
- Compatible with Streck Cell-Free DNA BCT® Tubes
- Based on spin column chromatography using Norgen’s proprietary resin
- Fast and reliable purification of high-quality DNA from plasma/serum
- Compatible with downstream applications (PCR, qPCR, methylation PCR, Southern blot, microarrays, NGS)
Background
Cell-free circulating DNA (cfc-DNA) in plasma/serum provides biomarkers for cancers, autoimmune diseases, and fetal DNA in maternal blood. It is used for non-invasive diagnostics, genetic screening, and monitoring of disease progression. Typically, cfc-DNA fragments are shorter than 1000 bp.
Kit Versions Overview
| Kit Type | Input Volume | Purification Time | Key Features |
|---|---|---|---|
| Micro Kit Dx | 10–200 µL | 15–20 min | Rapid purification from small volumes |
| Mini Kit Dx | 200–500 µL | 15–20 min | High-quality DNA recovery |
| Midi Kit Dx | 1–4 mL | 90 min | Two-column system for large samples |
| Maxi Kit Dx | 5–10 mL | 90 min | Two-column system for purification & concentration |
Kit Specifications
| Specification | Details |
|---|---|
| Minimum Plasma/Serum Input | 5 mL |
| Maximum Plasma/Serum Input | 10 mL |
| Size of DNA Purified | All sizes |
| Elution Volume | 25–50 µL |
| Time to Complete 10 Purifications | 90 minutes |
| Average Yields* | Variable depending on specimen |
*Refer to product manual (page 7) for yield and quantification details.
Storage Conditions and Product Stability
All buffers are stable at room temperature (15–25°C) for up to 2 years.
Proteinase K solution is stable for 2.5 years at room temperature; store at 2–8°C to extend shelf life.
Kit Components
| Component | Cat. Dx55100 (Mini, 50 preps) | Cat. Dx55500 (Micro, 50 preps) | Cat. Dx55600 (Midi, 20 preps) | Cat. Dx55800 (Maxi, 10 preps) |
|---|---|---|---|---|
| Binding Buffer B | 2 × 40 mL | 40 mL | 2 × 85 mL + 1 × 12 mL | 2 × 85 mL + 1 × 40 mL |
| Proteinase K | 2 × 1 mL | 0.6 mL | 6.5 mL | 8 mL |
| Solution WN | 18 mL | 18 mL | 18 mL | 18 mL |
| Wash Solution A | 38 mL | 18 mL | 18 mL | 18 mL |
| Elution Buffer B | 8 mL | 8 mL | 30 mL | 30 mL |
| Micro Spin Columns | 50 | 50 | 20 | 10 |
| Mini Spin Columns | 50 | – | – | – |
| Midi Spin Columns | – | – | 20 | – |
| Maxi Spin Columns | – | – | – | 10 |
| Collection Tubes | 100 | 50 | 20 | 10 |
| Elution Tubes (1.7 mL) | 100 | 50 | 20 | 10 |
| Product Insert | 1 | 1 | 1 | 1 |
Supporting Data
Figure 1. Purification of DNA from different plasma volumes
Norgen’s Mini Kit vs Competitor Q – relative recovery of 5S rRNA gene.
그래프 데이터 요약
| Plasma Volume | Norgen (Relative Amount) | Competitor Q (Relative Amount) |
|---|---|---|
| 200 µL | 약 1.3 | 약 1.1 |
| 300 µL | 약 1.9 | 약 1.5 |
| 400 µL | 약 2.7 | 약 2.3 |
Figure 2. Linearity of DNA purified from increasing plasma volumes
| Different Plasma Volumes | Relative Amount | % of Linearity |
|---|---|---|
| 200 µL | 약 1.4 | 100 |
| 300 µL | 약 1.8 | 98 |
| 400 µL | 약 2.0 | 98 |
Figure 3. Detection of the human 5S gene
Average Ct Value vs PCR Input
| PCR Input (µL) | Average Ct Value Range | Sample Volumes |
|---|---|---|
| 2 | 25–26 | 200, 300, 400 µL |
| 4 | 24–25 | 200, 300, 400 µL |
| 8 | 23–24 | 200, 300, 400 µL |
Ct values decrease with increasing PCR input, indicating absence of inhibitors.
Figure 4. Purification of DNA from different plasma volumes (Maxi Kit)
| Plasma Volume | Norgen | Competitor Q |
|---|---|---|
| 5 mL | 약 30 | 약 25 |
| 8 mL | 약 40 | 약 35 |
| 10 mL | 약 50 | 약 45 |
Figure 5. Linearity of DNA purified from increasing plasma volumes (Maxi Kit)
| Plasma Volume | Relative Amount | % of Linearity |
|---|---|---|
| 5 mL | 약 40–45 | 100 |
| 8 mL | 약 45–50 | 94 |
| 10 mL | 약 50–55 | 96 |
Documentation
Protocols
- Dx55500 Micro Kit Protocol (50 preps)
- Dx55100 Mini Kit Protocol (50 preps)
- Dx55600 Midi Kit Protocol (20 preps)
- Dx55800 Maxi Kit Protocol (10 preps)
Application Notes
Safety Data Sheets
Flyers
- Plasma/Serum Cell-Free Circulating DNA Purification Kits Flyer
- Non-Invasive Prenatal Testing (NIPT) Flyer
