■ Designed to work with either one to two independent and flexible washing levels
■ Tank Size : w370×d480×h620 mm (110L)
■ Washing up to 95°C - antibacterical thermal disinfection
■ Microprocessor programmable electronic control
■ Serial port RS232 for connection to external printer or PC
■ Alkaline powder detergent dispenser
■ Washing chamber and internal door in AISI 316L stainless steel
■ 2 independent washing levels through telescopic guides
■ 다양한 Optional Rack을 이용 실험실에서 사용되는 거의 모든 초자를 세척 가능합니다.
■ Electronic door lock system for user safety
■ Upper and lower trolleys D-CS1 and D-CS2 included
■ smeg
● Wash tank와 Door재질은 AISI 316L 스텐인레스 강
(내산성-크롬-니켈-몰리브데늄 합금강)
● 2단 세척구조
● 세척 프로그램 : 6개 (추가 2개프로그램 제공)
● 분말 알카리세제 사용 및 디스펜서 장착 (액체 알카리세제용 펌프 장착 가능)
● 액체 산성세제용 정량펌프 장착
● 증류수 세척 연결 가능
● Water Softner (자동경수연화 장치) 장착
● 세척 잔여시간, 진행과정 등 디지털 디스플레이 기능
● 안전장치 : Door Open시 정지기능, 수위조절기능과 히팅방지기능,
Error 메세지 Display등
| Cat. No |
Model |
Description |
| W07-78-010 |

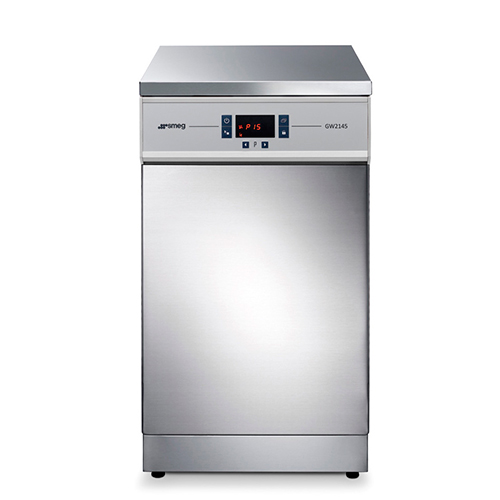

GW2145 |
Glassware Washer 110L |
| Cat. No. |
W07-78-010 |
| Model |
GW2145 |
| --- |
--- |
| Electronic Control |
Microprocessor |
| Standard Program |
9 |
| Customisable Program |
6 |
| Tank Internal Temp. |
From Room Temp. to 95℃ |
| Safety Lock |
Safety Thermostats, Door Interlock |
| Communication |
RS232 Serial Port for PC or Printer |
| Inlet |
Cold Water (Max. 6℃), Demineralized Water (<30us/cm) |
| Reciculation Pump |
200 L/min |
| Heating |
Electrical 3.3 kW Max. |
| Material |
Stainlss Steel (Tank : 316L, External : 304 |
| Outside Dimension |
w450×d620×h850mm |
| Weight |
56kg |
| Power |
230V, 60Hz |
| Cat. No |
Model |
Description |
| W07-78-510 |
LM24 |
Universal Rack for Narrow Neck glassware 24 Position |
| W07-78-520 |
LPM24 |
Rack for Narrow Neck Glassware & Pipettes 12 + 12 Position |
| W07-78-525 |
KP60 |
Rack for Test Tube or Vail 60 Position |
| W07-78-530 |
SB9 |
Rack for Cylinder of teunnel type Placed on D-CS1 & D-CS2 |
| W07-78-550 |
SB14 |
Rack for Beaker & Flask (up to 1L) Placed on D-CS1 & D-CS2 |
