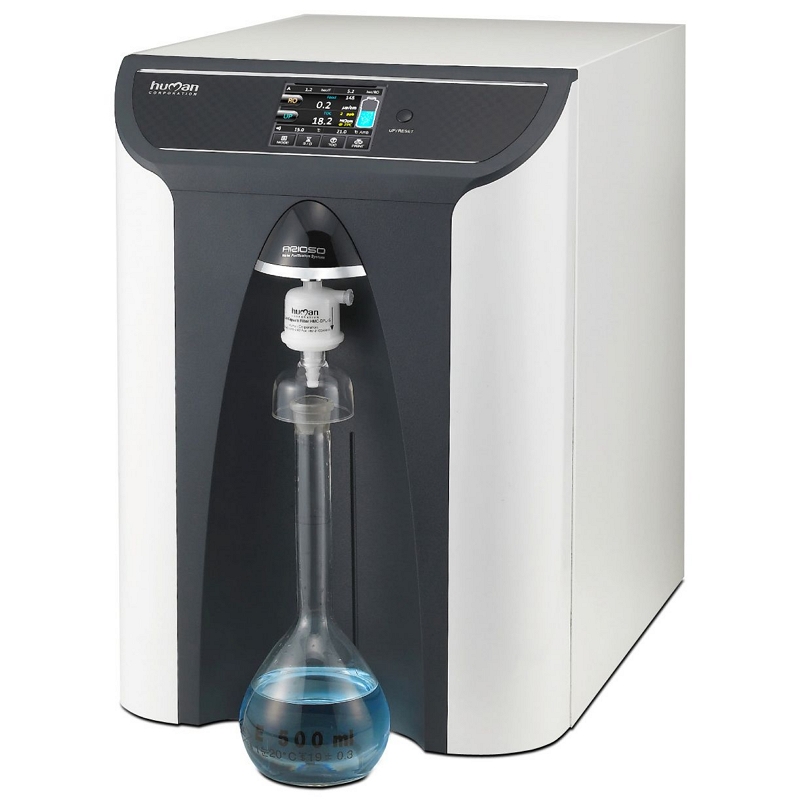

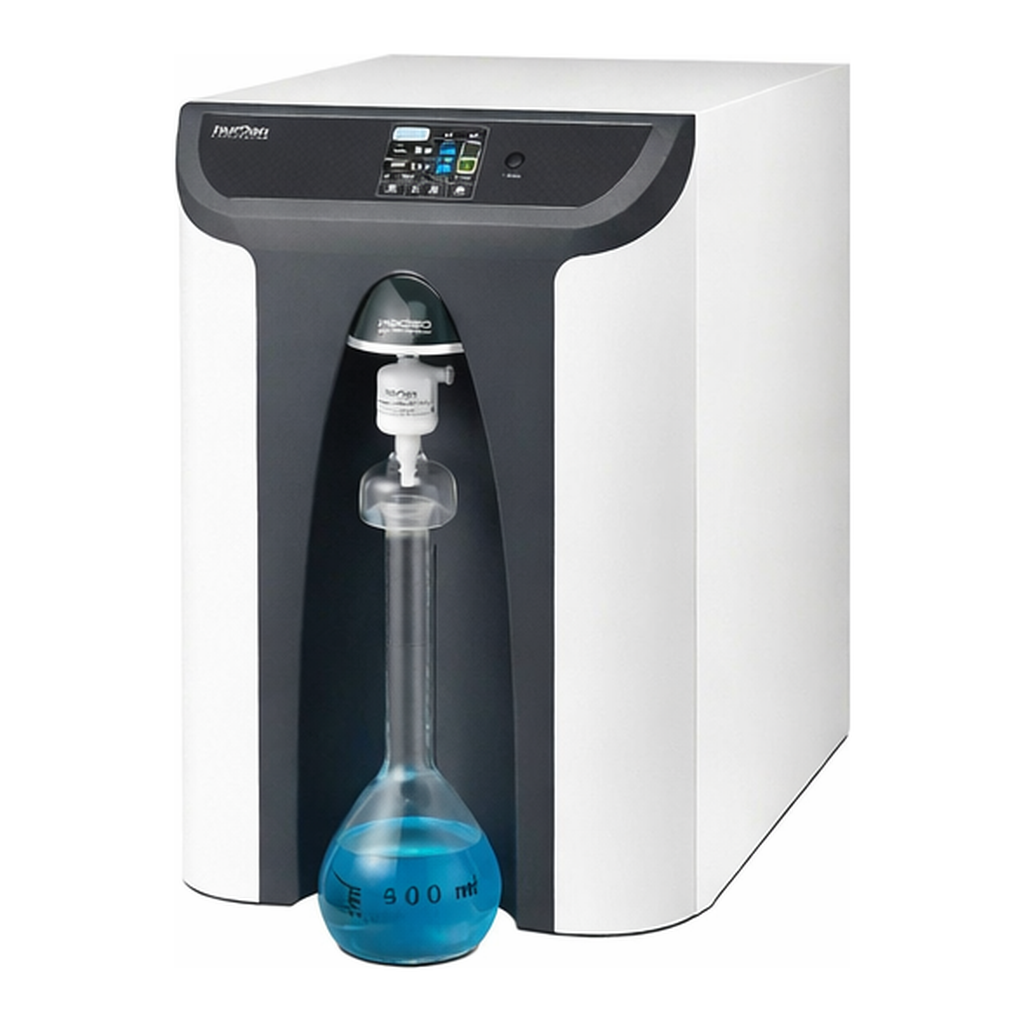

Lklab Korea RO & UP Water Purification System / 순수 / 초순수 제조 장치, Arioso Series

■ 실험실 및 연구소 등에 널리 이용 되어지는 순수/초순수 제조 장치
1. RO & UP Water Purification System ( 2 in 1 ) / 순수 & 초순수 제조 장치
2. RO Water Purification / 순수 제조 장치
3. UP Water Purification / 초순수 제조 장치
■ RO(역삼투압)으로 생산된 물은 시약 및 배지 준비, 유리제품 세척, Autoclave 와 같은 일반적인 실험에 적합
■ UP(초순수)로 생산된 물은 HPLC, GC, MS 등 민감한 분석에 적합
■ Water Sensor는 자동으로 Calibration
■ Filter Exchange Indicator : Beep & Charactor Display
■ 자가 진단 기능 내장
■ Dispenser와 함께 사용 가능 (Option)
■ Certified CE, ISO 9001, ISO 14001,Certified NRTL (UL)
■ TOC 모델은 전도도 미생물 오염 측정 가능
■ 원수가 오염이 심할 때 전처리시스템이 필요
■ Human

공통 Specification

| Model | | Arioso Power I / II / III | Arioso Power II (TOC) / III (TOC) |
| --- | --- | --- |
| Product Flow Rate ( RO, UP ) | | 15 L/Hr( I ), 25 L/Hr(II ), 35 L/Hr(III) | 25 L/Hr(II ), 35 L/Hr(III) |
| Water Quality Display | Feed Water | 0 to 999 us/cm | |
| RO | 0.2 to 250.0 us/cm | |
| UP | up to 18.3 ㏁-cm | |
| Temp. | 0 to 100℃ | |
| TOC | - | 0 to 200 ppb |
| Display & Contoller | | Large Color 70×52 Touch Screen | |
| Power | | 230V, 50/60Hz, 60W | |

각 Model별 상세 스펙 구분 ( Type )

Type	Scholar	Scholar-PF	Scholar-UV	Scholar PF-UV	Bio	Intergrate
0.2um Final Filter	O	X	X	X	O	O
Pyrogen Free Final Filter	X	O	O	O	X	X
258/185 UV Lamp	X	X	O	O	X	O
MW 5000 UF Filter	X	X	X	X	O	O
Water Quality
TOC (ppb)	5 ~ 10	5 ~ 10	0 ~ 5	0 ~ 5	5 ~ 10	0 ~ 5
Endotoxin (Eu/ml)	-	< 0.125	-	< 0.125	< 0.001	< 0.001
Bacteria (cfu/ml)	< 1	< 1	< 1	< 1	< 0.1	< 0.1
Parcibles (>0.22um/ml)	< 1	< 1	< 1	< 1	< 1	< 1
Size, wxdxh, mm	320 x 490 x 475				390 x 490 x 475

RO& UP System, 전자동 순수/초순수 제조 장치

• ● RO (순수), UP (초순수) 겸용 사용
• ● 공급수 전처리 장치인 PT 3air 기본 포함 ( Prefilter, A/C Filter )
• ● 2 Step Lever Sensor 기본 포함, Water Tank는 별도 구매해야함

Arioso Power Scholar RO& UP System

Cat. No.	Model	Capacity	Type
W08-78-004	Arioso Power I S	15 L/hr	Scholar
W08-78-006	Arioso Power I S-PF	Scholar-PF
W08-78-036	Arioso Power II S	25 L/hr	Scholar
W08-78-038	Arioso Power II S-PF	Scholar-PF
W08-78-084	Arioso Power III S	35 L/hr	Scholar
W08-78-086	Arioso Power III S-PF	Scholar

Arioso Power Scholar-UV RO& UP System

Cat. No.	Model	Capacity	Type
W08-78-008	Arioso Power I UV	15L/hr	Scholar UV
W08-78-010	Arioso Power I UV-PF	Scholar UV-PF
W08-78-040	Arioso Power II UV	25L/hr	Scholar UV
W08-78-042	Arioso Power II UV-PF	Scholar UV-PF
W08-78-072	Arioso Power II UV TOC	Scholar UV TOC
W08-78-088	Arioso Power III UV	35L/hr	Scholar UV
W08-78-089	Arioso Power III UV-PF	Scholar UV-PF
W08-78-091	Arioso Power III UV TOC	Scholar UV TOC

Arioso Power Bio RO& UP System

Cat. No.	Model	Capacity	Type
W08-78-012	Arioso Power I B	15L/hr	Bio
W08-78-044	Arioso Power II B	25L/hr
W08-78-092	Arioso Power III B	35L/hr

Arioso Power Integrate RO& UP System

Cat. No.	Model	Capacity	Type
W08-78-016	Arioso Power I IN	15L/hr	Integrate
W08-78-048	Arioso Power II IN	25L/hr	Integrate
W08-78-080	Arioso Power II IN TOC	Integrate TOC
W08-78-096	Arioso Power III IN	35L/hr	Integrate
W08-78-098	Arioso Power III IN-TOC	Integrate TOC

RO System, 전자동 순수 제조 장치

Cat. No.	Model	Capacity	Filter Type
W08-78-100	Arioso RO 180	15 L/hr	180
W08-78-104	Arioso RO 280	25 L/hr	280
W08-78-108	Arioso RO 380	35 L/hr	380

* 상세사항은 Arioso Power RO/UP System과 동일함, 단 UP 관련 사항 제외

* 공급수 전처리 장치인 PT 1air 기본 포함 ( Prefilter )

* 2 Step Lever Sensor 기본 포함, Water Tank는 별도 구매해야함

UP System, 전자동 초순수 제조 장치

Cat. No.	Model	Capacity	Filter Type
W08-78-112	Arioso UP 900 S	90 L/hr	Scholar
W08-78-114	Arioso UP 900 S-PF	Scholar-PF
W08-78-116	Arioso UP 900 UV	Scholar UV
W08-78-118	Arioso UP 900 UV-PF	Scholar UV-PF
W08-78-120	Arioso UP 900 B	Bio
W08-78-124	Arioso UP 900 IN	Integrate
W08-78-132	Arioso UP 900 UV TOC	Scholar UV TOC
W08-78-140	Arioso UP 900 IN TOC	Integrate TOC

* 상세사항은 Arioso Power RO/UP System과 동일함, 단 RO 관련 사항 및 Capacity 제외

Arioso Dispenser Unit with Stand, 스텐드형 디스펜서

Cat. No.	Model	Display & Control	길이
W08-78-144	D-AR	Touch Screen	180Max. 3 m
W08-78-146	D-ARB	Wall-mounting Bracket

* Dispensing Mode : Low Flow, Medium Flow, High Flow, Continuous Flow
* 초순수 유지를 위하여 재순환 기능
* Error Display : Filters Replacement Period
* Volumetric & Timer Dispensing : Self Calibration

Accessories for Arioso Water Purification, 아리오소 물장치용 악세사리

Spare Filter for Arioso Model, Arioso 물장치 교체용 필터

Cat. No.	Model	Type
W08-78-151	Arioso RO Pack I	Membrane Filter x 1ea
W08-78-154	Arioso RO Pack II	Membrane Filter x 2ea & 2 Hole
W08-78-157	Arioso RO Pack III	Membrane Filter x 2ea & 2 Hole
W08-78-160	Arioso UP Pack -SB	UP Filters for Scholar & Bio
W08-78-163	Arioso UP Pack - UI	UP Filters for Scholar-UV & Integrate
W08-78-172	Arioso TOC Pack	TOC Filters for Scholar-UV & Integrate

Spare Filters for Human All Model, Human 물장치 교체용 필터

Cat. No.	Model	Type
W08-78-235	HMC-S14 AC	14` Super A/C Filter
W08-78-240	HMC-S14 ION	14` Super Ion Filter
W02-78-920	HMC-0.2CF	0.2μm Capsule filter
W02-78-923	HMC-PF	Pyrogen Free filter
W02-78-930	HMC-254UV	254/185 UV Lamp
W02-78-941	HMC-MW5000L	MW5000 UF filter Large
W02-78-943	HMC-MW5000M	MW5000 UF filter Medium
W08-78-245	HMC-AP	Printer
W08-78-250	HMC-APP	Printer Paper

Water Tank & Accessories, 저장용 탱크와 관련 악세사리

Cat. No.	Model	용량	Type
W08-78-200	HWP-B20L	20 L	일반 백색 Tank
W08-78-205	HWP-B40L	40 L
W08-78-210	HWP-B60L	60 L
W08-78-215	HWP-M40L	40 L	불투명 Molding type
W08-78-220	HWP-M60L	60 L
W08-78-225	HWP-SVF02	0.2um SY Vent Filter
W08-78-230	HWP-CVF02	0.2um CF Vent Filter

* Built-in Over Flow Drain Valve & Tube, 입수 Fitting
