■ Designed to work with either one to two independent and flexible washing levels
■ Tank Size : w525×d490×h570 mm (146L)
■ Washing up to 95°C - antibacterical thermal disinfection
■ Microprocessor programmable electronic control
■ Serial port RS232 for connection to external printer or PC
■ Alkaline powder detergent dispenser
■ Washing chamber and internal door in AISI 316L stainless steel
■ 2 independent washing levels through telescopic guides
■ 다양한 Optional Rack을 이용 실험실에서 사용되는 거의 모든 초자를 세척 가능합니다.
■ Electronic door lock system for user safety
■ Without trolleys
■ smeg
● Wash tank와 Door재질은 AISI 316L 스텐인레스 강
(내산성-크롬-니켈-몰리브데늄 합금강)
● 2단 세척구조
● 세척 프로그램 : 9개 (추가 6개프로그램 제공)
● 분말 알카리세제 사용 및 디스펜서 장착 (액체 알카리세제용 펌프 장착 가능)
● 액체 산성세제용 정량펌프 장착
● 증류수 세척 연결 가능
● Water Softner (자동경수연화 장치) 장착
● 세척 잔여시간, 진행과정 등 디지털 디스플레이 기능
● 안전장치 : Door Open시 정지기능, 수위조절기능과 히팅방지기능,
Error 메세지 Display등
| Cat. No |
Model |
Description |
| W07-78-020 |

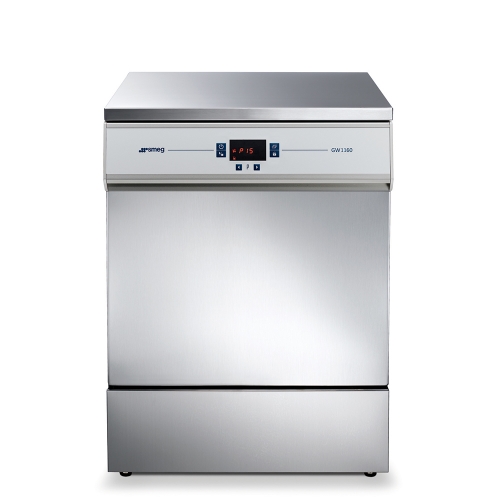

GW1160 |
Glassware Washer 146L |
| Cat. No. |
W07-78-020 |
| Model |
GW1160 |
| --- |
--- |
| Electronic Control |
Microprocessor |
| Standard Program |
9 |
| Customisable Program |
6 |
| Tank Internal Temp. |
From Room Temp. to 95℃ |
| Safety Lock |
Safety Thermostats, Door Interlock |
| Communication |
RS232 Serial Port for PC or Printer |
| Inlet |
Cold Water (Max. 6℃), Demineralized Water (<30us/cm) |
| Reciculation Pump |
400 L/min |
| Heating |
Electrical 2.3 kW Max. |
| Material |
Stainlss Steel (Tank : 316L, External : 304) |
| Outside Dimension |
w600×d605×h850mm |
| Weight |
74kg |
| Power |
230V, 60Hz |
| Cat. No |
Model |
Description |
| W07-78-601 |
CS1-1 |
Upper Level Basket for GW1160 |
| W07-78-603 |
CS2 |
Lower Level Basket for GW1160 |
| W07-78-605 |
LM20 |
Universal Rack for Narrow Neck glassware 24 Position |
| W07-78-607 |
KP200 |
Rack for Test Tube 2 Levels |
| W07-78-609 |
LPV40 |
Rack for Pipettes Max. 490mm 40 Pipettes |
| W07-78-611 |
LB4B |
Rack for Large Capacity Bottle |
| W07-78-613 |
LR4 |
Rack for Round Flask |
| W07-78-615 |
SB28 |
Rack for Beaker & Flask 250ml ~ 1000ml Placed on CS1 or CS2 |
| W07-78-617 |
PB50 |
Rack for 50ml Bottle Placed on CS2 |
