Norgen Herpes Simplex Virus 1 (HSV-1) TaqMan PCR Kit Dx

상품 한눈에 보기

HSV-1 검출용 CE-IVDD 인증 TaqMan PCR 키트. FAM 및 HEX 채널 기반 정확한 검출. 양성/음성/억제 반응 검증 가능. 마스터믹스 포함된 사용 준비형 포맷. -20°C 보관.

브랜드: Norgen
카테고리: PCR Kits
판매단위: pk

#Norgen #PCR Reagents #Electrophoresis

카탈로그

1개 옵션

회원가입 없이 바로 구매하세요

가입하지 않아도 비회원가로 구매하실 수 있습니다.

카탈로그 번호 · 상품 설명출고판매가담기

Norgen Herpes Simplex Virus 1 (HSV-1) TaqMan PCR Kit Dx판매 단위 pk ·

재고 확인 필요재고 확인 필요

531,000원VAT 포함 584,100원

재고문의·견적요청 옵션은 실시간 상담으로 납기를 확인해 드립니다 · 연구비 카드 결제 가능

Norgen · Norgen Herpes Simplex Virus 1 (HSV-1) TaqMan PCR Kit Dx

Norgen Herpes Simplex Virus 1 (HSV-1) TaqMan PCR Kit Dx

SKU: DxTM32600

Features and Benefits

Detection kit for the HSV-1
CE-IVDD marked in accordance with the European Commission Directive 98/79/EC
Research version available
Available in TaqMan format for analysis

Product Description

Herpes Simplex Virus 1 (HSV-1) is a member of the Herpesviridae family and has a large double-stranded DNA genome. HSVs are primarily transmitted by sexual contact, direct contact with lesions, or perinatally. Most HSV-positive cases exhibit lesions on the skin and mucous membranes of the mouth and genitals. Infections may be primary or recurrent, with over 90% of primary infections being asymptomatic. Primary infection with HSV-1 can cause gingivostomatitis, eczema herpeticum, keratoconjunctivitis, and encephalitis. Secondary infections typically manifest as skin lesions around the nose, mouth, and genital regions. The infection is contagious, especially during outbreaks.

Kit Format

HSV-1 TaqMan PCR Kit, 24 reactions

Ready-to-use format including Master Mix for target and PCR control
Specific Primer and Probe mix for HSV-1 detection
Positive and Negative Controls included to validate reagent integrity

Supporting Data

Figure 1. TaqMan PCR Positive Result
Both PCR signals above the baseline from FAM and HEX channels indicate successful amplification.

그래프 정보 (OCR 추출):
두 그래프 모두 “Amplification” 제목을 가지고 있으며,

상단: FAM channel (파란색), X축: Cycles, Y축: RFU
하단: HEX channel (초록색), X축: Cycles, Y축: RFU

Figure 2. TaqMan PCR Negative Result
No target DNA detected in FAM channel, amplification signal from HEX indicates successful PCR.

그래프 정보 (OCR 추출):
| 그래프 | 제목 | 채널 | X축 | Y축 |
|--------|------|--------|------|------|
| 상단 | Amplification | FAM channel | Cycles | RFU |
| 하단 | Amplification | HEX channel | Cycles | RFU |

Figure 3. TaqMan PCR Inhibition Result
No signal detected from either FAM or HEX channels. Suggests repeating sample preparation using the recommended DNA purification kit.

Storage Conditions

The HSV-1 TaqMan PCR Kit Dx is shipped on dry ice. Upon arrival, all components should be frozen at -20°C.
Avoid repeated thawing and freezing (>3 times) of the Master Mix and Positive Control. For intermittent use, aliquot and store frozen.

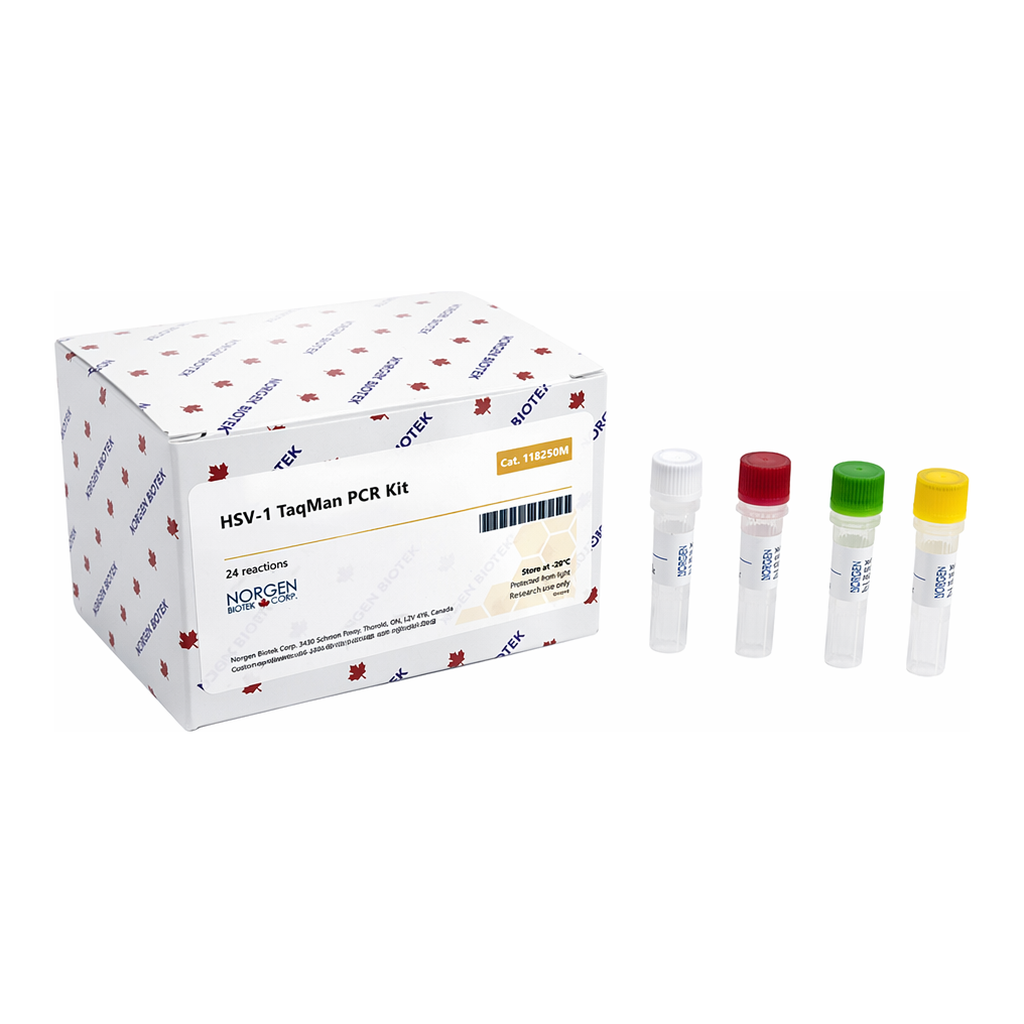

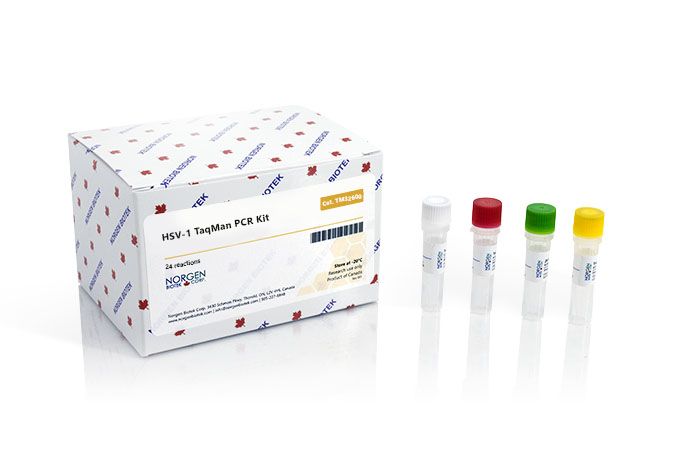

Kit Components

Component	Cat. DxTM32600 (24 rxns)
MDx TaqMan 2X PCR Master Mix Dx	550 µL
HSV-1 Primer & Probe Mix	2 × 70 µL
HSV-1 Positive Control Dx (200,000 copies/μL)	50 µL
Nuclease-Free Water	2 × 1.25 mL
Product Insert	1
