Absorption Semi-Micro Cell 세미 마이크로 표준 흡광 셀

■ Hellma

Operation Range
Mark	Material	Wavelength
---	---	---
OG	Optical Glass	360 ~ 2500 nm
---	---	---
OS	Special Optical Glass	320 ~ 2500 nm
---	---	---
QS	Quartz Suprasil	200 ~ 2500 nm
---	---	---
UV	HOQ 310H	260 ~ 2500 nm
---	---	---
QX	Quartz Suprasil ® 300	200 ~ 3500 nm
---	---	---

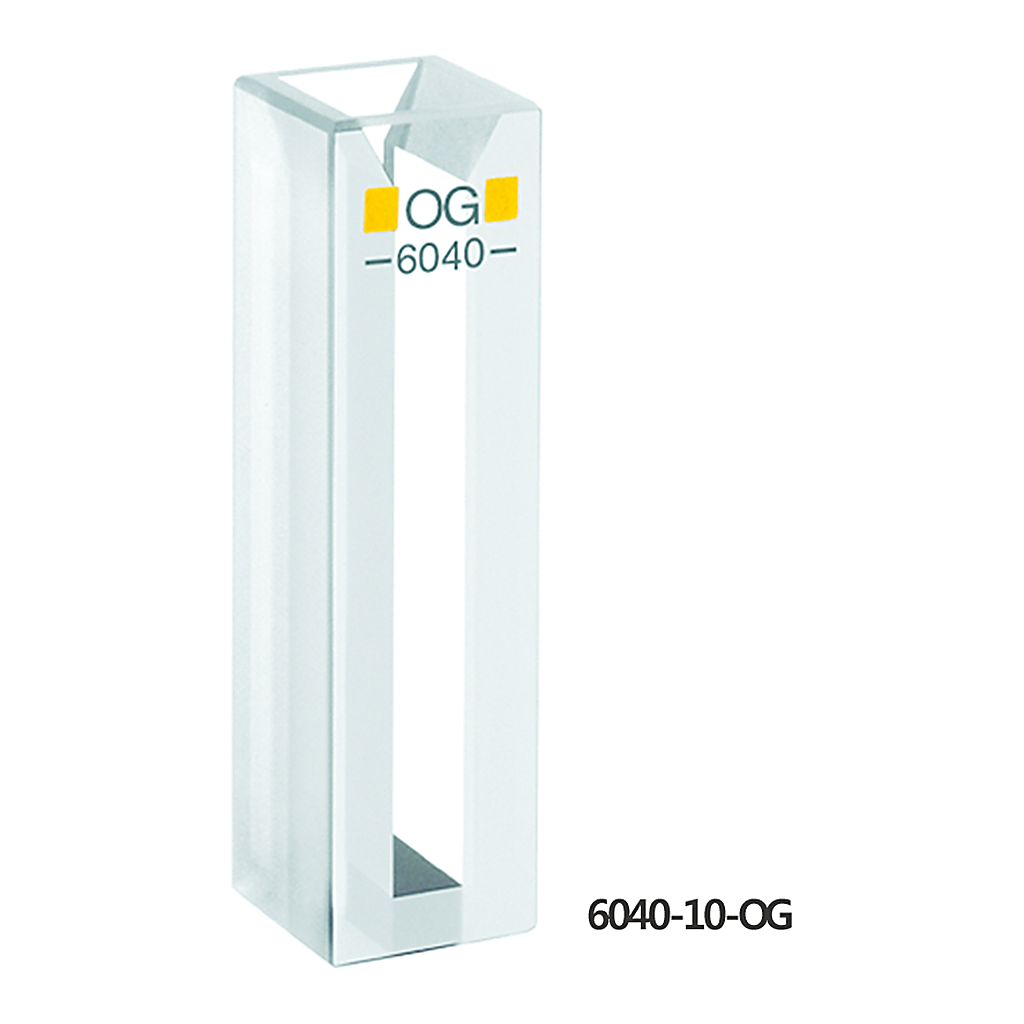

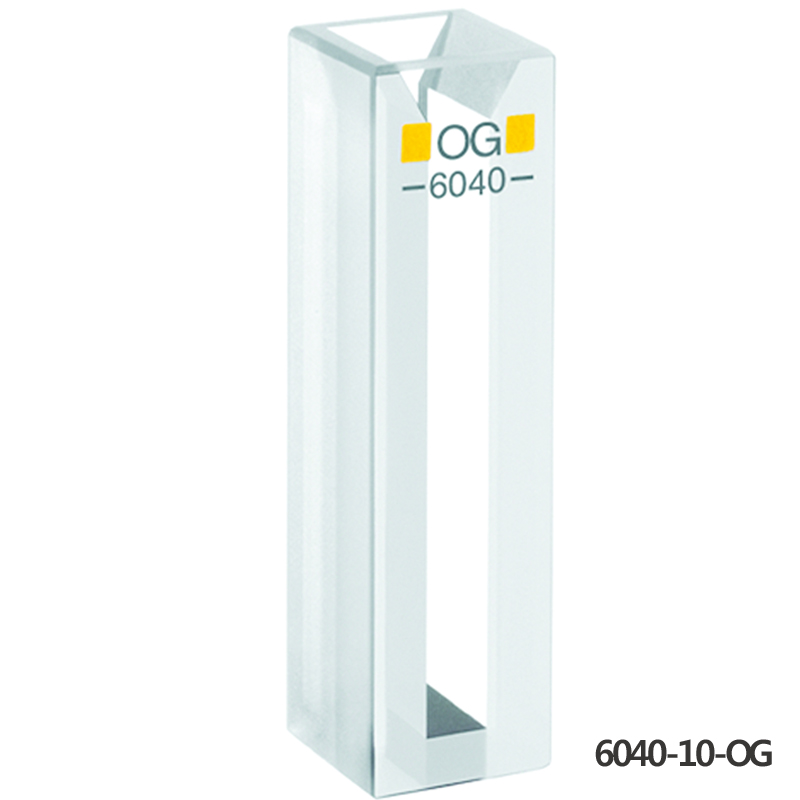

Type : 6040, Optical Glass

Cat. No.	Model	Light Path	용량
S18-69-210	6040-10-OG	10 mm	1.4 ml
---	---	---	---

● Without Lid, Base Thickness : 3.2 mm

Type : 6040 - UV, HOQ310H Glass

Cat. No.	Model	Light Path	용량
S18-69-232	6040-UV10	10 mm	1.4 ml
---	---	---	---

● Without Lid, Base Thickness : 3.2 mm

Type : 114-OS, Special Optical Glass

Cat. No.	Model	Light Path	용량
S18-69-251	114-10-OS	10 mm	1.4 ml
---	---	---	---

● Base Thickness : 3.2 mm

Type : 104-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-257	104-10-QS	10 mm	1.4 ml
---	---	---	---

● Base Thickness : 3.2 mm

Type : 114-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-269	114-10-QS	10 mm	1.4 ml
---	---	---	---

● Base Thickness : 3.2 mm

Type : 104B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-273	104B-10-QS	10 mm	1.4 ml
---	---	---	---

● Base Thickness : 3.2 mm

Type : 114B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-279	114B-10-QS	10 mm	1.4 ml
---	---	---	---

● Base Thickness : 3.2 mm

Type : 108-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-288	108-10-QS	10 mm	1.0 ml
---	---	---	---

● Base Thickness : 9 mm

Type : 108B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-295	108B-10-QS	10 mm	1.0 ml
---	---	---	---

● Base Thickness : 9 mm
