Absorption Cell, 2-Side Polished, Economy Type 경제형 흡광 셀, 2면 투명

■ YJ Optical

| | | | | | |

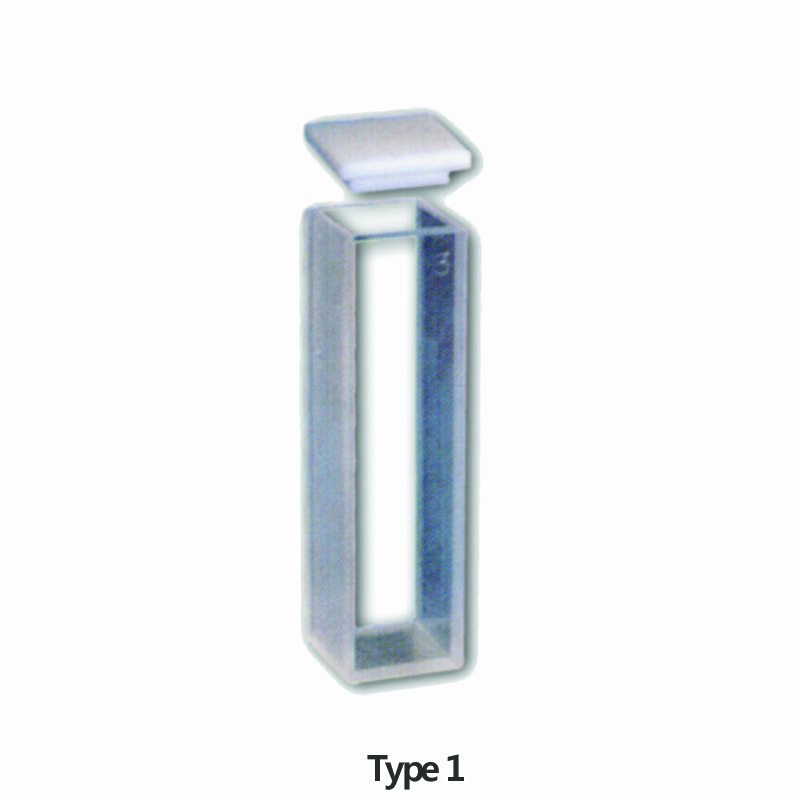

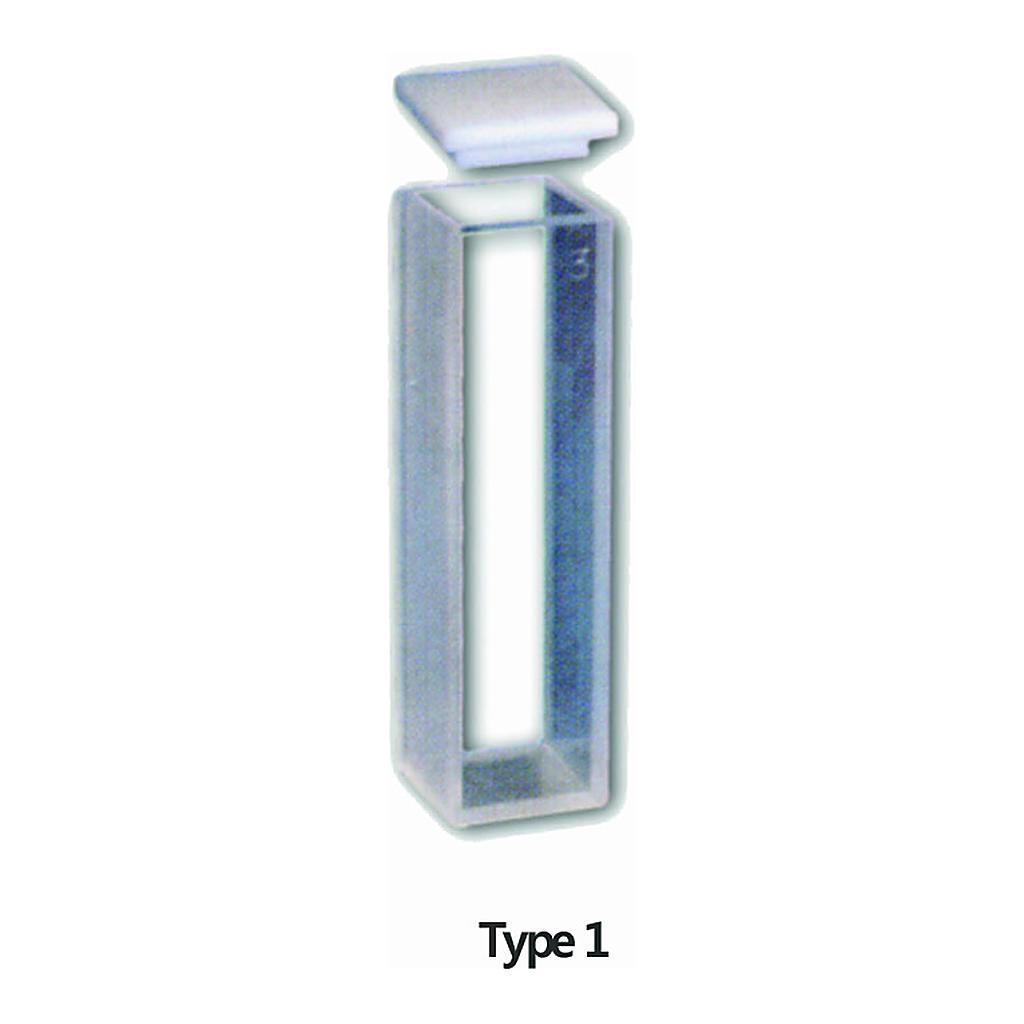

| --- | --- | --- | --- | --- | --- |Standard Cell with PTFE Cover, Type 1
| Light

Path | Volume | UV Quartz (1902500 nm) | | Optical Glass (3402500 nm) | |
| --- | --- | --- | --- | --- | --- |
| Cat. No. | Model | Cat. No. | Model |
| --- | --- | --- | --- | --- | --- |
| 1 mm | 0.4 ml | S18-203-002 | 1UV-1 | S18-203-802 | 1GL-1 |
| --- | --- | --- | --- | --- | --- |
| 2 mm | 0.7 ml | S18-203-004 | 1UV-2 | S18-203-804 | 1GL-2 |
| --- | --- | --- | --- | --- | --- |
| 5 mm | 1.7 ml | S18-203-006 | 1UV-5 | S18-203-806 | 1GL-5 |
| --- | --- | --- | --- | --- | --- |
| 10 mm | 3.5 ml | S18-203-008 | 1UV-10 | S18-203-808 | 1GL-10 |
| --- | --- | --- | --- | --- | --- |
| 20 mm | 7.0 ml | S18-203-010 | 1UV-20 | S18-203-810 | 1GL-20 |
| --- | --- | --- | --- | --- | --- |
| 40 mm | 14.0 ml | S18-203-014 | 1UV-40 | S18-203-814 | 1GL-40 |
| --- | --- | --- | --- | --- | --- |
| 50 mm | 17.5 ml | S18-203-016 | 1UV-50 | S18-203-816 | 1GL-50 |
| --- | --- | --- | --- | --- | --- |
| 100 mm | 35.0 ml | S18-203-018 | 1UV-100 | S18-203-818 | 1GL-100 |
| --- | --- | --- | --- | --- | --- |

● Inside Width : 10 mm
● Outside Dimension : w12.5×h45 mm, d(깊이) = Light Path + 2.5 mm

| | | | | | |
| --- | --- | --- | --- | --- | --- |Standard Cell with PTFE Cover, Type 21
| Light

Path | Volume | UV Quartz (1902500 nm) | | Optical Glass (3402500 nm) | |
| --- | --- | --- | --- | --- | --- |
| Cat. No. | Model | Cat. No. | Model |
| --- | --- | --- | --- | --- | --- |
| 1 mm | 0.4 ml | S18-203-020 | 21UV-1 | S18-203-820 | 21GL-1 |
| --- | --- | --- | --- | --- | --- |
| 2 mm | 0.7 ml | S18-203-022 | 21UV-2 | S18-203-822 | 21GL-2 |
| --- | --- | --- | --- | --- | --- |
| 5 mm | 1.7 ml | S18-203-024 | 21UV-5 | S18-203-824 | 21GL-5 |
| --- | --- | --- | --- | --- | --- |
| 10 mm | 3.5 ml | S18-203-026 | 21UV-10 | S18-203-826 | 21GL-10 |
| --- | --- | --- | --- | --- | --- |
| 20 mm | 7.0 ml | S18-203-027 | 21UV-20 | S18-203-827 | 21GL-20 |
| --- | --- | --- | --- | --- | --- |
| 40 mm | 14.0 ml | S18-203-028 | 21UV-40 | S18-203-828 | 21GL-40 |
| --- | --- | --- | --- | --- | --- |
| 50 mm | 17.0 ml | S18-203-030 | 21UV-50 | S18-203-830 | 21GL-50 |
| --- | --- | --- | --- | --- | --- |

● Inside Width : 10 mm
● Outside Dimension : w12.5×h49 mm, d(깊이) = Light Path + 2.5 mm

| | | | |
| --- | --- | --- | --- |Semi-Micro Cell
| Cat. No. | Model | Type | Description |
| --- | --- | --- | --- |
| S18-203-050 | 9UV-10 | 9 | Semi-Micro Cell with PTFE Cover |
| --- | --- | --- | --- |
| S18-203-062 | 9MUV-10 | 9M | Black Semi-Micro Cell with PTFE Cover |
| --- | --- | --- | --- |
| S18-203-070 | 29UV-10 | 29 | Semi-Micro Cell with PTFE Stopper |
| --- | --- | --- | --- |
| S18-203-082 | 29MUV-10 | 29M | Black Semi-Micro Cell with PTFE Stopper Cover |
| --- | --- | --- | --- |

● UV Quartz (190~2500 nm)
● Inside Width : 4 mm (9UV-10, 29UV-10) / 10 mm (9MUV-10, 29MUV-10)
● Outside Dimension : w12.5×h45 mm, d(깊이) = Light Path + 2.5 mm (9UV-10, 9MUV-10)
w12.5×h49 mm, d(깊이) = Light Path + 2.5 mm (29UV-10, 29MUV-10)
● Volume : 1.4 ml, Light Path : 10 mm

| | | | |
| --- | --- | --- | --- |Micro Cell
| Cat. No. | Model | Type | Description |
| --- | --- | --- | --- |
| S18-203-116 | 18UV-10 | 18 | Micro Cell with PTFE Cover |
| --- | --- | --- | --- |
| S18-203-128 | 18MUV-10 | 18M | Black Micro Cell with PTFE Cover |
| --- | --- | --- | --- |
| S18-203-140 | 30UV-10 | 30 | Micro Cell with PTFE Cove |
| --- | --- | --- | --- |
| S18-203-152 | 30MUV-10 | 30M | Black Micro Cell with PTFE Cover |
| --- | --- | --- | --- |

● UV Quartz (190~2500 nm)
● Inside Width : 2 mm
● Outside Dimension : w12.5×h45 mm, d(깊이) = Light Path + 2.5 mm (18UV-10, 18MUV-10)
w12.5×h49 mm, d(깊이) = Light Path + 2.5 mm (30UV-10, 30MUV-10)
● Volume : 0.7 ml, Light Path : 10 mm

| | | | |
| --- | --- | --- | --- |Rectangular Absorption meter Cell, Type 101
| Light

Path | Volume | UV Quartz (190~2500 nm) | |
| --- | --- | --- | --- |
| Cat. No. | Model |
| --- | --- | --- | --- |
| 2.5 mm | 2.2 ml | S18-203-214 | 101UV-2.5 |
| --- | --- | --- | --- |
| 5 mm | 4.4 ml | S18-203-216 | 101UV-5 |
| --- | --- | --- | --- |
| 10 mm | 8.8 ml | S18-203-218 | 101UV-10 |
| --- | --- | --- | --- |
| 20 mm | 17.5 ml | S18-203-220 | 101UV-20 |
| --- | --- | --- | --- |
| 40 mm | 35.0 ml | S18-203-222 | 101UV-40 |
| --- | --- | --- | --- |
| 50 mm | 43.8 ml | S18-203-224 | 101UV-50 |
| --- | --- | --- | --- |
| 100 mm | 87.5 ml | S18-203-226 | 101UV-100 |
| --- | --- | --- | --- |
| 200 mm | 175.0 ml | S18-203-228 | 101UV-200 |
| --- | --- | --- | --- |

● Inside Width : 2 mm
● Outside Dimension : w28×h40 mm, d(깊이) = Light Path + 4 mm

| | | | |
| --- | --- | --- | --- |Cylinderical Cell with PTFE Stopper, Type 32
| Light

Path | Volume | UV Quartz (190~2500 nm) | |
| --- | --- | --- | --- |
| Cat. No. | Model |
| --- | --- | --- | --- |
| 10 mm | 2.8 ml | S18-203-236 | 32UV-10 |
| --- | --- | --- | --- |
| 20 mm | 5.6 ml | S18-203-238 | 32UV-20 |
| --- | --- | --- | --- |
| 50 mm | 14.0 ml | S18-203-240 | 32UV-50 |
| --- | --- | --- | --- |
| 100 mm | 28.0 ml | S18-203-242 | 32UV-100 |
| --- | --- | --- | --- |

● Inside Dimension : Φ19 mm
● Outside Dimension : Φ22×h30 mm, d(깊이) = Light Path + 2.5 mm
