Absorption Micro Cell마이크로 흡광 셀

■ Hellma

Operation Range
Mark	Material	Wavelength
---	---	---
OG	Optical Glass	360 ~ 2500 nm
---	---	---
OS	Special Optical Glass	320 ~ 2500 nm
---	---	---
QS	Quartz Suprasil	200 ~ 2500 nm
---	---	---
UV	HOQ 310H	260 ~ 2500 nm
---	---	---
QX	Quartz Suprasil ® 300	200 ~ 3500 nm
---	---	---

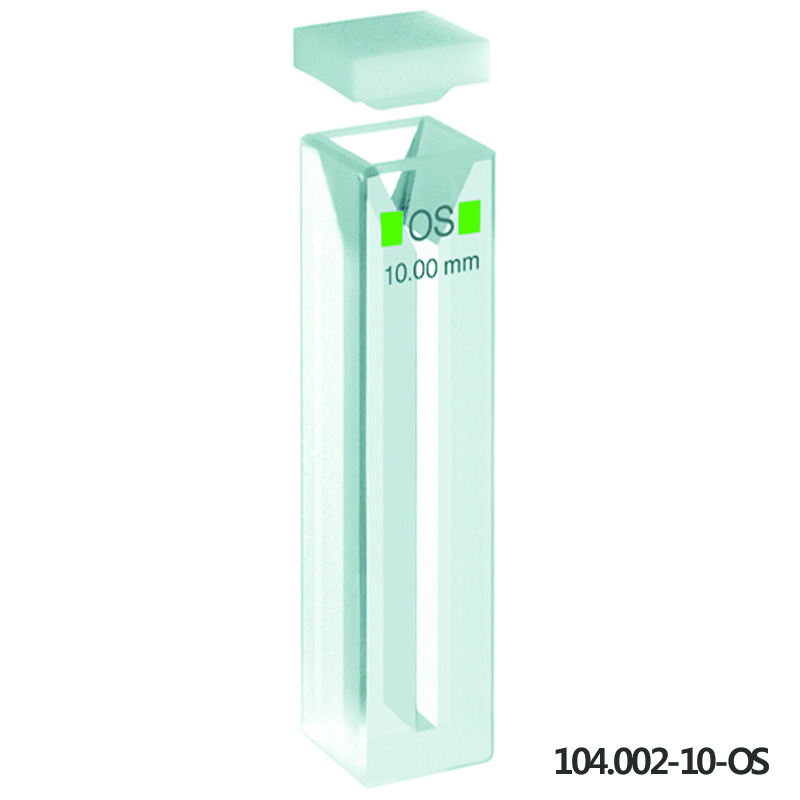

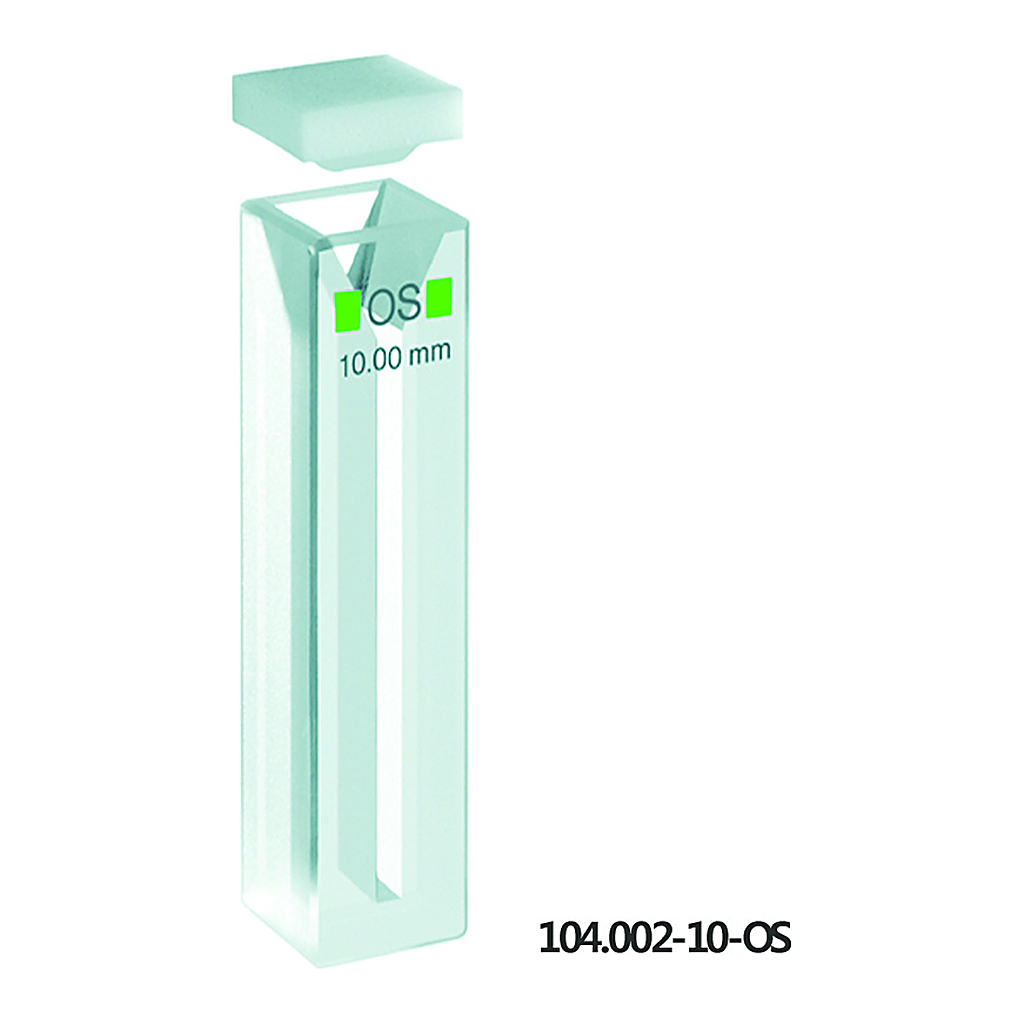

Type : 104.002-OS, Special Optical Glass

Cat. No.	Model	Light Path	용량
S18-69-311	104.002-10-OS	10 mm	700 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 104.002B-OS, Special Optical Glass

Cat. No.	Model	Light Path	용량
S18-69-322	104.002B-10-OS	10 mm	700 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 104.002-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-326	104.002-10-QS	10 mm	700 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 104.002B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-337	104.002B-10-QS	10 mm	700 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 115-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-340	115-10-QS	10 mm	400 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 115B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-347	115B-10-QS	10 mm	400 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 108.002-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-388	108.002-10-QS	10 mm	500 ul
---	---	---	---

● Base Thickness : 3.2 mm

Type : 108.002B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-390	108.002B-10-QS	10 mm	500 ul
---	---	---	---

● Base Thickness : 9 mm

Type : 105-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-392	105-10-QS	10 mm	300 ul
---	---	---	---

● Height : 25 mm, Base Thickness : 1.5 mm

Type : 105B-QS, Quartz

Cat. No.	Model	Light Path	용량
S18-69-394	105B-10-QS	10 mm	300 ul
---	---	---	---

● Height : 25 mm, Base Thickness : 1.5 mm
