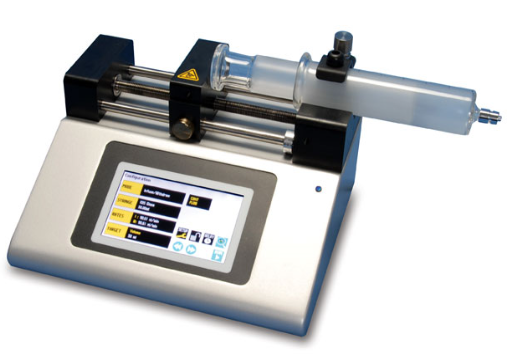

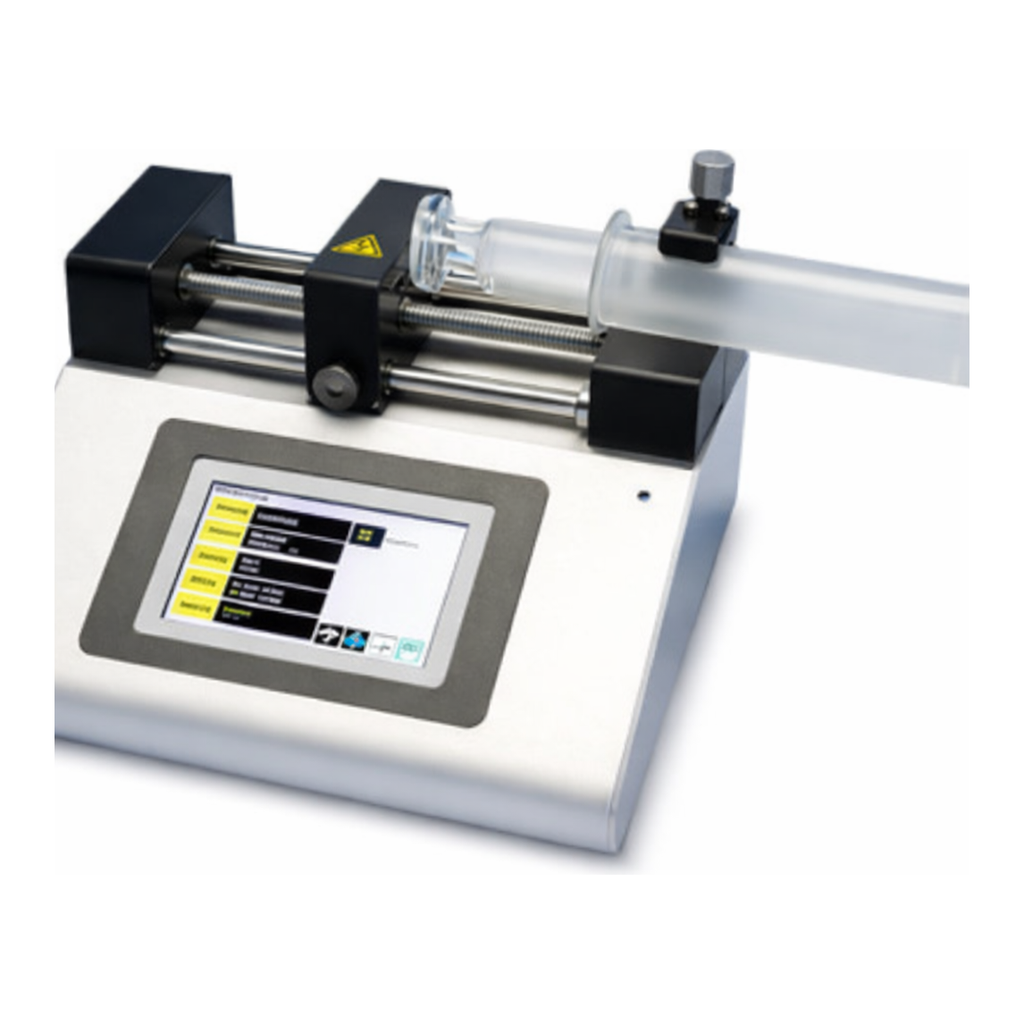

LEGATO 100 series-정밀주사기펌프
LEGATO 100 series
[Syringe pumpPump]
정밀주사기펌프
제품 설명 [KEY FEATURES]
- Max : 1 채널
- Syringe : 0.5uL- 60mL
- Infusion
- 컬러 터치스크린
FEATURES
- Max : 1 채널
- Syringe : 0.5uL - 60mL
- Infusion
- 컬러 터치스크린
- 13kg linear force
SPECIFICATIONS / ODERING INFORMATIONS
| Accuracy: | ± 0.5% |
| Reproducibility | ± 0.05% |
| Syringes (Min/Max) | 0.5 ul to 60ml |
| Flow Rate | Minimum (0.5 ul syringe): 1.28 pl/min |
| Maximum (10ml syringe): 25.99 ml/min | |
| Maximum (60ml syringe): 88.28 ml/min | |
| Display | 4.3 WQVGA TFT Color Display with Touchpad |
| Non-Volatile Memory | Stores all Settings |
| Connectors | RS485 - IEEE-1394 6 pos |
| USB - Type B | |
| I/O & TTL - 15 pin D-Sub Connector | |
| Linear Force (Max) | 13.6 kg (30 lbs) @ 100% Force Selection |
| Drive Motor | 0.9 Stepper Motor |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Number of Microsteps | 15,360 |
| per one rev.of Lead Screw | |
| Step Revolution | 0.069 um/step |
| Step Rate - Minimum | 27.5 sec/ustep |
| Step Rate - Maximum | 26 usec/ustep |
| Pusher Travel Rate - Minimum | 0.15 um/min |
| Pusher Travel Rate - Maximum | 159 mm/min |
| Power | 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |
| Dimensions | 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) |
| Weight | 2.66 kg (5.9 lbs) |
| Operating Temperature | 4 degree C to 40 degree C (40 degree F to 104 degree F) |
| Storage Temperature | -10 degree C to 70 degree C (14 degree F to 158 degree F) |
| Humidity | 20% to 80% RH non condensing |
| Mode of Operation | Continuous |
| Classification | Class 1 |
| Pollution Degree | 1 |
| Installation Category | 11 |
| Regulatory Certification | CE, UL, CSA, CB Scheme, EU RoHS |
APPLICATIONS
Perfusion of animal tissue slice
Flow Injection
In-vitro system
Re-circulating pump
Filling of bottles
Plastics production: Metering of additives
Waste water treatment: Metering of flocculants
Cooling circuits: Metering of corrosion inhibitors and biocides
