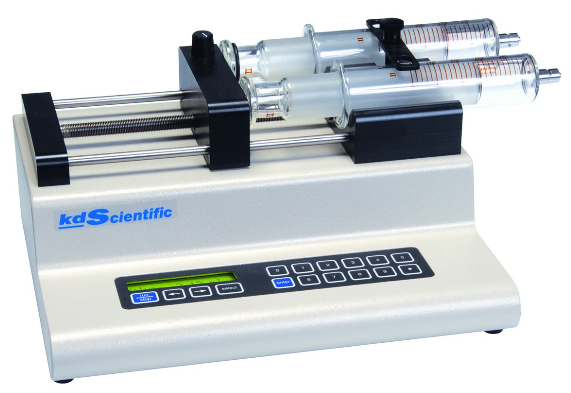

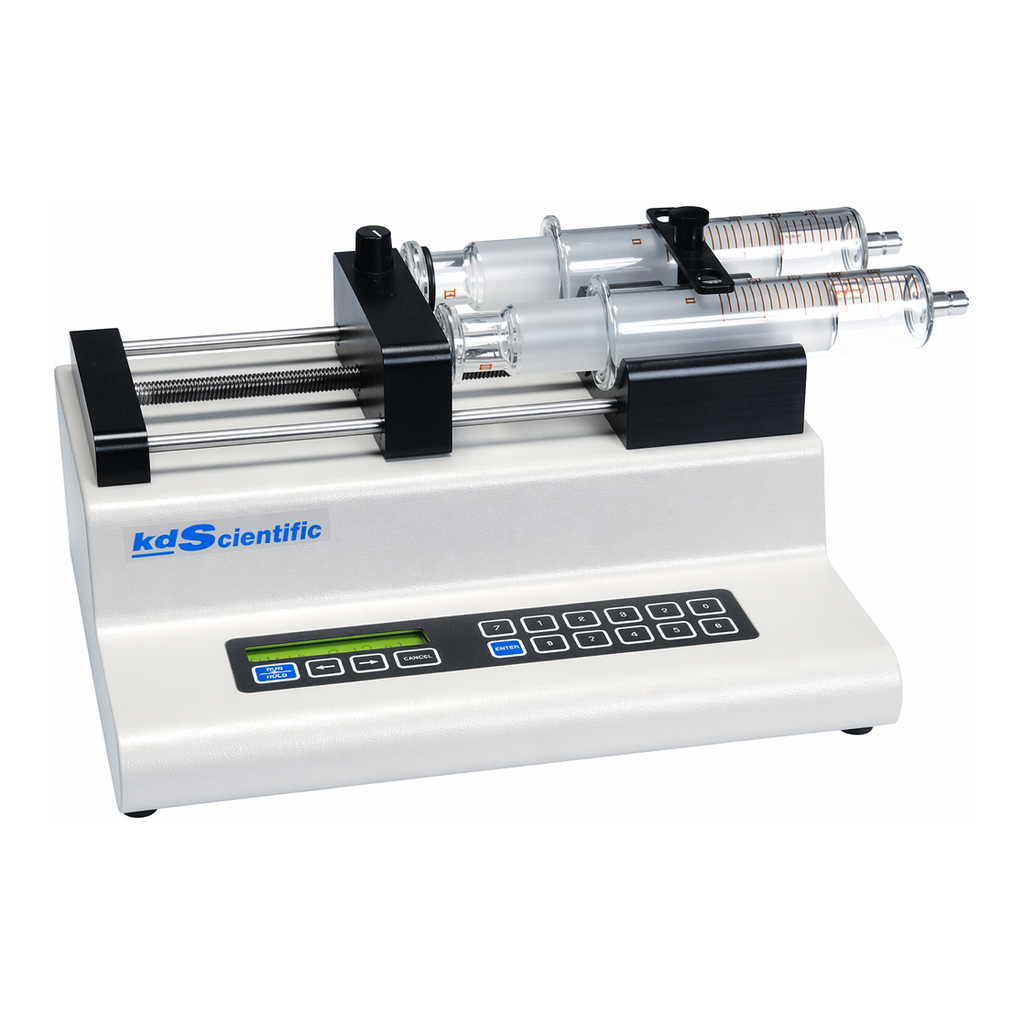

KDS200 series[고급형]-주입/흡입형 정밀주사기펌프

KDS200 series[고급형]

[Laboratory Syringe Pump]

주입/흡입형 정밀주사기펌프

---

제품 설명 [KEY FEATURES]

• Max : 2-10 채널
• Syringe : 10uL- 140mL
• Infusion/Withdraw

---

FEATURES

• Max : 2-10 채널
• Syringe : 10uL - 140mL
• Infusion/Withdraw

SPECIFICATIONS / ODERING INFORMATIONS

	KDS-210	KDS-230	KDS-260
Pump Type	Infusion/Withdrawal	Infusion/Withdrawal	Push/Pull
Max. No. of Syringes	Two	Ten	Two + Two
Syringe Size	10 µL to 140 mL	10 µL-10 mL (10 syr.)	10 µL to 60 mL
		20 - 60 mL (6 syr.)
		100 -140 mL (4 syr.)
Linear Force	40 lb (18 kg) min.	40 lb (18 kg)	40 lb (18 kg) min.
Advance Per Microstep	0.165 micron	0.165 micron	0.165 micron
	(1/16 step)	(1/16 step)	(1/16 step)
Max. Step Rate(1/2 step)	1600 steps/sec	1600 steps/sec	1600 steps/sec
Min. Step Rate	1 step / 100 sec.	1 step / 100 sec.	1 step / 100 sec.
Accuracy	± < 1%	± < 1%	± < 1%
Reproducibility	± 0.1%	± 0.1%	± 0. 1%
Dimensions	28 x 23 x 14 cm	28 x 23 x 14 cm	28 x 23 x 14 cm
Weight	9 lb (4 kg)	9 lb (4 kg)	9 lb (4 kg)
Options	Audible Alarm	Audible Alarm	Audible Alarm

**APPLICATIONS**

• Perfusion of animal tissue slice

• Flow Injection

• In-vitro system

• Re-circulating pump

• Filling of bottles

• Plastics production: Metering of additives

• Waste water treatment: Metering of flocculants

• Cooling circuits: Metering of corrosion inhibitors and biocides
