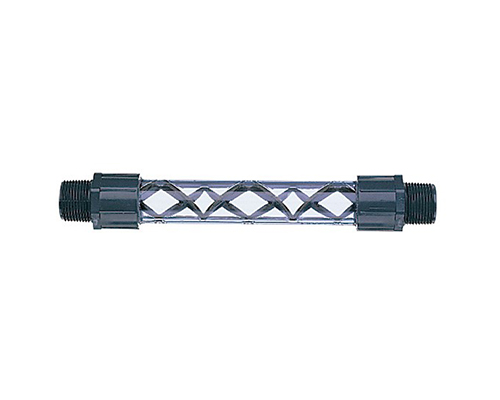

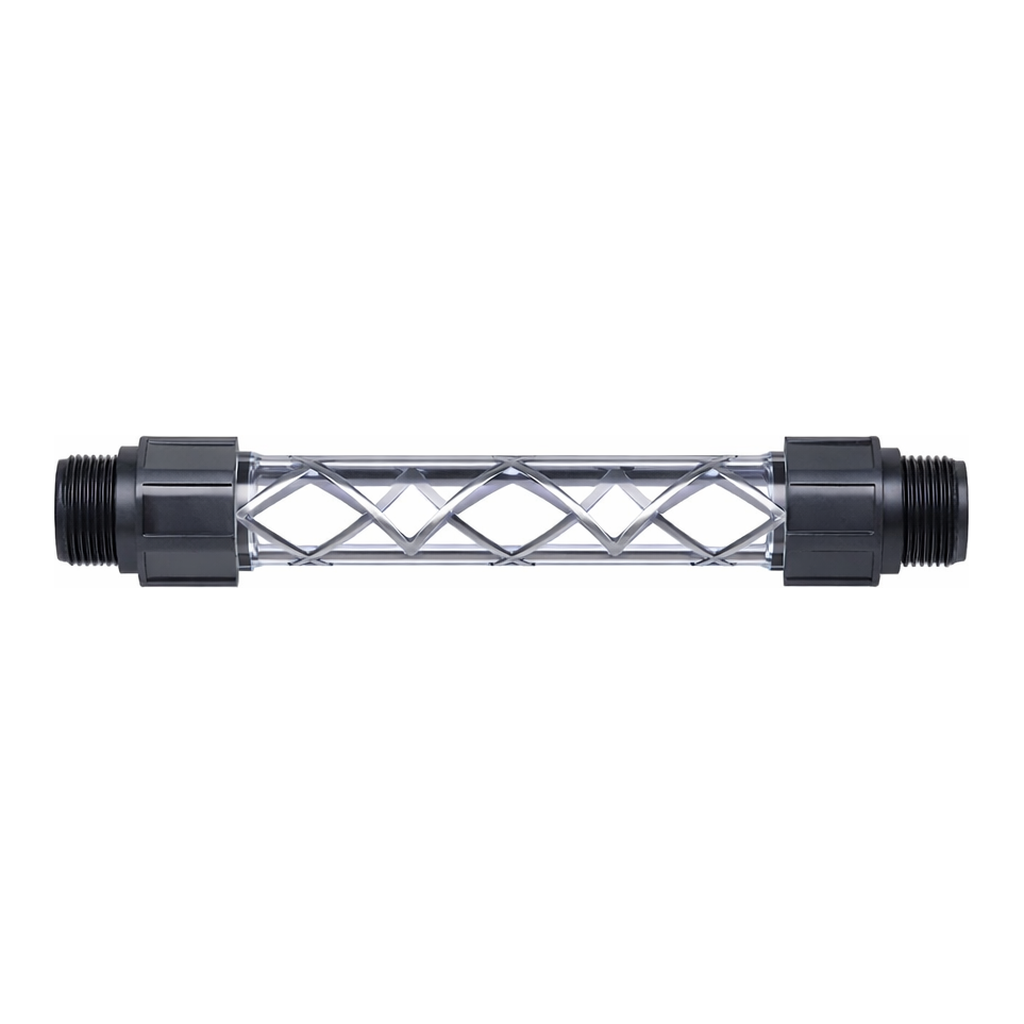

Koflo Clear PVC Schedule 40 Pipe In-Line Static Mixers
주요특징
- Mix fluids as you pump them through a pipe line
- nstall these mixers directly into your process line to achieve a 100% mixed output—mixing elements are welded inside the pipe. All mixers have threaded ends. Choose PVC, 316 stainless steel, PVDF, or PFA. The clear PVC mixers are ideal for a visual check of your mixing processes. Models with removable elements are available on request—call our Application Specialists for details.
| Koflo Clear PVC Schedule 40 Pipe In-Line Static Mixers KOFLO Pipe Mixers Mix fluids as you pump them through a pipe line Install these mixers directly into your process line to achieve a 100% mixed output—mixing elements are welded inside the pipe. All mixers have threaded ends. Choose PVC, 316 stainless steel, PVDF, or PFA. The clear PVC mixers are ideal for a visual check of your mixing processes. Models with removable elements are available on request—contact your local representative for details. |
 |
| NPT(M) | Pipe ID, in. (mm) | No. of elements | Mixer length, in. (mm) | Catalog number | Price/ pk of 10 |
| Clear PVC schedule 40 pipe mixers | |||||
| 3⁄8" | 0.473 (12) | 6 | 61⁄2 (165) | GY-04669-85 | |
| 12 | 11 (279) | GY-04669-87 | |||
| 1⁄2" | 0.602 (15.3) | 6 | 7 (178) | GY-04669-89 | |
| 12 | 12 (305) | GY-04669-91 | |||
| 3⁄4" | 0.804 (20.4) | 6 | 9 (229) | GY-04669-92 | |
| 12 | 15 (381) | GY-04669-93 | |||
| 1" | 1.029 (26.1) | 6 | 11 (279) | GY-04669-94 | |
| 12 | 18 (457) | GY-04669-95 | |||
| 11⁄2" | 1.590 (40.4) | 6 | 15 (381) | GY-04669-96 | |
| 12 | 28 (711) | GY-04669-97 | |||
| 2" | 2.047 (52) | 6 | 19 (483) | GY-04669-98 | |
| 12 | 35 (889) | GY-04669-99 |
