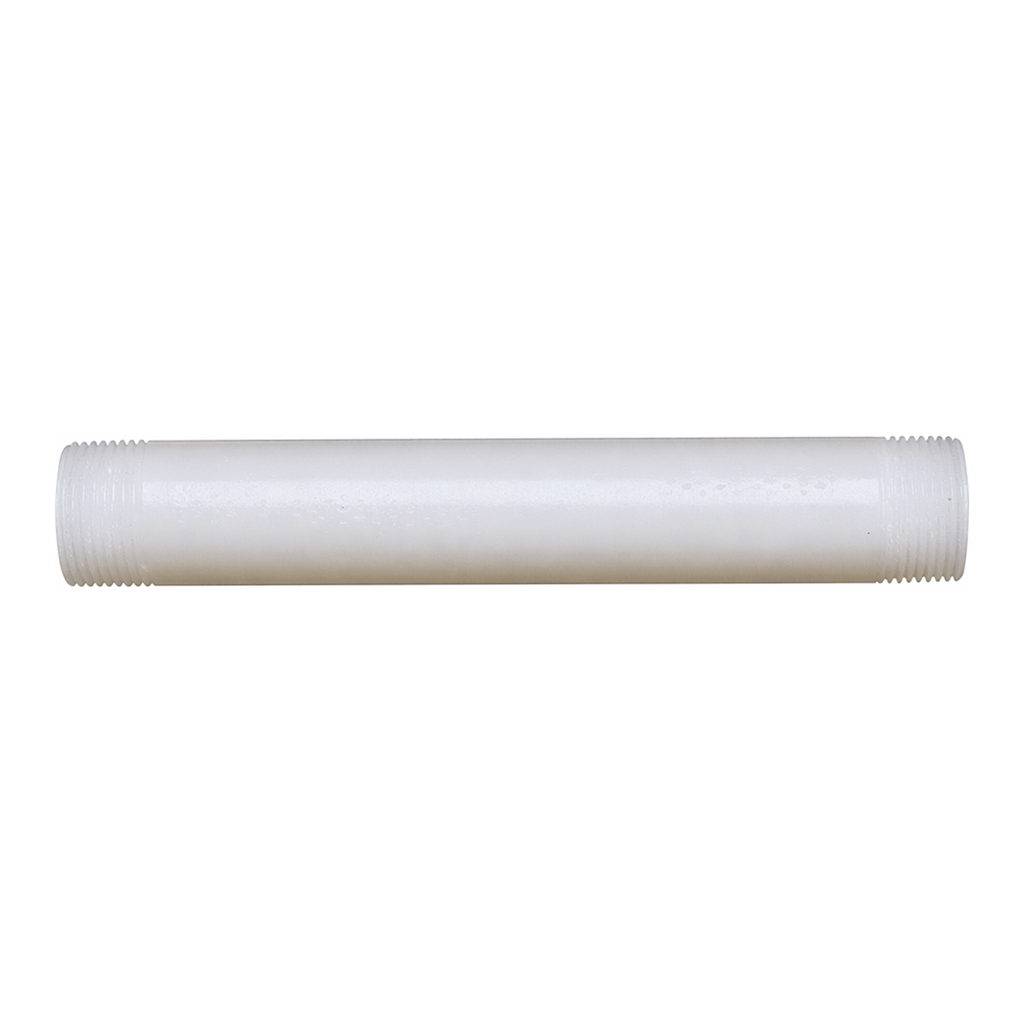

Koflo Standard PVC Schedule 80 Pipe In-Line Static Mixers
주요특징
- Mix fluids as you pump them through a pipe line
- Install these mixers directly into your process line to achieve a 100% mixed output—mixing elements are welded inside the pipe. All mixers have threaded ends. Choose PVC, 316 stainless steel, PVDF, or PFA. The clear PVC mixers are ideal for a visual check of your mixing processes. Models with removable elements are available on request—call our Application Specialists for details.

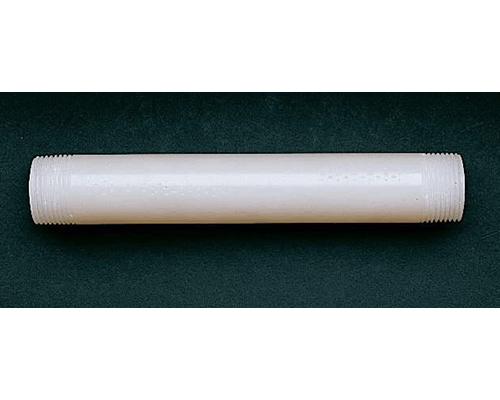

Koflo Clear PVC Schedule 80 Pipe In-Line Static Mixers
| KOFLO Pipe Mixers Mix fluids as you pump them through a pipe line Install these mixers directly into your process line to achieve a 100% mixed output—mixing elements are welded inside the pipe. All mixers have threaded ends. Choose PVC, 316 stainless steel, PVDF, or PFA. The clear PVC mixers are ideal for a visual check of your mixing processes. Models with removable elements are available on request—contact your local representative for details. |
 |
| NPT(M) | Pipe ID, in. (mm) | No. of elements | Mixer length, in. (mm) | Catalog number | Price/ pk of 10 |
| Standard PVC schedule 80 pipe mixers | |||||
| 1⁄2" | 0.62 (15.7) | 6 | 5 (127) | GY-04669-00 | |
| 12 | 10 (254) | GY-04669-06 | |||
| 3⁄4" | 0.742 (18.8) | 6 | 7 (178) | GY-04669-02 | |
| 12 | 14 (356) | GY-04669-08 | |||
| " | 0.957 (243) | 6 | 10 (254) | GY-04669-04 | |
| 12 | 19 (483) | GY-04669-10 | |||
| 11⁄2" | 1.50 (38.1) | 6 | 15 (381) | GY-04669-78 | |
| 12 | 26 (660) | GY-04669-79 | |||
| 2" | 1.939 (49.2) | 6 | 18 (457) | GY-04669-83 | |
| 12 | 33 (838) | GY-04669-81 |
