Twist-Lock Conductivity Cells

주요특징

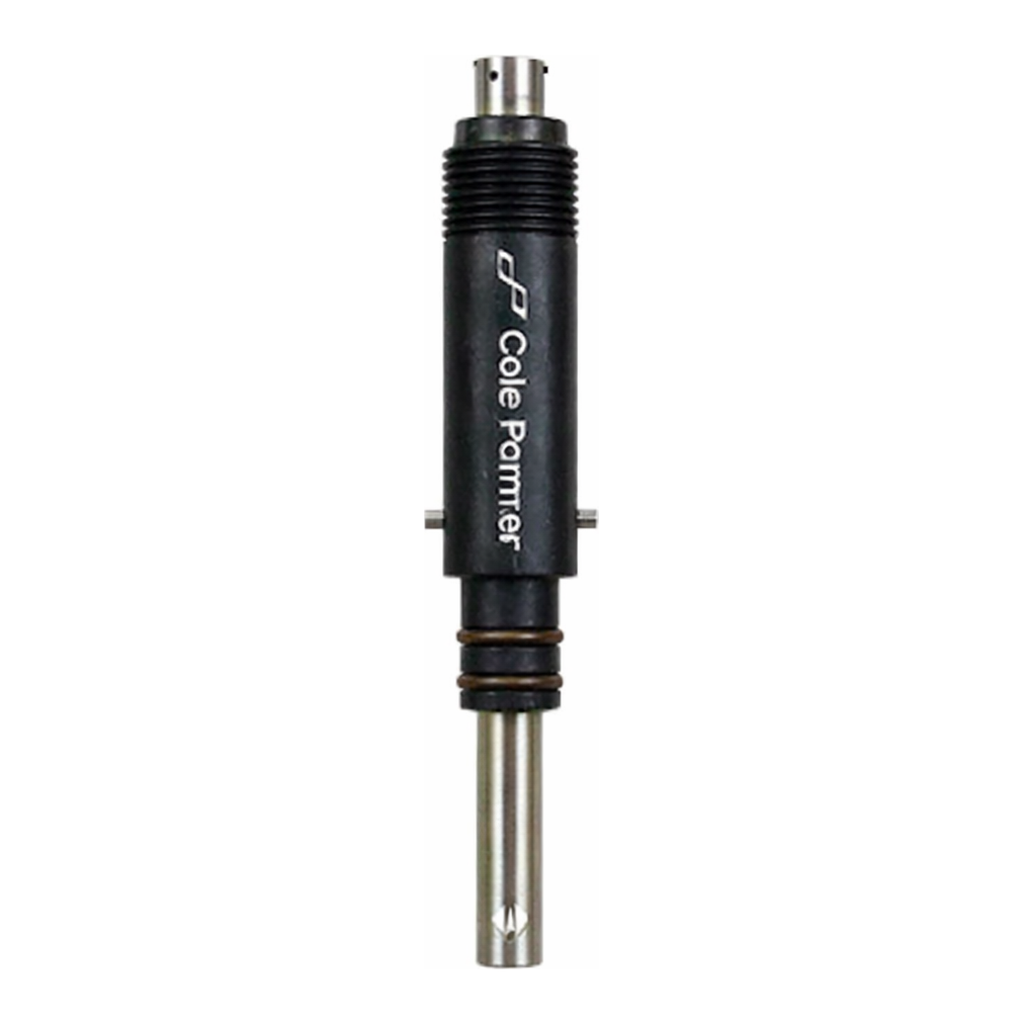

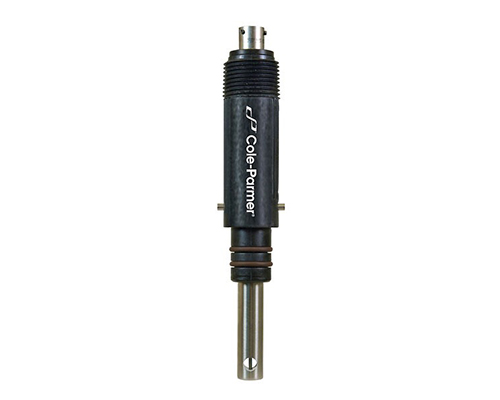

• Cole-Parmer Conductivity Cell, twist-lock, K=0.01
• Ideal for by-pass streams, sample systems, and flow through applications
• Ten-foot cables with 4-pin Military detachable connector
• Built-in 100 Pt RTD
• Cell constant, K=0.01

Cole-Parmer® Twist-Lock Conductivity Cells Get secure, leakproof readings * No-leak design features two external Viton® O-rings * Locking pins keep cell in position cleaning * Rugged design features 12-mm sensor and1" NPT(M) to threads *Specifications * Housing material : Ryton PPS with Viton O-rings Sensor material : 316 stainless steel and PEEK Cell type : in-line, submersible Cell length : 6" (15.2 cm) Cable : 10 ft (3 m) with 4-pin military detachable connector Fitting : 1" NPT(M) Temperature range : 23 to 275°F(–5 to 135°C) Maximum pressure : 150 psig

GY-19500-15 Twist-Lock cable`4-pin detachableconnections on one end and hanked on oppositeend, 20-ft (6-m) lead wire

GY-19500-17 Twist-Lock adapter,1" NPT(M) process connection

GY-05993-74 Adapter collar for pipe tee

GY-05994-61 Pipe tee, 1" NPT(F)
