Conductivity/Resistivity 1/8-DIN Controllers
주요특징
- Cole-Parmer CON 300 Conductivity/Resistivity/Temperature 1/8-DIN Controller
- Economical options with programmable on/off relays, or isolated 4 to 20 mA output
- Backlight LCD for clear measurement display
- Conductivity range: 0.00 to 19.99 mS with +/1 0.5% accuracy
- Universal power supply input from 100 to 240VAC
- Easy-to-install 1/8-DIN compact plastic casing
- Programmable on/off relays for high/low control to activate an alarm, a pump, or another device

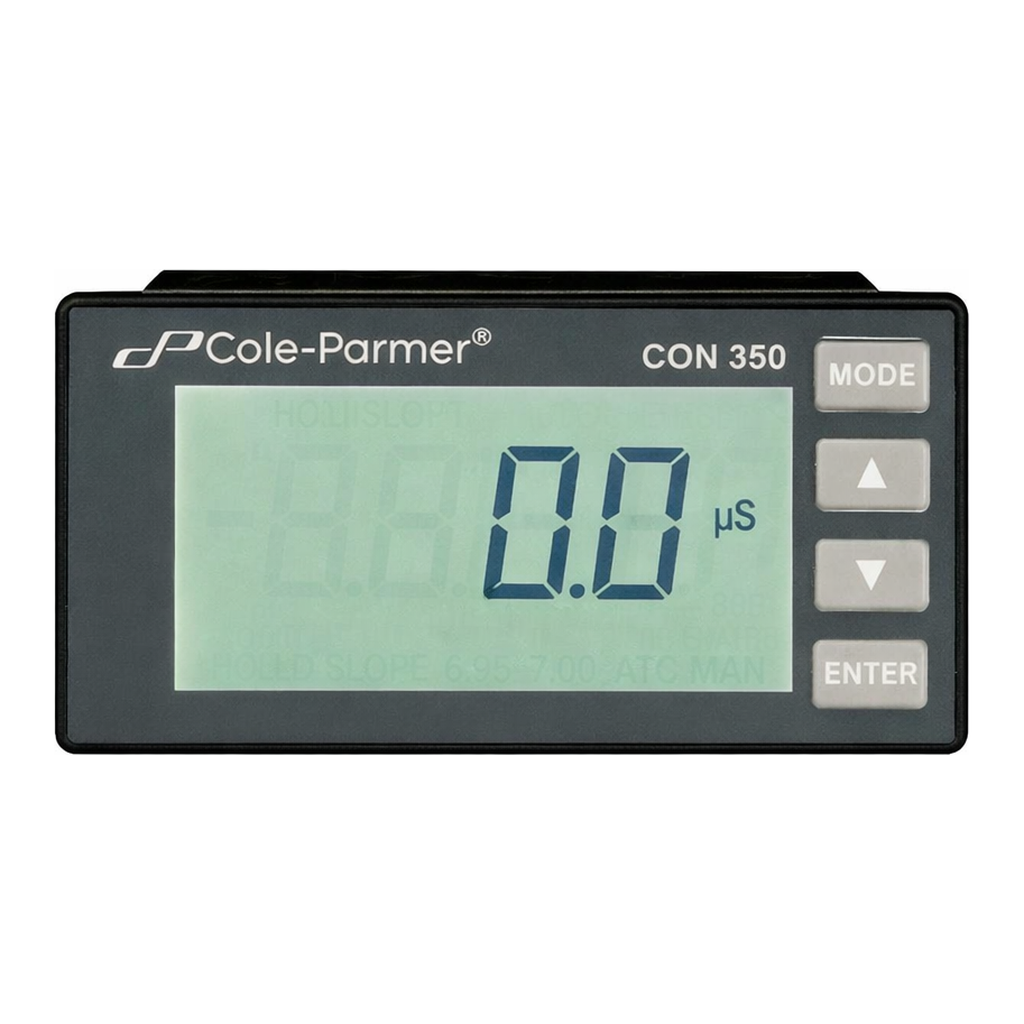

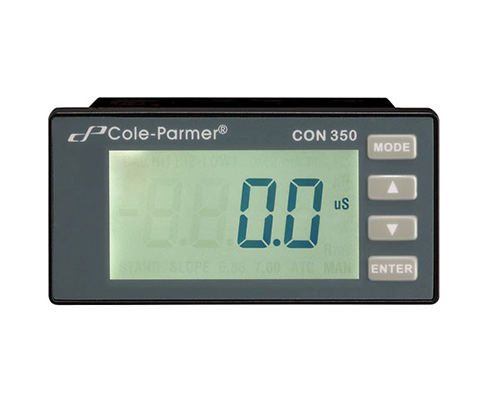

Cole-Parmer® Conductivity/Resistivity 1⁄8-DIN Controllers
Don`t struggle to readmeasurements-backlit LCDfor clear display
* Get more measurement accuracy with automatic temperaturecompensation * Select either programmable on/off relays or isolated and reversible4-to-20 mA output * Easy installation with universal power input from 100 to 240 VAC COND 300 controller has two sets of programmable on/off relaysfor high/low control to activate an alarm, a pump, or anotherdevice. COND 350 controller has an isolated and reversible 4-to-20 mAoutput for conductivity or resistivity that allows it to be used as aproportional output. |
Description | COND 300 | ||
Catalog numbe | GY-05802-02 | ||
Range | Conductivity | 0.000 µS to 19.99 mS | |
Resistivity | 0.5 to 19.99 MΩ | ||
Temperature | 14 to 248°F (–10 to 120˚C) | ||
Resolution | Conductivity | 0.001 to 0.1 mS | |
Resistivity | 0.01 to 0.1 MΩ | ||
Temperature | 0.1°C | ||
Accuracy | Conductivity | ±0.5% ±1 digit | |
Resistivity | ±0.5% ±1 digit | ||
Temperature | ±0.3°C | ||
Temperature compensation | Automatic 10 KΩ at 25°C | ||
Display | Backlit LCD | ||
Output | Relay | Two SPDT relays | |
Current | |||
Dimensions (W x H x D) | 33⁄4" x 17⁄8" x 41⁄4" (96 x 48 x 110 mm) | ||
Power | 100 to 240 VAC, 50/60 Hz | ||
Price |
