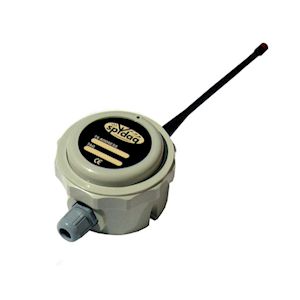

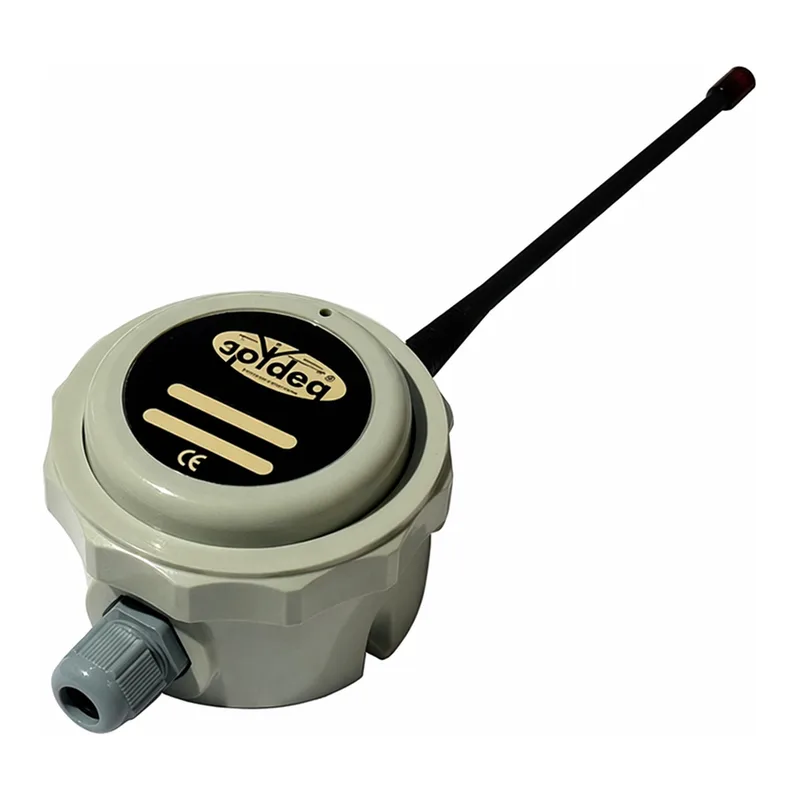

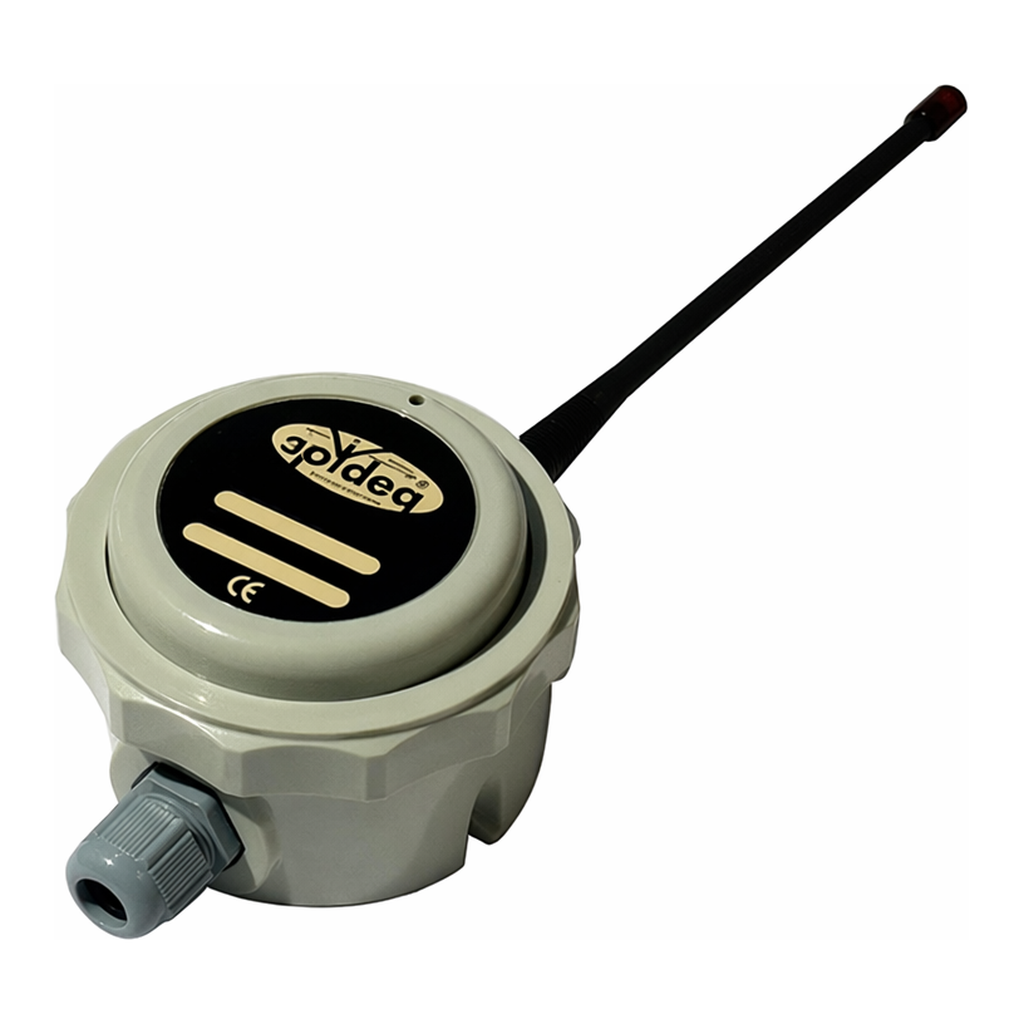

SPYDAQ-1006-U Wireless Universal Input Sensor
Wireless sensor with an internal temperature sensor to measure ambient temperature and a universal input that can be configured for any of the following inputs:
Pt 100
Thermocouple Types J, K, T, R, S
4-20 mA - Scaled in engineering units
Voltage
Contact Closure
The enclosure is IP65 rated and an IP65 rated gland is included. The transmitter is battery powered for up to six years.
Contact us today for more information or if you would like a quotation on +44 1684 299399.
Specification
| Power | Internal Lithium Primary cell. 3.7V AA Size |
| Battery Life | 6 yrs life minimum @ 10 min transmission rate |
| Universal Input Types | Pt100, Thermocouple (Types J,K,R,S & T), 4/20mA, 0-10VDC and switch closure |
| Ambient Temperature | -30°C to +75°C (-22°F to +131°F). This is also the measuring range for the internal temperature sensor |
| Universal Input Measuring Ranges | Thermocouple Type J: -180°C to +850°C K: -160°C to +1200°C R: +100°C to +1760°C S: +100°C to +1760°C T: -200°C to +400°C Pt100 Pt100 EN60571: -200°C to +550°C Pt100 JISC: -100°C to +450°C Current 4/20mA Voltage 0-10VDC |
| Accuracy | Internal Temperature: ±0.5°C Thermocouple Type (not including sensor errors) J: ±1.35°C K: ±1.7°C R: ±4.9°C S: ±3.15°C T: ±0.9°C Pt100 Pt100 EN60571: ±0.2°C ±0.1% of reading Pt100 JISC: ±0.2°C ±0.1% of reading Current 4/20mA: ±5uA ±0.1% of reading Voltage 0-10VDC: ±10mV ±0.1% of reading |
| Transmission Rate | Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended) |
| Transmit Power | 10mW |
| Transmission Range | Typically 400m line of sight. |
| Transmission Frequency | 433MHz |
| Outdoor Use | Yes - IP65 Rated |
| Material | ABS |
| Dimensions | Enclosure: 180mm (diameter) x 60mm (Deep). Antenna: 172mm |
| Warranty | 3 Years |
