SPYDAQ-1004-P Wireless Immersion Temperature Sensor
SPYDAQ-1004-P Wireless Immersion Temperature Sensor

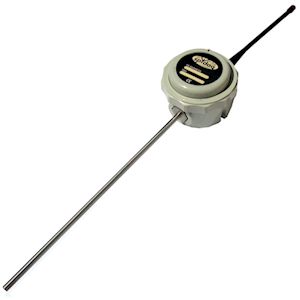

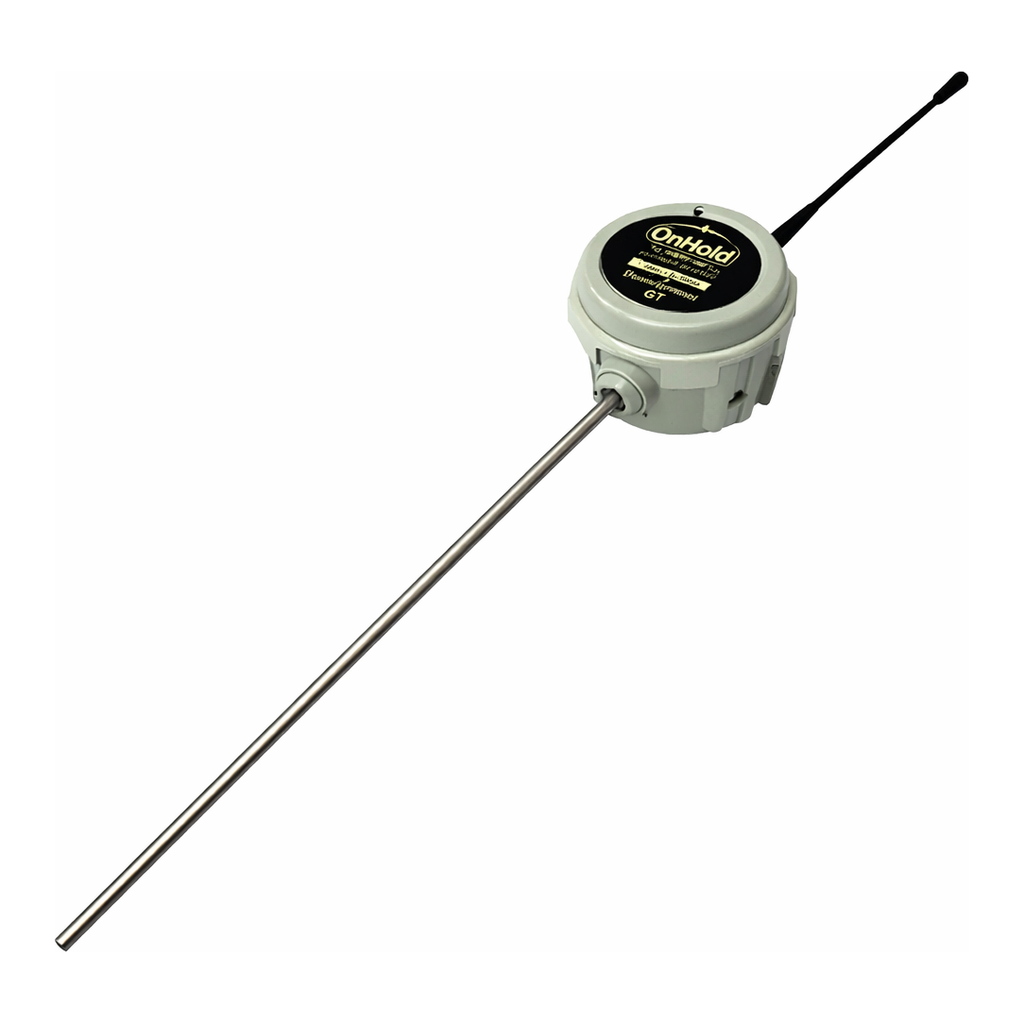

Wireless temperature sensor in a rugged, industrial enclosure with 250mm x 6mm immersion sensor. This transmitter is also supplied with 1/4" BSP brass compression gland. The enclosure is IP65 rated and the transmitter is battery powered for up to six years.
Specification
| Power | Internal Lithium Primary cell. 3.7V AA Size |
| Battery Life | 6 yrs life minimum @ 10 min transmission rate |
| Measuring Range | -30°C to +75°C (-22°F to +167°F) for the internal temperature -40°C to +200°C (-40°F to +392°F) for the immersion sensor |
| Accuracy | ±0.5°C from 0°C to +50°C. ±1°C outside of this range for the internal sensor ±0.3°C ±0.35°% of reading for the immersion sensor |
| Transmission Rate | Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended) |
| Transmit Power | 10mW |
| Transmission Range | Typically 400m line of sight. |
| Transmission Frequency | 433MHz |
| Outdoor Use | Yes - IP65 Rated |
| Material | ABS |
| Dimensions | Enclosure: 108mm Diameter x 60mm Deep. Immersion Sensor: 250mm Long x 6mm Diameter supplied with 1/4"BSP brass compression gland Antenna: 172mm Long |
| Warranty | 3 Years |
