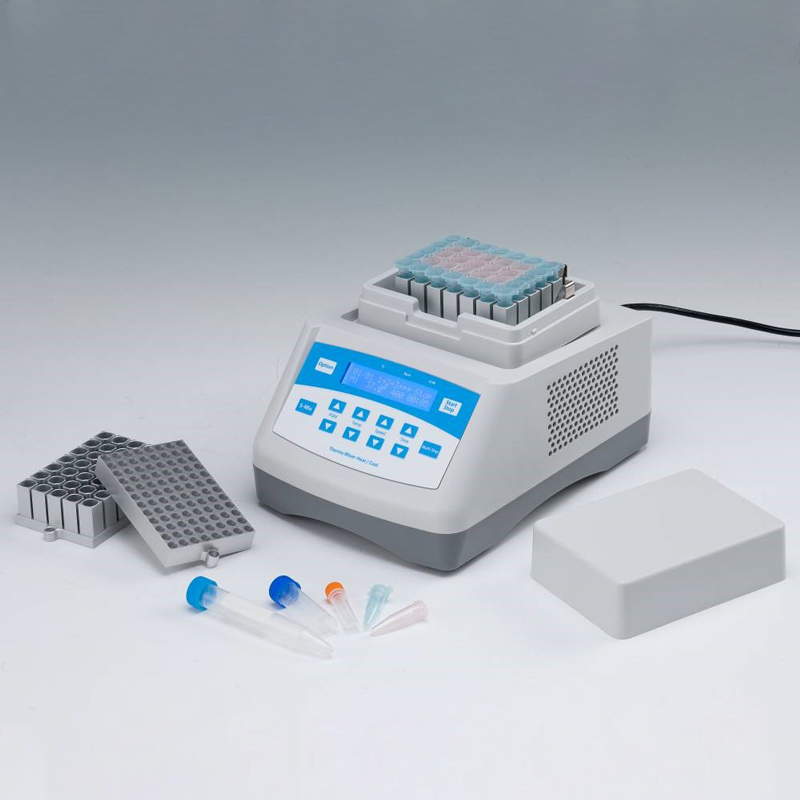

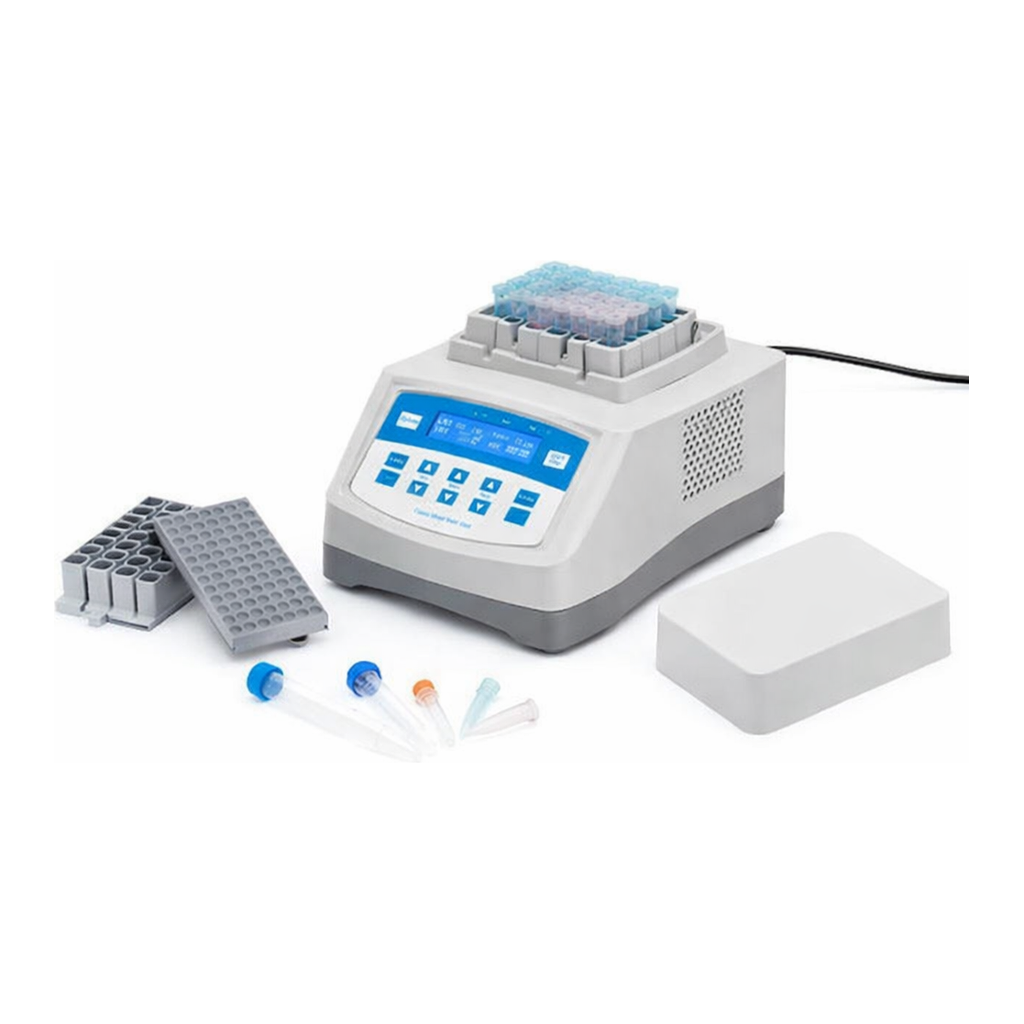

■ 용도 : 효소의 활성/비활성화, DNA 라이브러리, PCR 샘플 준비
(TCS10 의 경우, Ligation reaction 및 storing oocyte도 가능)
■ 자동 Mixing, Heating, Cooling 시스템
■ 속도, 시간, 온도의 실제값과 설정값이 LCD에 표시되어 편리한 제어 가능
■ 과열 제어 장치가 장착되어 오랜 시간동안 안전하게 사용할 수 있음
■ 내부에 추가적인 온도 유지 기능이 있어서 정밀하고 고른 온도분포를 나타냄
■ 다른 블록으로 쉽게 교체할 수 있는 Lifter 탑재
■ Brushless DC Motor 사용
■ CE 인증
■ LK Labkorea <
| Cat. No. |
Model |
Type |
| S04-480-101 |
LS-100O |
Mixing & Heating |
| S04-480-111 |
LS-200O |
Mixing, Heating＆Cooling |
| Cat. No. |
|
S04-480-101 |
S04-480-111 |
| Model |
|
LS-100O |
LS-200O |
| --- |
--- |
--- |
--- |
| Type of movement |
|
Mixing & Heating |
Mixing, Heating＆Cooling |
| --- |
--- |
--- |
--- |
| Speed Range |
|
200 ~ 1800 rpm |
200 ~ 1500 rpm |
| --- |
--- |
--- |
--- |
| Display Accuracy |
|
0.1 ℃ |
|
| --- |
--- |
--- |
--- |
| Temperature |
Range |
RT +5 ~ 100℃ |
RT -20 ~ 100℃ |
| --- |
--- |
--- |
--- |
| Accuracy |
±0.3 ℃ |
|
|
| --- |
--- |
--- |
--- |
| Uniformity |
±0.3 ℃ |
|
|
| --- |
--- |
--- |
--- |
| Heating Time |
|
≤12 min (from 25℃ to 100℃) |
≤15 min (from 25℃ to 100℃) |
| --- |
--- |
--- |
--- |
| Cooling Time |
|
- |
≤10 min (from 100℃ to 25℃)
≤15 min (up to RT -20℃) |
| --- |
--- |
--- |
--- |
| Orbit |
|
3 mm |
|
| --- |
--- |
--- |
--- |
| Operating Mode |
|
Timer and Continuous Operation |
|
| --- |
--- |
--- |
--- |
| Timer |
|
1 min ~ 99h 59min |
|
| --- |
--- |
--- |
--- |
| Size |
|
w195×d260×h150 mm |
|
| --- |
--- |
--- |
--- |
| Power |
|
110~220 V, 50/60 Hz, 150 W |
|
Optional Accessory
| Cat. No |
Model |
Max. Speed |
Description |
| S04-480-901 |
LS-30 |
1800 rpm |
Attachment for 96×0.2 ml tube |
| S04-480-904 |
LS-31 |
Attachment for 54×0.5 ml tube |
|
| S04-480-907 |
LS-32 |
Attachment for 35×1.5 ml tube |
|
| S04-480-910 |
LS-33 |
Attachment for 35×2.0 ml tube |
|
| S04-480-913 |
LS-34 |
Attachment for 15×0.5 ml + 20×1.5 ml tube |
|
| S04-480-916 |
LS-35 |
Attachment for 96×0.2 ml Elisa Plate |
|
| S04-480-919 |
LS-36 |
1000 rpm |
Attachment for 24×5 ml tube |
| S04-480-922 |
LS-37 |
Attachment for 15×10 ml tube |
|
| S04-480-925 |
LS-38 |
Attachment for 12×15 ml tube |
|
| S04-480-928 |
LS-39 |
Attachment for 6×50 ml, round tube |
|
| S04-480-931 |
LS-39S |
800 rpm |
Attachment for 6×50 ml, conical tube |
